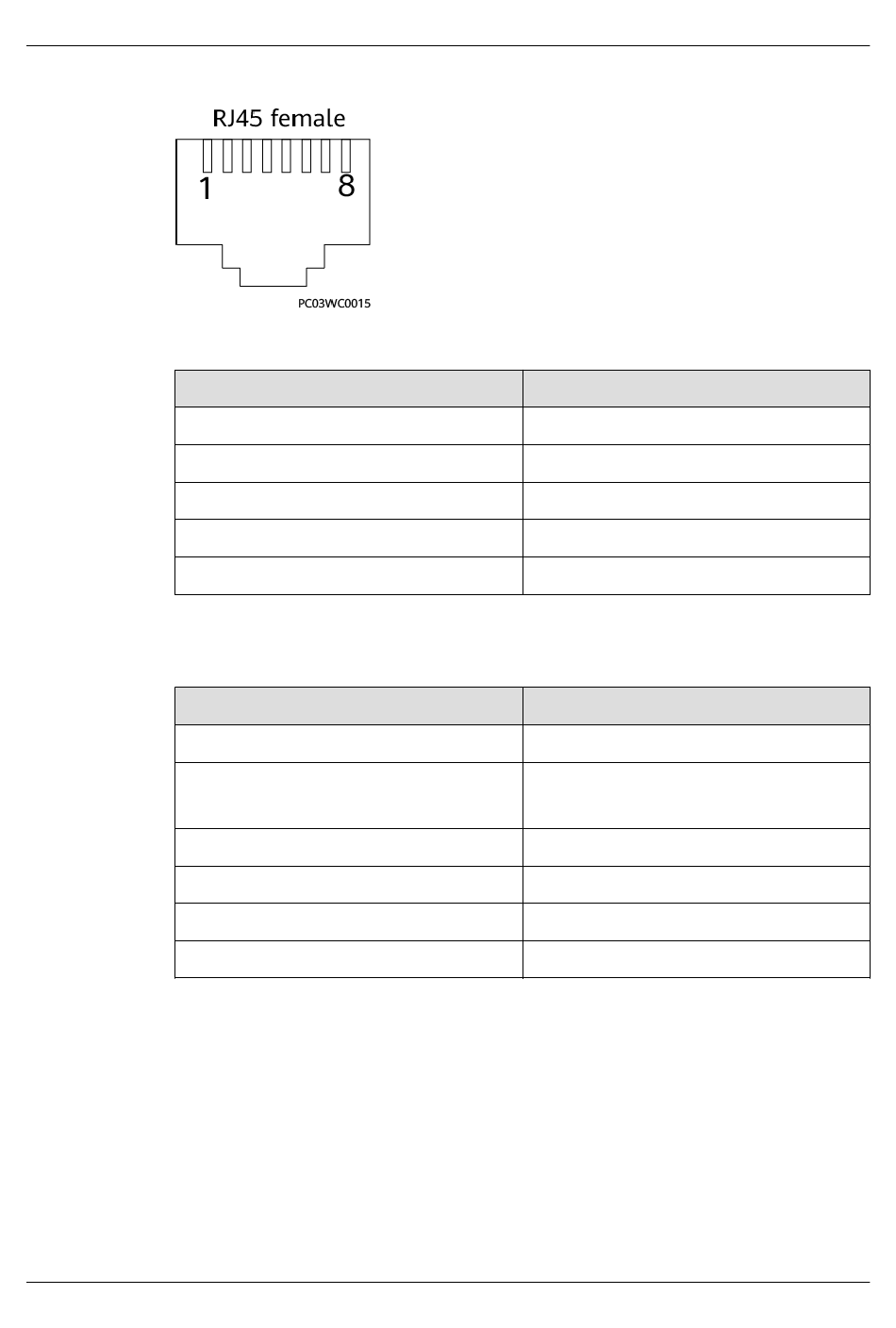

Figure 3-40 RJ45 port pins
Table 3-44 RJ45 port pin definitions
Pin
Pin1 or Pin 4
Pin2 or Pin 5
Pin3
Pin6
Pin7
Table 3-45 T/H sensor specifications
Item
Temperature measuring range
Temperature accuracy
Operating temperature
Operating voltage
Storage temperature
Output

3.4.3.8.6 Smoke Detector

A smoke detector detects smoke around cabinets.
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd.
3 System Architecture
Description
A
B
V+
V-
Reserved
Specifications
–20°C to +80°C
±0.5°C (25°C)
≤ ±1°C (full measuring range)
–20°C to +80°C
9–16 V DC
–40°C to +80°C
Two RJ45 ports, bidirectional cascading
