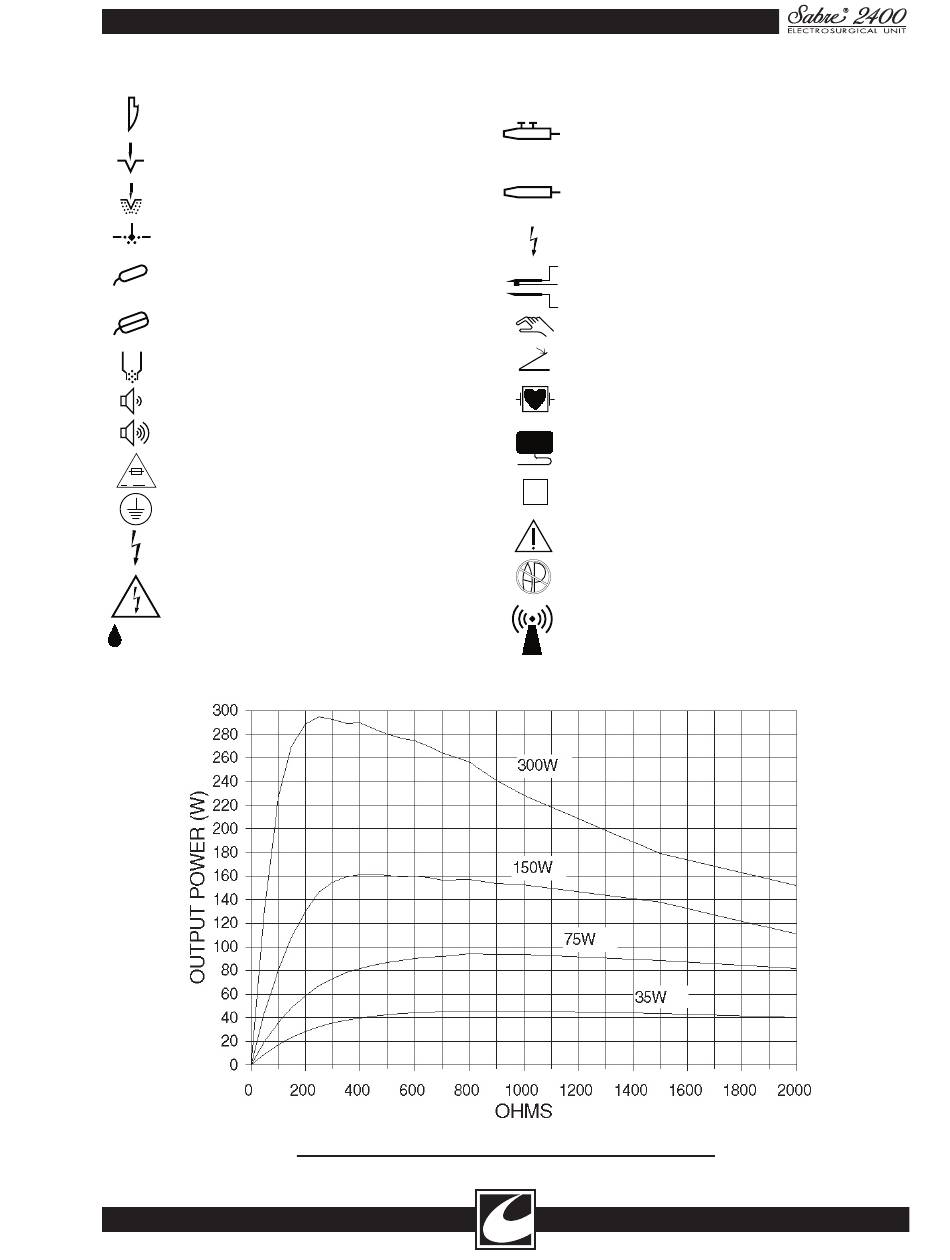

1.3 EXPLANATION OF SYMBOLS
CUT
PURE CUT WAVEFORM WITH MINIMUM
THERMAL DAMAGE AND HEMOSTASIS
BLEND CUT WAVEFORM WITH
HEMOSTASIS
STANDARD MONOPOLAR COAGULATION
SINGLE FOIL-USED WITH ELECTRODES
THAT DO NOT MONITOR CONTACT
QUALITY
DUAL FOIL-SETS MONITOR TO USE
ELECTRODES THAT DO MONITOR
CONTACT QUALITY
BIPOLAR COAGULATION
DECREASE VOLUME SETTING
INCREASE VOLUME SETTING
REPLACE FUSE ONLY WITH
TYPE AND RATING AS SHOWN
A V
PROTECTIVE EARTH
(INLET CONNECTOR)
HIGH VOLTAGE CIRCUITRY
CAUTION - HIGH VOLTAGE INSIDE
REFER SERVICING TO QUALIFIED
PERSONNEL
ENCLOSURE RESISTS ENTRY OF
IPX1
VERTICALLY FALLING WATER
Figure 1.1 Pure Cut Load Regulation
HANDSWITCHED OUTPUT-CONNECTION
FOR HANDSWITCHED MONOPOLAR
ACCESSORIES
FOOTSWITCHED OUTPUT-CONNECTION
FOR FOOTSWITCHED MONOPOLAR
ACCESSORIES
HIGH VOLTAGE OUTPUTS
BIPOLAR OUTPUT-CONNECTION FOR
BIPOLAR ACCESSORIES
HANDSWITCHED BIPOLAR OUTPUT
FOOTSWITCHED BIPOLAR OUTPUT
TYPE CF-PATIENT CONNECTIONS
ARE ISOLATED FROM EARTH AND RESIST
THE EFFECTS OF DEFIBRILLATOR DISCHARGE
RETURN ELECTRODE-CONNECTION FOR
MONOPOLAR DISPERSIVE ELECTRODE
RF ISOLATED-PATIENT CONNECTIONS
F
ARE ISOLATED FROM EARTH AT
HIGH FREQUENCY
CONSULT ACCOMPANYING DOCUMENTS
PRIOR TO PLACING EQUIPMENT IN SERVICE
EXPLOSION RISK IF USED WITH
FLAMMABLE ANESTHETICS
THIS EQUIPMENT INTENTIONALLY SUPPLIES
NON-IONIZING RF ENERGY FOR
PHYSIOLOGICAL EFFECT.
R
