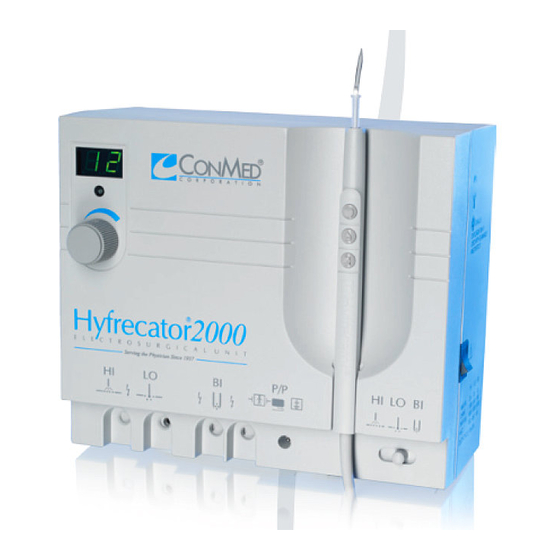

- Page 1 Operator’s Manual 2000 Serving the Physician Since 1937...
- Page 2 For Technical Services or Return Authorization Phone: 303-699-7600 / 1-800-552-0138 Extension 5274 Fax 303-699-9854 For Customer Services or to order parts phone: 1-800-448-6506 / 315-797-8375 / Fax 315-735-6235 or contact your CONMED Representative. European Authorized Representative MDSS GmbH Burckhardtstr 1 D - 30163 Hannover...
- Page 3 REVISION LEVEL: C CO NO.: 10484 DATE: 08/10/2007 EFFECTIVITY: All units DESCRIPTION: Make the following changes to the Hyfrecator 2000 Operator Manual (English): Changed corporate address shown on inside front cover. • WAS: …310 Broad St. Utica, New York 13501…...
- Page 4 MANUAL ERRATA MODEL: Hyfrecator 2000 MANUAL P/N: 7-900-OM-ENG REVISION LEVEL: B ECN NO.: 8431 DATE: 7/21/04 EFFECTIVITY: All units. NOTE: This errata supercedes errata revision A, previously released. DESCRIPTION: Pages 17 - 18, Section 9 - Maintenance; subsection “Sterilization of Accessories” is...
-
Page 5: Table Of Contents
2000 Table of Contents Section Title Page Introduction ............1 Inspection . - Page 6 2000 This page intentionally left blank.
-
Page 7: Introduction
In addition, please compare the accessories you receive with the standard accessories listed below. If an item is missing, please notify your CONMED Distributor. To activate your warranty, return the enclosed warranty card to CONMED Corporation within 10 days of receipt of your invoice. - Page 8 2000 Electrosurgery should NEVER be performed in the presence of flammable anesthetics, flammable prep solutions or drapes, oxidizing gases such as Nitrous Oxide (N 2 O), or in oxygen-enriched environments. The risk of igniting flammable gases or other materials is inherent in electrosurgery and cannot be eliminated by device design.
- Page 9 2000 Failure of the unit could result in an unintended increase of output power. When used, the neutral electrode (patient plate) should be reliably attached with the entire surface area in contact with the patient’s body and as close to the operating field as possible. When not in use, the neutral electrode should be disconnected from the Hyfrecator®...
-
Page 10: Operating Controls And Indicators
2000 Section 3 - Operating Controls and Indicators Figure 1: Front, Side and Bottom Panel Controls HAND-CONTROL SETUP BIPOLAR SETUP FOOT-CONTROL SETUP... - Page 11 2000 Front, Side and Bottom Panel Controls 1. ON/OFF SWITCH Turns unit on or off. When the Hyfrecator® 2000 is turned on, the unit automatically “powers up” to the setting last used. 2. POWER ACTIVATION BUTTON When pressed, high frequency energy is emitted from the electrode. Additionally, an audible tone is generated and the active “on”...
-
Page 12: Back Panel Controls
2000 Figure 2: Back Panel Controls 15. POWER DOWN BUTTON Press this button to decrease the power setting for the selected mode. 16. RELEASE BUTTON To remove an accessory switching connector, press this button to release the accessory, then pull the connector straight away from the unit. -
Page 13: Operation Of Your Instrument
Section 4 - Operation of Your Instrument 1. The Hyfrecator 2000® should be mounted vertically with at least 2" (5cm) clearance around the top and sides of the unit. Approximately 5" (13cm) should be allowed at the bottom of the unit for access to the accessory connections. -
Page 14: Terminology For Systems Configuration
A training tape covering basic dermatological procedures utilizing the HYFRECATOR® 2000 is included with the unit. Additional copies are available from your Authorized CONMED Distributor (Cat. No. 7-900-21). Section 6 - Terminology for Systems Configuration Monoterminal (monopolar) without Dispersive Plate The vast majority of HYFRECATOR®... -
Page 15: Monoterminal With Dispersive Plate Configuration
2000 Monoterminal (Monopolar) with Dispersive Plate Monoterminal applications with a dispersive plate (See Figure 4) are less common than monoterminal applications without a dispersive plate. Here, the high-frequency current starts from either the high or low output terminals, then travels through an electrode to your patient, where it exits through the dispersive patient plate and returns directly to the unit. -
Page 16: Terminology For Procedural Configuration
2000 Section 7 - Terminology for Procedural Configuration Desiccation Desiccation comes from the Latin word “desiccare”, meaning to dry. It is a monoterminal without a dispersive plate technique. The electrode either touches, or is inserted into the tissue. The current evaporates the cellular fluids, blanching the area treated (see Figure 6). -
Page 17: Fulguration
2000 Fulguration Fulguration comes from the Latin word “fulgur”, meaning an act of lightning. It is a monoterminal without a dispersive plate technique where the electrode is held slightly away from the surface being treated (see figure 8), resulting in sparking to the surface. When delicately fulgurating, you must precisely position the point of the active electrode close to the area being treated or the electrical arc may divert to adjacent tissue areas. -
Page 18: Applications
2000 • Application - The two types of coagulation have different effects on tissue. In the first case, the dispersive patient plate deeply draws the current into the tissue. The current efficiently flows through the patient back to the HYFRECATOR® 2000 producing heavy dehydration at the electrode site. Conversely, the use of bipolar forceps during bipolar coagulation produces the least tissue damage with the current remaining on the surface as it flows from one tine to the other. - Page 19 2000 • Lymphangioma: These uncommon tumors may respond to electrodesiccation or fulguration. • Molluscum Contagiosum: These viral lesions resolve quickly with electrodesiccation. • Pyogenic Granuloma: This loose vascular tissue responds well to electrofulguration. • Seborrheic Keratoses: These are perhaps the most common and most cosmetically annoying skin tumors in adults.
- Page 20 2000 • Bowen’s Disease (Squamous Cell Carcinoma in Situ): These lesions respond to the same techniques for basal cell carcinomas. Since these lesions may extend further laterally than they clinically appear, anesthesia should extend one to two centimeters beyond the visible lesions. •...
- Page 21 2000 Dental and Oral Surgery • Apicoectomy: To prepare for an apicoectomy, insert a fine desiccating needle electrode (Cat. No. 705A) slightly beyond the apex of the tooth, then apply the desiccating current to the infected area. The resulting coagulation reduces capillary bleeding and minimizes the spread of infection during later root resection. •...
- Page 22 2000 Otolaryngology • Adenoid - Hypertrophied Remnants: Coagulate small areas under local anesthesia and repeat the process until the hypertrophied areas are completely destroyed. • Epistaxis: Electrodesiccation is very effective for hemostasis. Anesthetize the areas and carefully identify the vessels. Bring the electrode into direct contact with the ruptured arteriole and use a light current. Exercise care to avoid excessive tissue damage that could result in perforation of nasal septum.
-
Page 23: Maintenance
2000 Section 9 - Maintenance The HYFRECATOR® 2000 should be tested by qualified service personnel on a periodic basis. CONMED suggests examination of the unit at least every 12 months. NOTE: All internal service should be performed by qualified service personnel only. -
Page 24: Optional Accessories
2000 7-800-6 Footswitching Handpiece The reusable, autoclavable footswitching handpiece is steam sterilizable (see instructions below). This accessory requires the use of a footswitch (Cat. No. 7-900-4) to activate the HYFRECATOR® 2000. Also note that if a footswitch is utilized, a sterile disposable non-switching handpiece (Cat. No. 137657) and a reusable adapter (Cat. -
Page 25: Warranty
The warranty period for the CONMED HYFRECATOR® 2000 is twelve (12) months to the product’s original owner. NOTE: The warranty card must be returned by the original owner to CONMED within ten (10) days of receipt of the invoice. -
Page 26: In Case Of Difficulty
A “Return Authorization” (RA) number will be issued by CONMED Customer Service department upon request. To receive an RA number, please call (800) 552-0138 or 303-699-7600, extension 5274, or fax 303-699-9854. -
Page 27: Specifications
2000 Section 15 - Specifications PARAMETER CHARACTERISTICS Primary Power Requirements Model 7-900-100 100V± 10% 50/60 Hz 0.9 A Model 7-900-115 115V± 10% 50/60 Hz 0.8 A Model 7-900-220 220V± 10% 50/60 Hz 0.5 A Model 7-900-230 230-240V± 10% 50/60 Hz 0.5 A Dimension and Weight Depth: 4 inches (102 mm) -
Page 28: Symbols
2000 Section 16 - Symbols I / O Power On/Off CAUTION: To reduce the risk of an electric shock, do not remove the back cover of the instrument. Refer all servicing to qualified service personnel. CAUTION: Site is a source of high voltage. CAUTION: Before using instrument, read operating manual. -
Page 29: Index Of Reference Material
2000 Section 17 - Index of Reference Material 1. Clover, G.B. and Peutherer, J.F., “Herpes Simplex Virus Dispersal by Hyfrecator Electrodes,” British Journal of Dermatology, Dec., 1987, Vol 177, p. 627. 2. Sheretz, E. F. et al, “Transfer of Hepatitis B Virus by Contaminated Needle Electrodes after Electrodesiccation in Simulated Use,”... -
Page 30: Load Regulation Curves
2000 Figure 13: Load Regulation Curves HI Mode Load Regulation 35 W 18 W 1000 1500 2000 2500 3000 Ohms LO Mode Load Regulation 20 W 10 W 1000 1500 2000 2500 3000 Ohms BI Mode Load Regulation 35 W 18 W 1000 1500...
