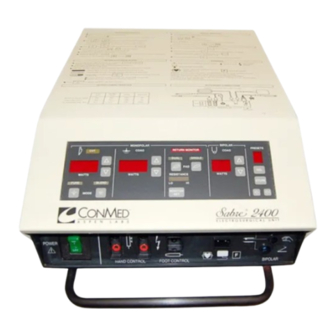

ConMed Sabre 2400 Preventive Maintenance

ConMed Sabre 2400 Preventive Maintenance

Electrosurgical unit pm
Hide thumbs Also See for Sabre 2400:

Advertisement

Quick Links

Conmed Sabre 2400 Electrosurgical Unit PM
Control Number _______________ Date Tested: ________________
PERIODIC VISUAL INSPECTION
The Sabre 2400 should be visually inspected at least every six months. This inspection should include checks for:
• Damage to the power cord or plug. Tightness of the power plug. PASS
• Proper mating and absence of damage to the patient connectors. PASS
• Obvious external or internal damage to the unit.
• Accumulation of lint or debris within the unit or heatsink.
• Control Panel punctures or dents
PERIODIC PERFORMANCE TEST
The Sabre 2400 should be performance tested at least every six months.
Chassis Ground Integrity
Connect the ohmmeter between the earth ground prong of the power plug and the footswitch connector.
Confirm less than 0.1 ohm resistance.
Perform the Output Power test indicated in the following table and record the actual
current measured, depending on power setting and the value of the load resistor used.
Mode
Power
Setting
Monopolar
Pure Cut
300 ohms
300
400 ohms
300
500 ohms
300
Blend Cut
300 ohms
180
400 ohms
180
500 ohms
180
Coag
300 ohms
120
400 ohms
120
500 ohms
120
Bipolar
50 ohms
50
100 ohms
50
125 ohms
50
Output Power Test Results: PASS
Output
Actual
Current (mA)
mA
949-1040
__-___
822-908
730-806
739-812
634-700
562-620
596-659
520-574
465-513
949-1040
592-653
514-567
FAIL
Tested by: _______________________
FAIL
FAIL
PASS
FAIL
PASS
FAIL
PASS
FAIL
PASS
FAIL
Power
Output
Setting
Current (mA)
150
671-741
150
619-684
150
564-623
90
520-574
90
489-539
90
449-496
60
417-461
60
368-406
60
329-363
25
671-741
25
425-469
25
360-397
Actual
mA
