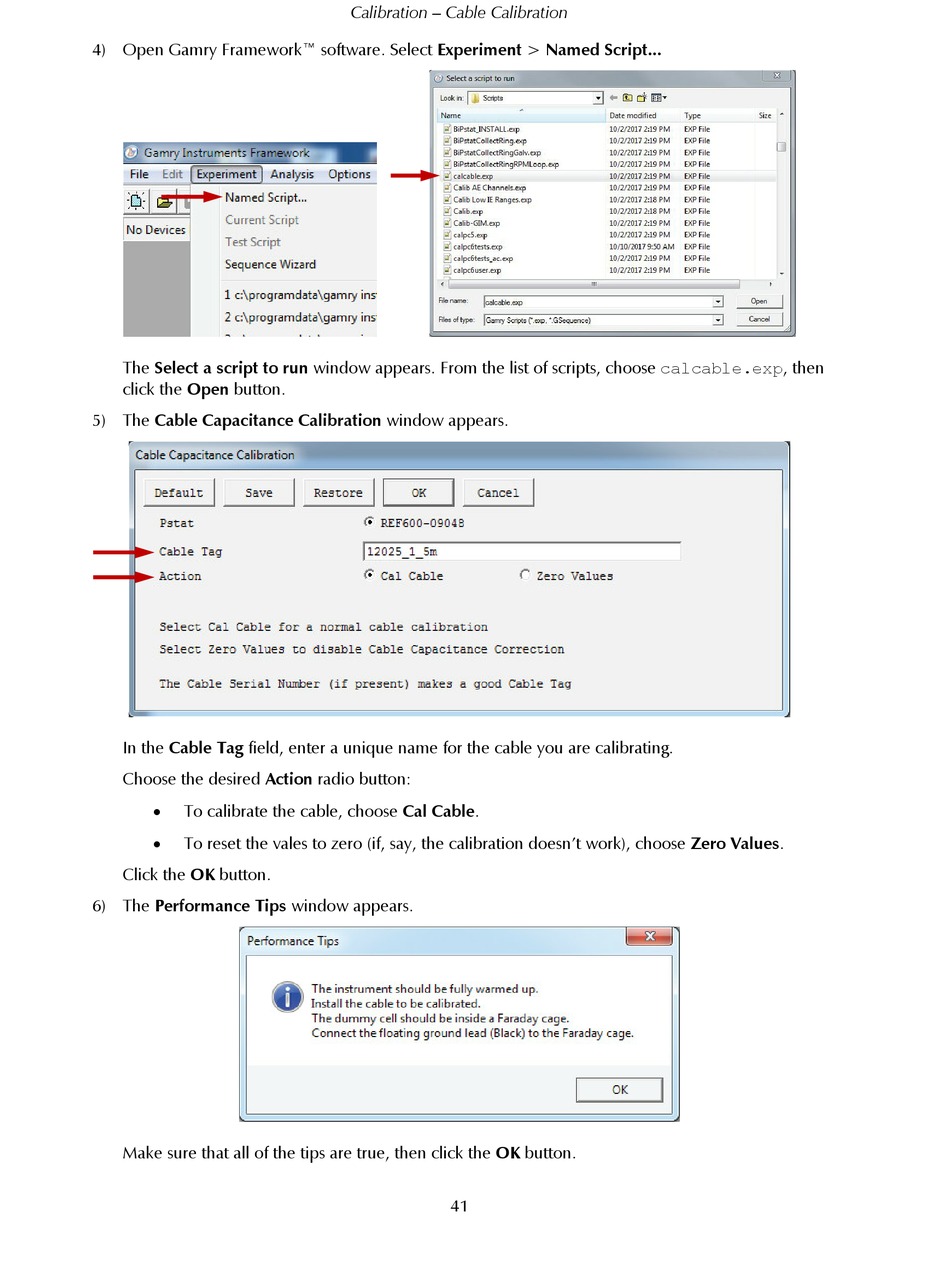

Gamry Instruments Reference 3000 Operator's Manual page 41

4) Open Gamry Framework™ software. Select Experiment > Named Script...
The Select a script to run window appears. From the list of scripts, choose calcable.exp, then
click the Open button.
5) The Cable Capacitance Calibration window appears.
In the Cable Tag field, enter a unique name for the cable you are calibrating.
Choose the desired Action radio button:
To calibrate the cable, choose Cal Cable.

To reset the vales to zero (if, say, the calibration doesn't work), choose Zero Values.

Click the OK button.
6) The Performance Tips window appears.
Make sure that all of the tips are true, then click the OK button.
Calibration – Cable Calibration
41
