Occlusion Pressure Range Test II
Description
An adjustable metered pressure source is connected to the Medication
Cassette Reservoir tubing. The pressure is slowly increased until the high
pressure alarm sounds.
Equipment needed
Pressure gauge, 40 ± 1 psi [2.76 ± 0.07 bar]
Pressure vessel, partially filled with water
Pressure regulator, 40 psi [2.76 bar]
50 or 100 ml Medication Cassette Reservoir containing water
Procedure
1. Insert 2 AA batteries and wait for the pump to power up.
2. Attach a Medication Cassette Reservoir to the pump.
NOTE: The pressure from the source must be zero when the cassette
is attached.

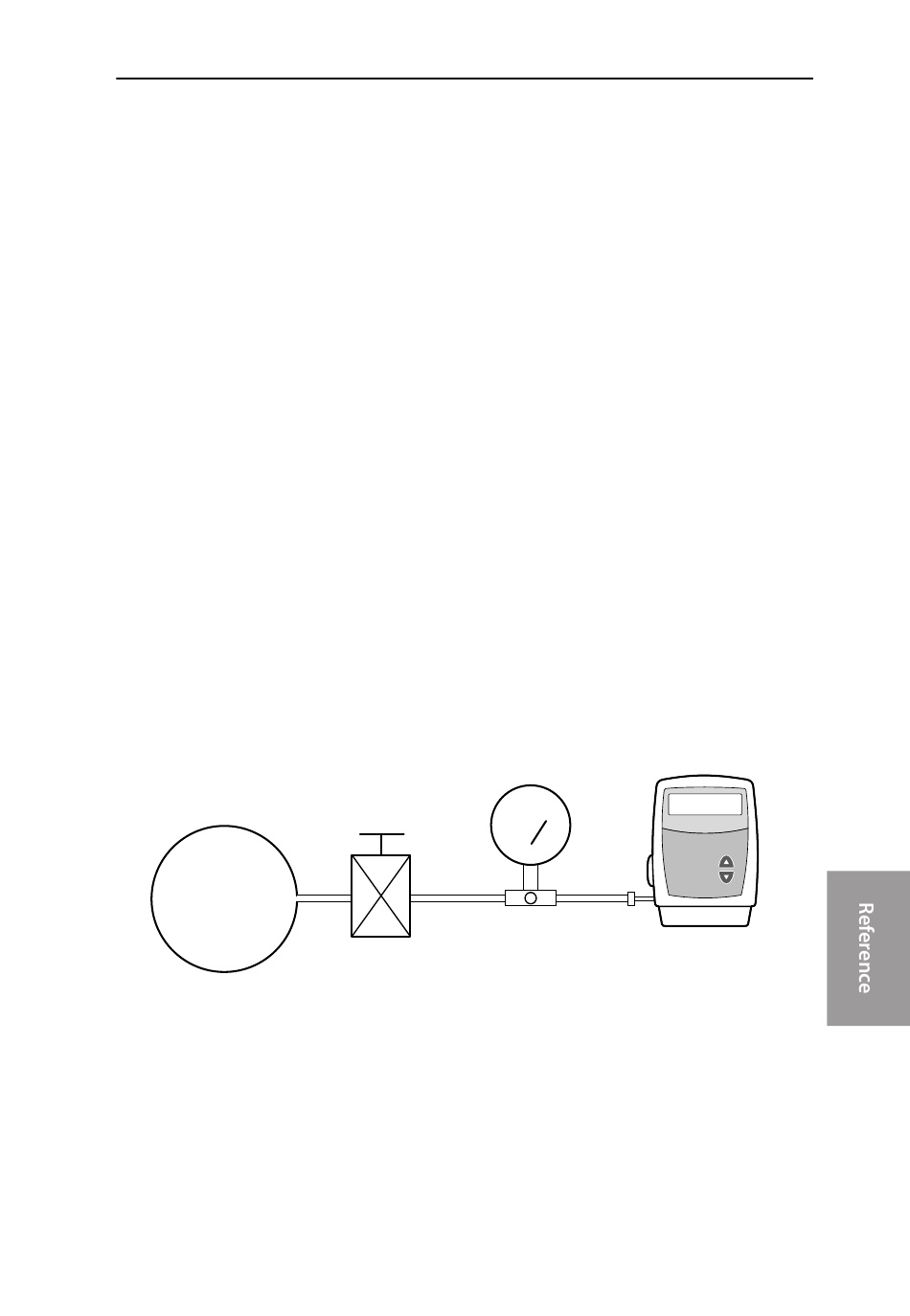

3. Assemble the apparatus as shown.
1999-01-23 D. Zurn
«Lgc Occlusion NoText»
0 PSI
[2.76 bar]
4. Connect the Medication Cassette Reservoir outlet tube to the me-
tered pressure source.
NOTE: Do not use a CADD™ Extension Set with Anti-Siphon Valve.
5. Start the pump and run at 50 ml/hr.
Regulator
Pressure Gauge
Section 5: Reference
