7-01-014

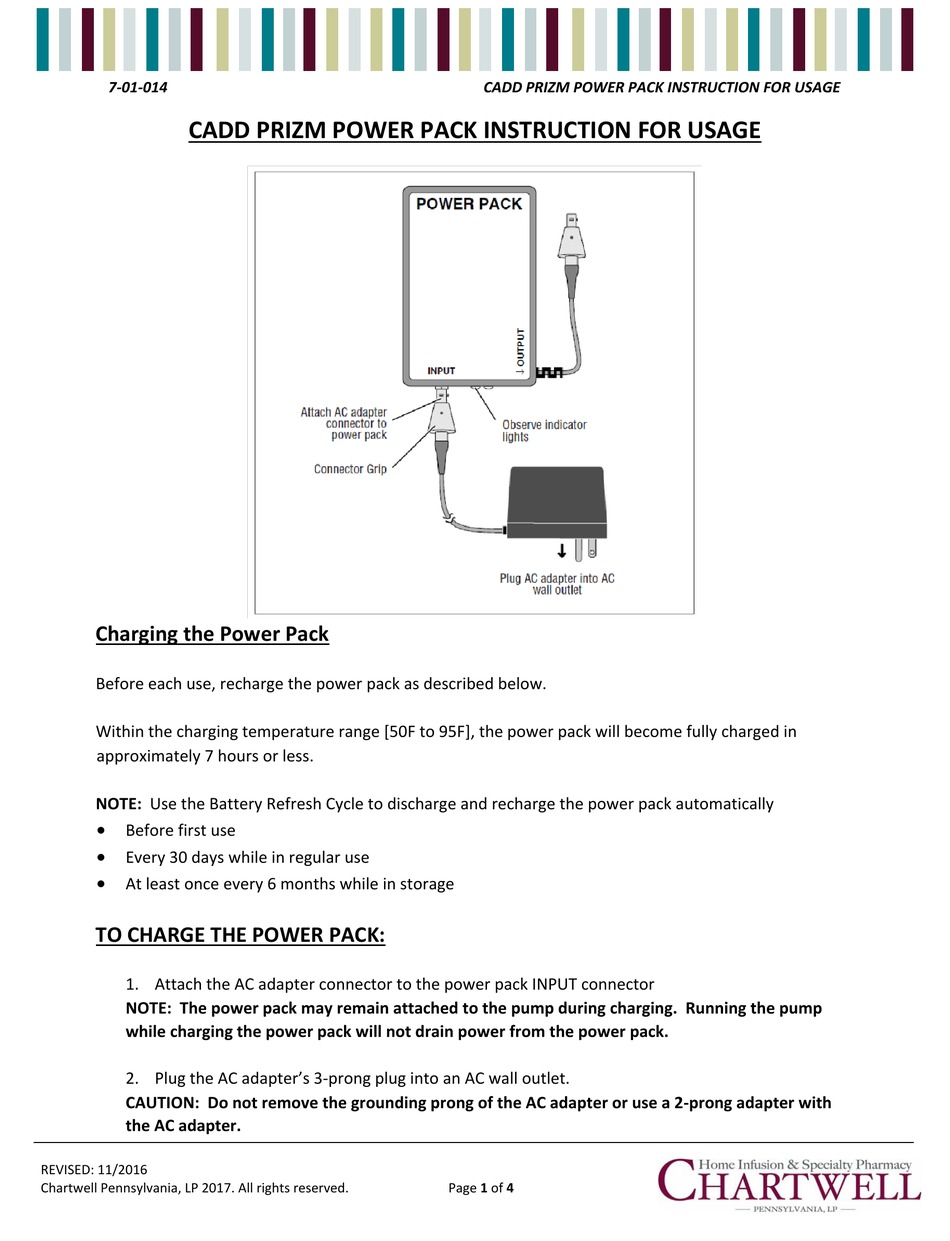

CADD PRIZM POWER PACK INSTRUCTION FOR USAGE
Charging the Power Pack
Before each use, recharge the power pack as described below.
Within the charging temperature range [50F to 95F], the power pack will become fully charged in
approximately 7 hours or less.
NOTE: Use the Battery Refresh Cycle to discharge and recharge the power pack automatically
Before first use
Every 30 days while in regular use
At least once every 6 months while in storage
TO CHARGE THE POWER PACK:
1. Attach the AC adapter connector to the power pack INPUT connector
NOTE: The power pack may remain attached to the pump during charging. Running the pump
while charging the power pack will not drain power from the power pack.
2. Plug the AC adapter's 3-prong plug into an AC wall outlet.
CAUTION: Do not remove the grounding prong of the AC adapter or use a 2-prong adapter with
the AC adapter.
REVISED: 11/2016
Chartwell Pennsylvania, LP 2017. All rights reserved.
CADD PRIZM POWER PACK INSTRUCTION FOR USAGE
Page 1 of 4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CADD Prizm
Summary of Contents for CADD Prizm
- Page 1 7-01-014 CADD PRIZM POWER PACK INSTRUCTION FOR USAGE CADD PRIZM POWER PACK INSTRUCTION FOR USAGE Charging the Power Pack Before each use, recharge the power pack as described below. Within the charging temperature range [50F to 95F], the power pack will become fully charged in approximately 7 hours or less.
- Page 2 Chart for more information about the indicator lights). Connecting the Power Pack to the CADD-Prizm ® Pump Before connecting the power pack to the CADD-Prizm® pump, make sure the pump contains a good 9-volt battery. 1. Open the Power jack cover on the side of the pump.
- Page 3 1. Watch for the message “Power Pack Good” on the pump’s display. Then you can continue programming or operating the pump. CAUTION: If the CADD-Prizm® pump is mounted on an IV pole, do not allow the power pack to hang as this may result in damage to the power pack.
- Page 4 7-01-014 CADD PRIZM POWER PACK INSTRUCTION FOR USAGE EPS System Troubleshooting Chart Problem Probable Cause Solution Power pack is beeping and Battery in the power pack has -Attach the AC adapter to the power pack and amber LED is flashing.
