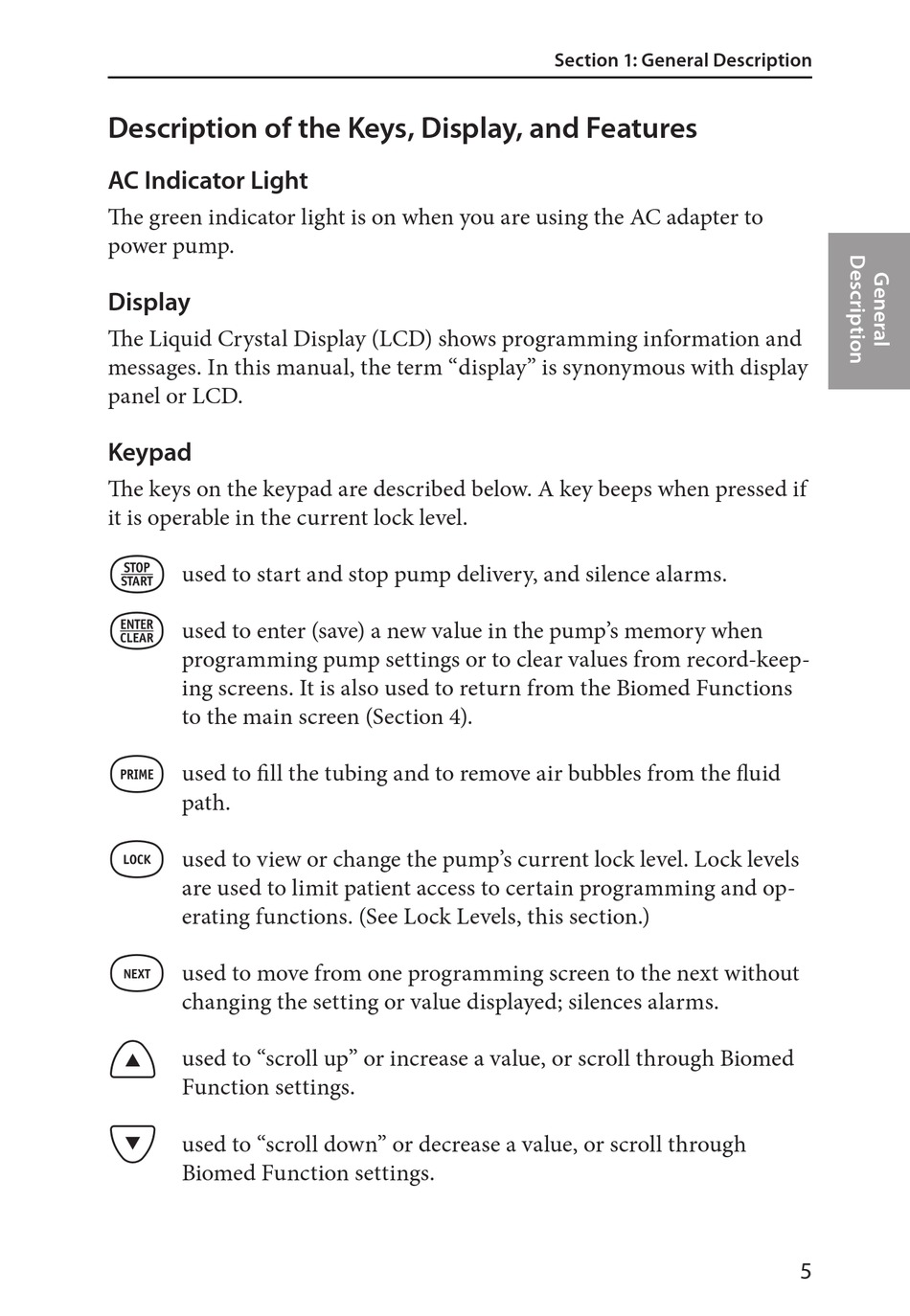

Description of the Keys, Display, and Features

AC Indicator Light
The green indicator light is on when you are using the AC adapter to
power pump.
Display
The Liquid Crystal Display (LCD) shows programming information and
messages. In this manual, the term "display" is synonymous with display
panel or LCD.
Keypad
The keys on the keypad are described below. A key beeps when pressed if
it is operable in the current lock level.
⁄
used to start and stop pump delivery, and silence alarms.
¤
used to enter (save) a new value in the pump's memory when
programming pump settings or to clear values from record-keep-
ing screens. It is also used to return from the Biomed Functions
to the main screen (Section 4).
‹
used to fill the tubing and to remove air bubbles from the fluid
path.
Œ
used to view or change the pump's current lock level. Lock levels
are used to limit patient access to certain programming and op-
erating functions. (See Lock Levels, this section.)
„
used to move from one programming screen to the next without
changing the setting or value displayed; silences alarms.
´
used to "scroll up" or increase a value, or scroll through Biomed
Function settings.
Î
used to "scroll down" or decrease a value, or scroll through
Biomed Function settings.
Section 1: General Description
