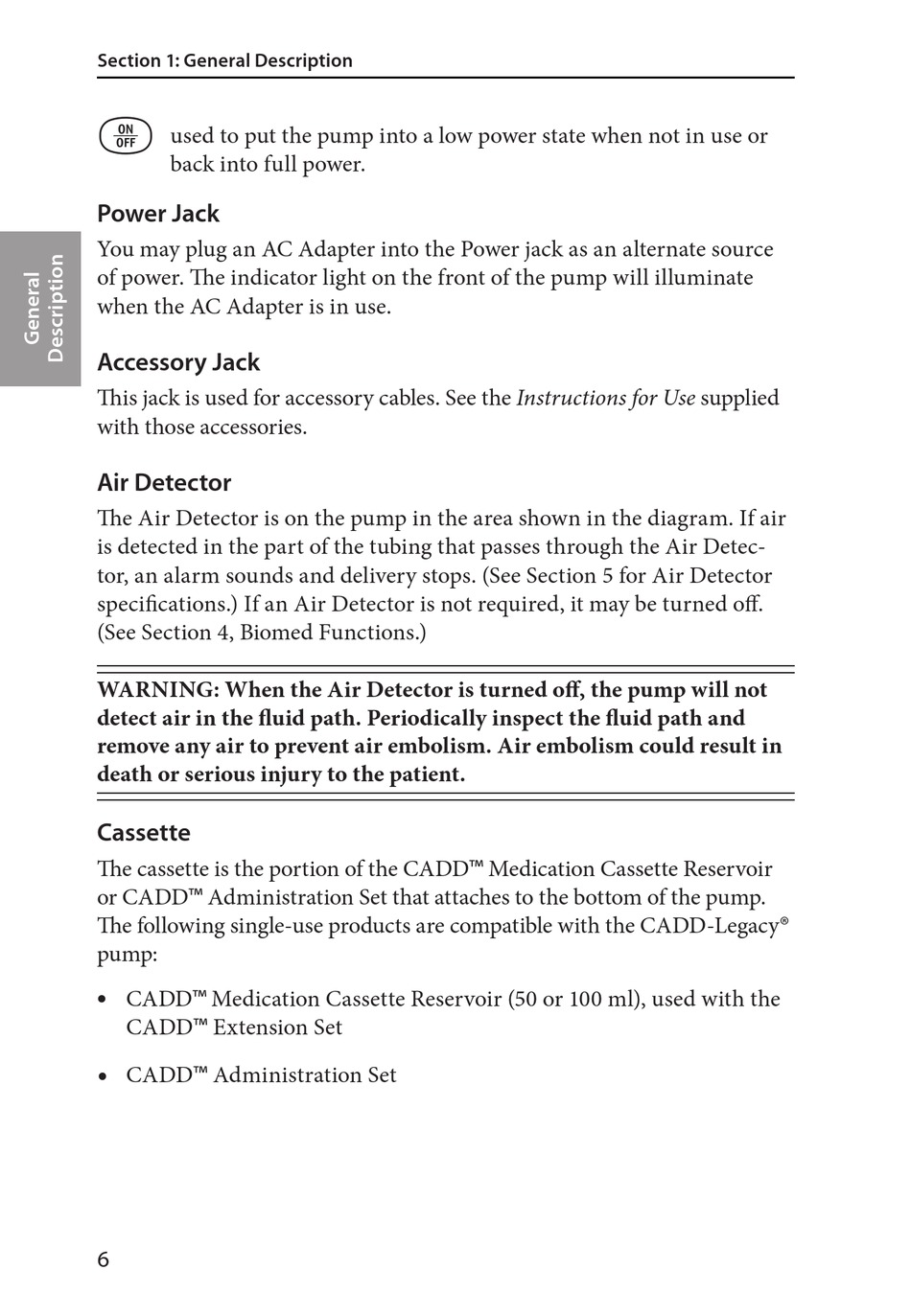

CADD Legacy Plus 6500 Operator's Manual page 16

Section 1: General Description
Å
used to put the pump into a low power state when not in use or
back into full power.
Power Jack
You may plug an AC Adapter into the Power jack as an alternate source
of power. The indicator light on the front of the pump will illuminate
when the AC Adapter is in use.
Accessory Jack
This jack is used for accessory cables. See the Instructions for Use supplied
with those accessories.
Air Detector
The Air Detector is on the pump in the area shown in the diagram. If air
is detected in the part of the tubing that passes through the Air Detec-
tor, an alarm sounds and delivery stops. (See Section 5 for Air Detector
specifications.) If an Air Detector is not required, it may be turned off.
(See Section 4, Biomed Functions.)
WARNING: When the Air Detector is turned off, the pump will not
detect air in the fluid path. Periodically inspect the fluid path and
remove any air to prevent air embolism. Air embolism could result in
death or serious injury to the patient.
Cassette
The cassette is the portion of the CADD™ Medication Cassette Reservoir
or CADD™ Administration Set that attaches to the bottom of the pump.
The following single-use products are compatible with the CADD-Legacy®
pump:
•
CADD™ Medication Cassette Reservoir (50 or 100 ml), used with the
CADD™ Extension Set
•
CADD™ Administration Set
