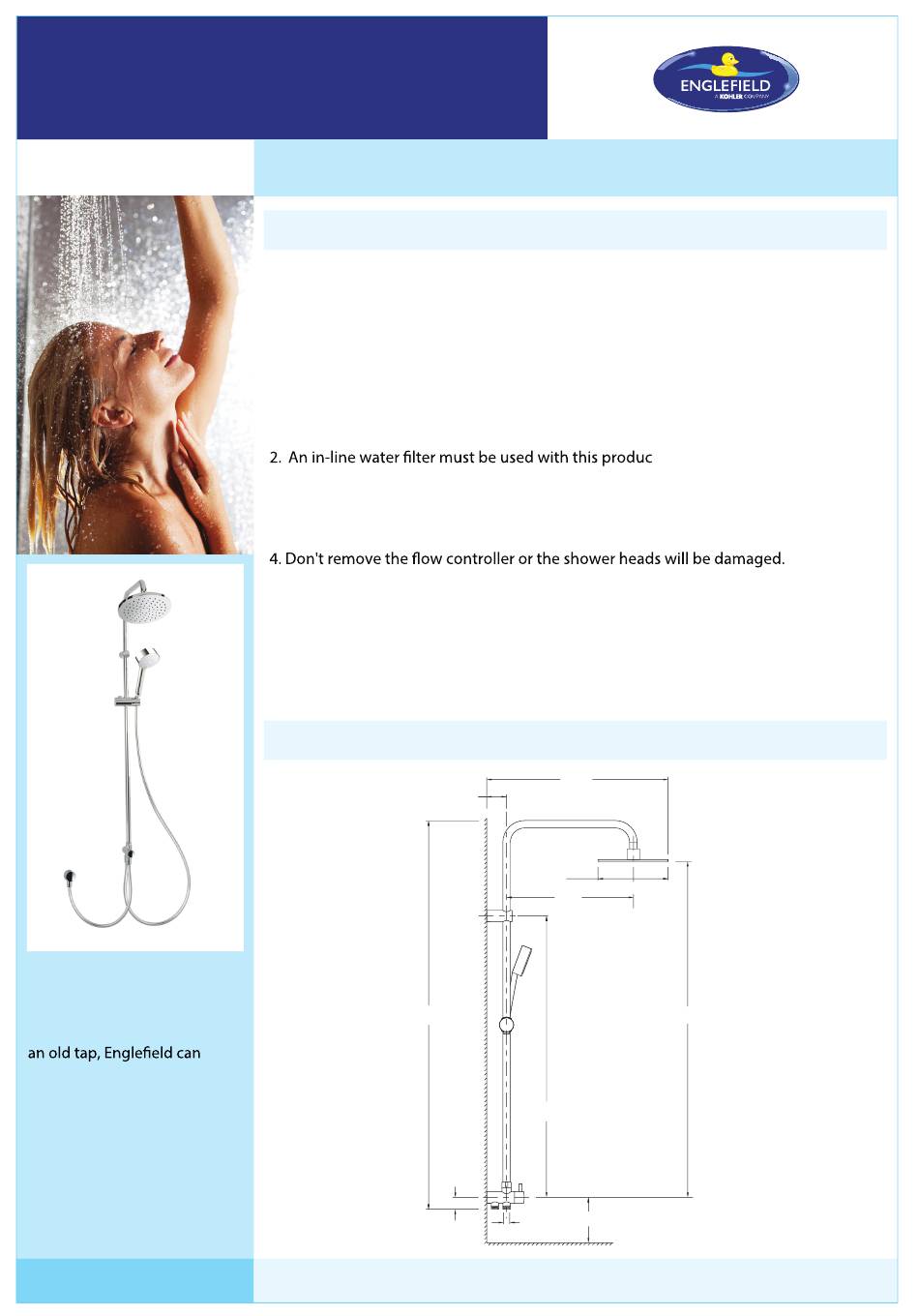

Englefield 5625A Installation Instructions

Installation
INSTRUCTIONS
TAPWARE
If you are building a
bathroom from scratch,
giving your bathroom a
makeover or just replacing
provide a solution for you.
1217518-A02-D 17/07/2014
STUDIO

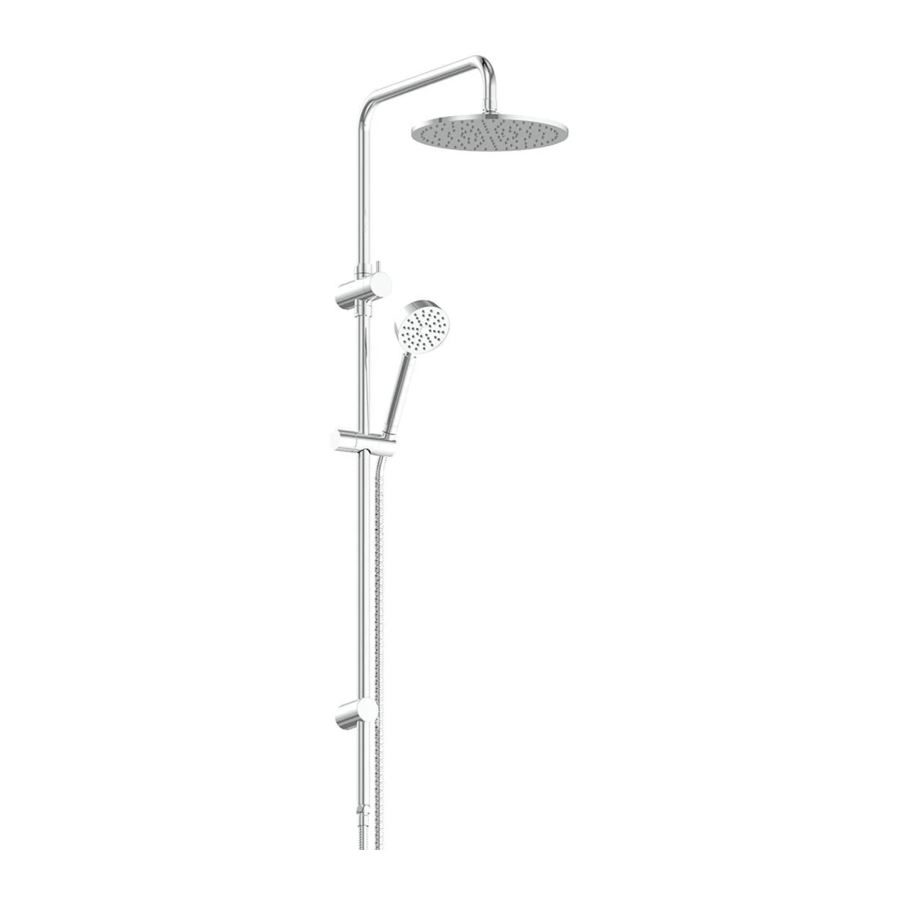

Dual Rain Shower

BEFORE YOU BEGIN

All information is based on the latest product information available at the time of
publication. Kohler Co. reserves the right to make changes in product character-
istics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
3. The highest working pressure for the shower heads is 0.5Mpa (5 bars). If it
exceeds 0.5Mpa(5 bars), a pressure reducer is needed. The highest water
and environment temperature is 60ºC. Please keep showerheads away from
any heater, or they may become damaged and cause injury to the user.
5. The mounting brackets and diverter must be mounted to stud framing
supports at all mounting locations. Do not use or depend on plastic wall
anchors to attach this Dual Rain Shower.
6. Observe local plumbing codes.
Recommended working pressure: 2 to 5 bars.
7.
All installations should comply with the relevant requirements of AS/NZS 3500
8.
and AS/NZS 6400.

ROUGH-IN

1144
501.5
55
193
350
850
33
1200 max
G1/2"
t.
1012
Recommended Height
to Finished Floor
Englefield
5625A
