INSTALLATION INSTRUCTIONS
Page 4 www.englefield.co.nz
INSTALLATION
INSTRUCTIONS
TAPWARE STUDIO
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of
publication. Kohler Co.reserves the right to make changes in product character-
istics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. An in line water filter must be used with this product.
3. The highest working pressure for the handspray is 0.5Mpa(5 bars). If it
exceeds 0.5Mpa(5 bars), a pressure reducer is needed. The highest water
and environment temperature is 60 C. Please keep the handspray away
from any heater, or it may become damaged and cause injury to the user.
4. Don't remove the flow controller or the hand shower will be damaged.
5. The slide bar must be mounted to stud framing supports at both the top and
bottom mounting locations.
attach the slide bar.
6. Observe local plumbing codes.
7. Recommended working pressure: 1 to 5 bars.
8. All installations should comply with the relevant requirements of AS/NZS 3500
and AS/NZS 6400.

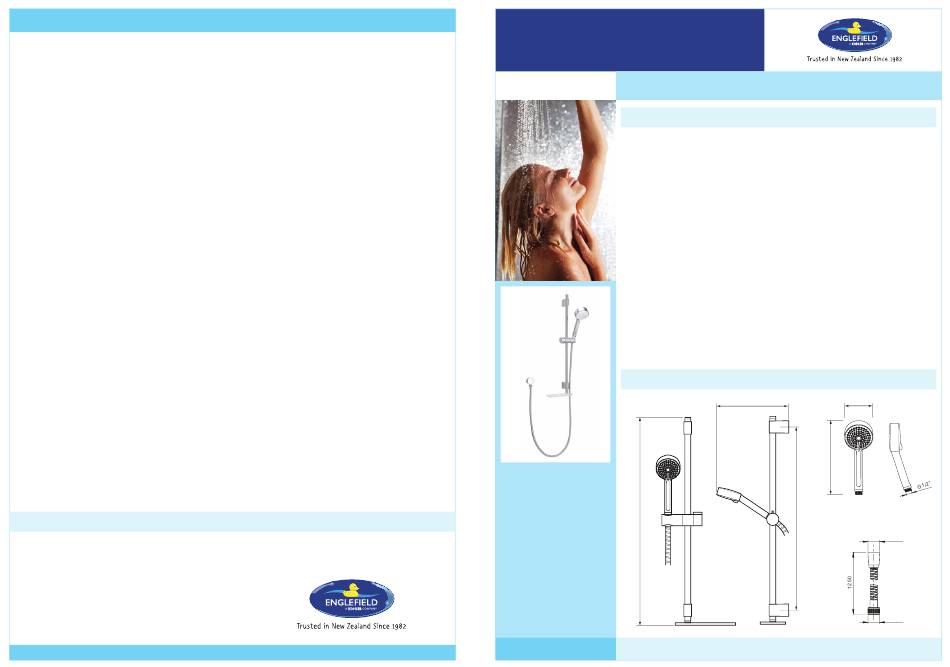

ROUGH-IN
If you are building a
bathroom from scratch,
giving your bathroom a
makeover or just replacing
an old tap, Englefield can
701
provide a solution for you.
1227802-A02-B 28/03/2014
Single function: 5622A-CP
Slide Shower
Multi function: 5623A-CP
Do not use or depend on plastic wall anchors to
265
89
230
620
G1/2"
G1/2"
