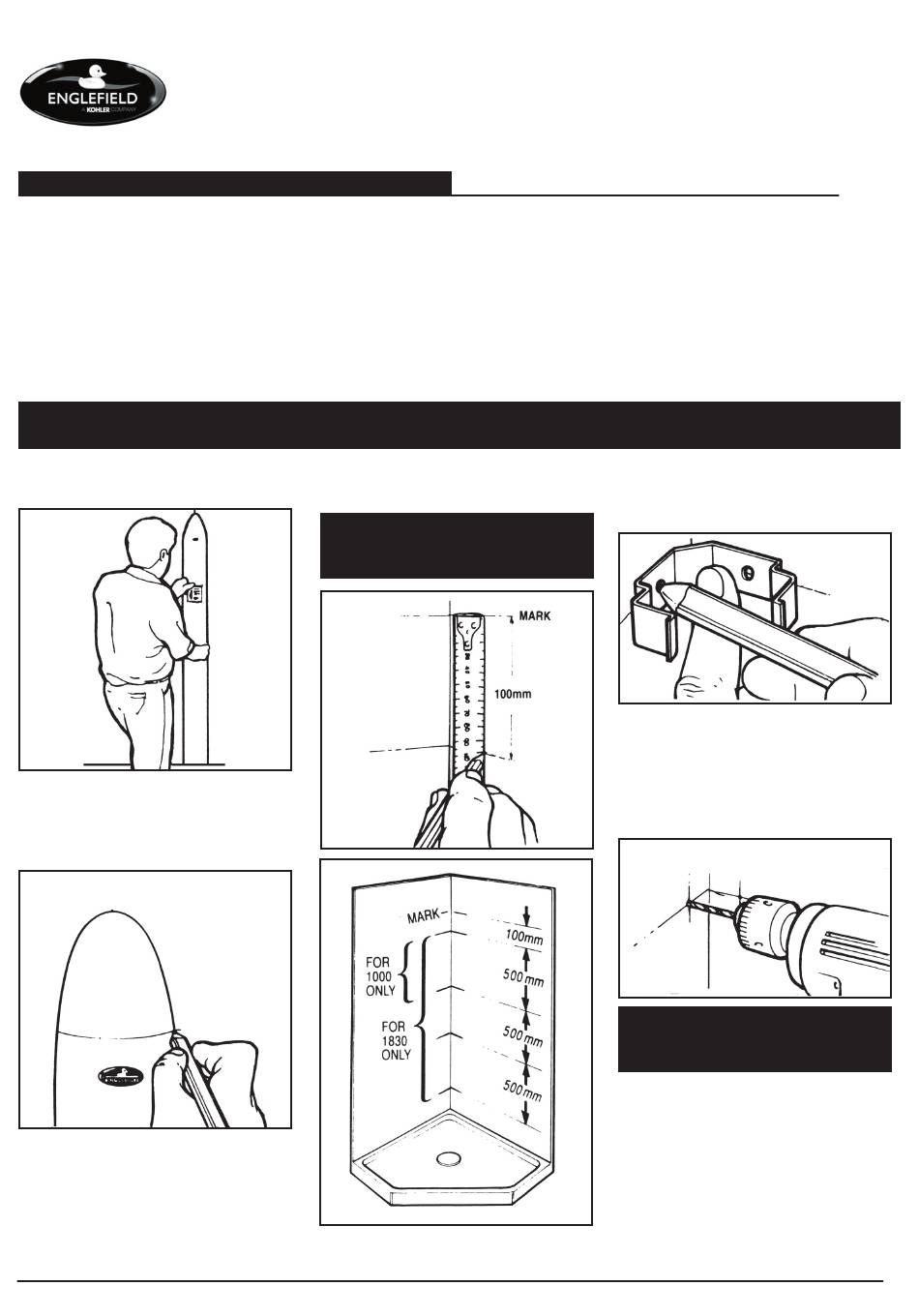

SHOWER TOWER 1830 & 1000
When fitting to a duracryl surround the shower tower must be installed immediately following installation of the
wall, and before adhesive cures. this will ensure an even line between the shower tower and the surround.
1
Position shower tower in corner.
2
With a soft pencil, mark join
between top cap and Shower-
Tower post. (Take care not to scratch
surface of shower wall.
V087040-G October 07
INSTALLATION GUIDE
3
From mark, measure down and
mark centre lines for clips.
For Shower Tower 1000 mark top two
centre lines only! Do not mark bottom
two centre lines
4
Align holes in clips with centre
lines and mark hole centres.
Ensure clip is firmly in corner.
5
Drill holes into wooden studs
with a 3mm drill bit. ( Use a
suitable masonry drill bit and suit-
able screw anchors for tiles. Use a
suitable cavity fixing where wooden
studs are located.
IMPORTANT
ONLY DRILL 4 HOLES FOR SHOWER
TOWER 1000
