Englefield VALENCIA ELITE Installation Instructions Manual
Pivot door & side panel
Hide thumbs
Also See for VALENCIA ELITE:
- Installation instructions manual (19 pages) ,
- Installation instructions manual (14 pages) ,
- Installation instructions manual (16 pages)
Related Manuals for Englefield VALENCIA ELITE
Summary of Contents for Englefield VALENCIA ELITE

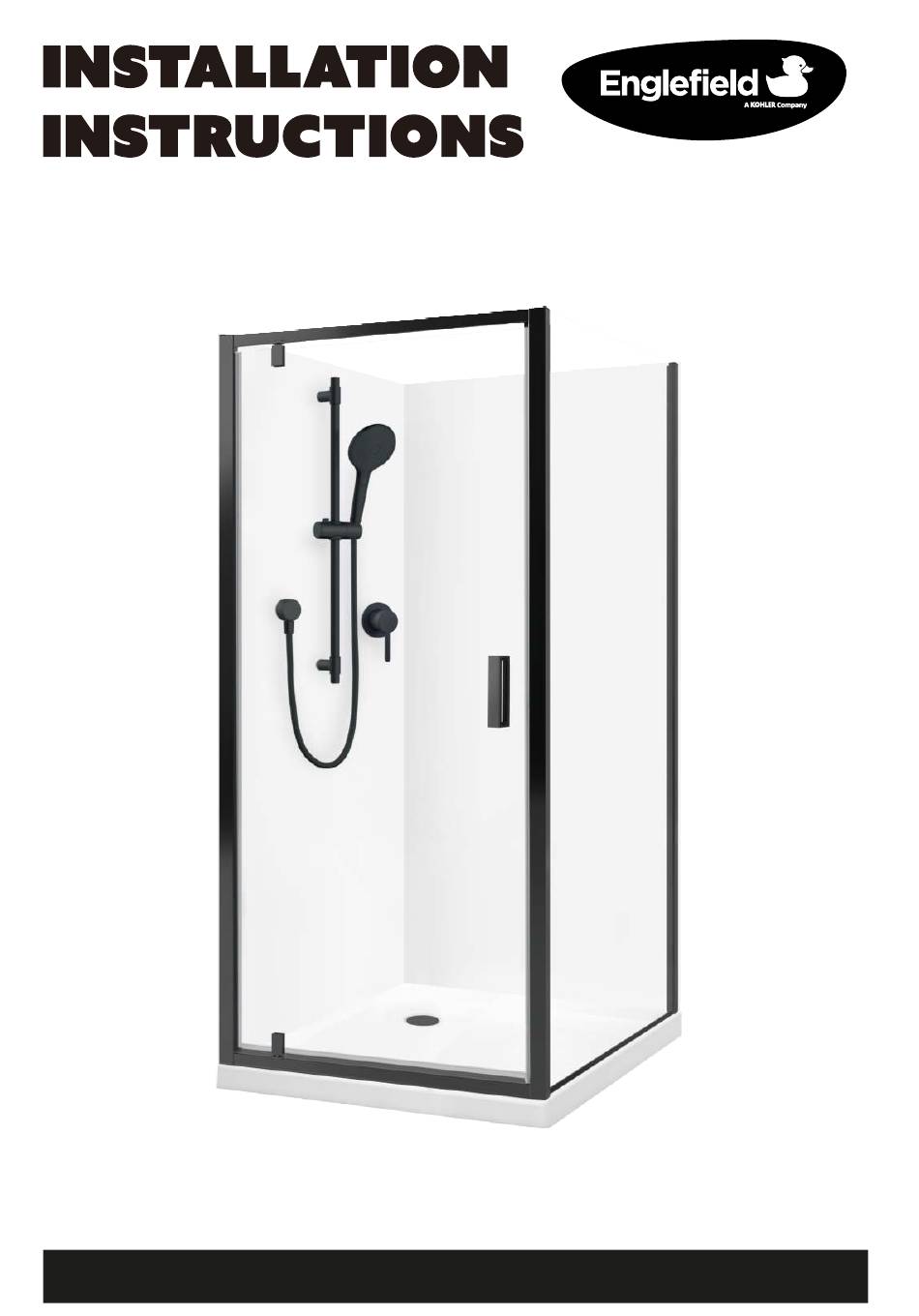

- Page 1 SHOWER VALENCIA ELITE Pivot Door & Side Panel Note: Tapware and accessories not included. englefield.co.nz 1345090-A02-G October 2023...
-
Page 2: Before You Begin
+/- 4mm/m. ® 2. Please install this door onto an ENGLEFIELD Quick - Fit shower tray only, unless installing directly onto tiled walls and floor. 3. Care must be taken when drilling into walls and floors to avoid any hidden pipes or wires. -
Page 3: Tools And Materials Required
VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS TOOLS AND MATERIALS REQUIRED Square Drive 3.0 mm PARTS IDENTIFICATION Handle Kit 1 x Seal Pack 1 x Side Panel 2 x Corner Covers 1 x Handle Assembly... -
Page 4: Construction Requirements
VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS CONSTRUCTION REQUIREMENTS ATTENTION Due to the weight of the glass panels Englefield strongly recommends constructing double studs (as below) to fix the wall retainers to. Size Dim ‘A’ Dim ‘B’ Size Dim ‘A’... -
Page 5: Installation Options
VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS INSTALLATION - Options OPTION 1 - Acrylic Wall & Tray Tray: For tray installation refer to the instructions supplied with the tray. Wall: For wall installation refer to the instructions supplied with the wall. -
Page 6: Installation
VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS INSTALLATION Caution: Ensure tray or tiled floor is level & walls are vertical & square. ± 0 mm ± 0 mm Cover the waste to prevent the loss of Tip: small parts. If installing onto a tray protect the tray surface during installation. - Page 7 VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS 3 mm 10 mm (15mm on QFT) Position the wall channels on the wall. The flange with pre-drilled holes should face inside the shower enclosure. Using a level, make sure that the channel is upright.
- Page 8 VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS (e) Corner Assembly Wall channel adjustment Side Panel Pivot Door ( ) f 2.0 mm (a) The pivot door can be either Left-Hand or Right-Hand. To change the opening, simply rotate the frame through 180º before continuing with the installation.
- Page 9 VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS Ø 3 mm Wall channel cover assembly From the inside of the enclosure, drill four holes in the door frame through the centre marked points on the wall channel with a 3 mm HSS drill bit (not supplied).
- Page 10 VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS Vertical Door Se al 750 DOORS 00 DOORS 1000 DOORS [for 1200 doors see page 10] Full length Full length Door Seal Door Seal 200mm up 200mm up Both ends of...
- Page 11 VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS Fixed panel 1200 DOORS Vertical Seal [for 750, 900,1000 doors see page 9] Full length Full length 200mm up 200mm up Door Seal Both ends of side panel bottom strip Full length...
-
Page 12: Spare Parts
VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS SPARE PARTS Wall Finishing Strip Scan the QR barcode on the packaging 1315530-** or underside of top caps to identify product SKU and date of manufacture. Retainer Clip 1278349 Glass Aftercare Kit... -
Page 13: Cleaning And Maintenance Instructions
VALENCIA ELITE Pivot Door and Side Panel INSTALLATION INSTRUCTIONS Assembly Screws Cover Caps Top Cap Top Caps Screw Spacer Side Panel Fittings Kit 1348297-** Side Panel Bottom Strip 750mm 1393098-** Side Panel Bottom Strip 900mm 1348296-** Side Panel Bottom Strip 1000mm 1365845-** ** Colour code must be specified when ordering.
