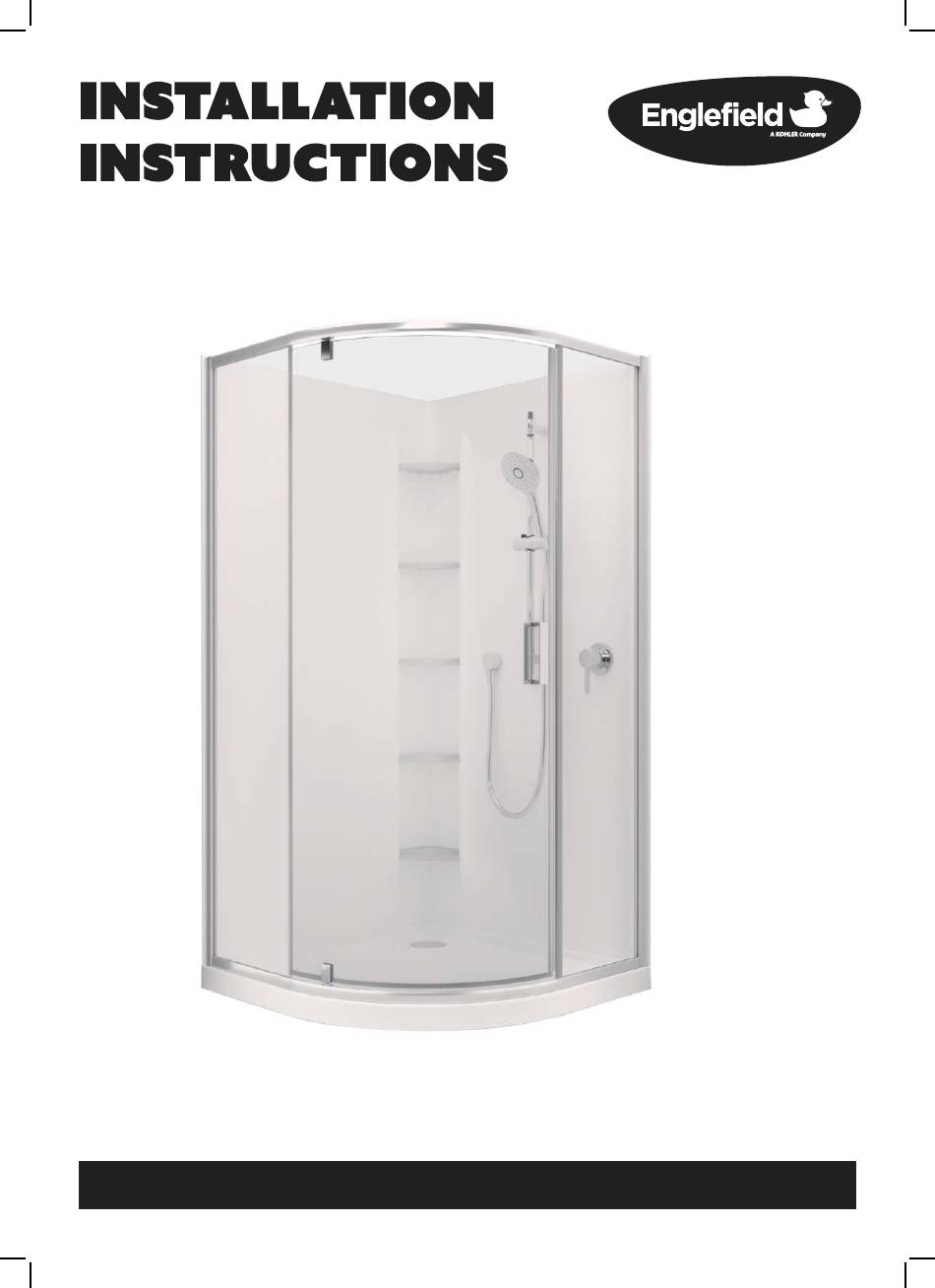

- Page 1 SHOWER | VALENCIA ELITE Round Pivot Note: Tapware and accessories not included. 1371378-A02-H October 2023 www.englefield.co.nz Page 1...
-
Page 2: Before You Begin
+/- 4mm/m. ® 2. Please install this door onto an ENGLEFIELD Quick - Fit shower tray only, unless installing directly onto tiled walls and floor. 3. Care must be taken when drilling into walls and floors to avoid any hidden pipes or wires. -
Page 3: Tools And Materials Required
INSTALLATION INSTRUCTIONS VALENCIA ELITE Round Pivot TOOLS AND MATERIALS REQUIRED: Square Drive & Phillips 2.0 mm - supplied 3.0 mm PARTS IDENTIFICATION: 2 x Wall 2 x Fixed Panels 2 x Corner 2 x Seal Packs Channels (1 hinge side &... - Page 4 INSTALLATION INSTRUCTIONS VALENCIA ELITE Round Pivot 8x Wall Plugs 1 x Fittings Kit 4x Cover Caps 1x Hex Key 2x Pivot Sleeve 2x ST4*8 Screws 16x Fixing Screws 8x Retainer Screws 1 x Handle Kit Hex Key Handle Assembly 1371378-A02-H...
-
Page 5: Construction Requirements
INSTALLATION INSTRUCTIONS VALENCIA ELITE Round Pivot CONSTRUCTION REQUIREMENTS: ATTENTION Due to the weight of the glass panels Englefield strongly recommends constructing double studs (as below) to fix the wall retainers to. Size Dim ‘A’ Dim ‘B’ 900 x 900 1000 x 1000... -
Page 6: Installation Options
INSTALLATION INSTRUCTIONS VALENCIA ELITE Round Pivot INSTALLATION - OPTIONS: OPTION 1 - Acrylic Wall & Tray Tray: For tray installation refer to the instructions supplied with the tray. Wall: For wall installation refer to the instructions supplied with the wall. -
Page 7: Installation
INSTALLATION INSTRUCTIONS VALENCIA ELITE Round Pivot INSTALLATION: Caution: Ensure tray or tiled floor is level & walls are vertical & square. ± 0 mm ± 0 mm Tip: Cover the waste to prevent the loss of small parts. If installing onto a tray protect the tray surface during installation. - Page 8 INSTALLATION INSTRUCTIONS VALENCIA ELITE Round Pivot 3 mm 10 mm Position the wall channels on the wall. The flange with pre-drilled holes should face inside the shower enclosure. Using a level, make sure that the channel is upright. Mark the position of the fixing holes down the centre of the channel, then remove the channel.
- Page 9 INSTALLATION INSTRUCTIONS VALENCIA ELITE Round Pivot Caution! Logo badge on This process requires two persons. outside of shower (CleanLess ® glass Assemble outside the shower area. protection to inside) Glass notch & pivot block must be on same side. Swap rails around to match.
- Page 10 INSTALLATION INSTRUCTIONS VALENCIA ELITE Round Pivot Logo badge on outside of shower (CleanLess ® glass protection to inside) Insert the second glass panel into the lower rail, making sure the glass locates correctly into the seal. Install the fixing screws to secure the glass panel frame to the bottom rail.
- Page 11 INSTALLATION INSTRUCTIONS VALENCIA ELITE Round Pivot Note! This process requires two persons. Make sure the enclosure is kept parallel when lifting into place. Lift the shower assembly into position and fit the upright frame posts into the fixed wall channels on both sides of the enclosure.
- Page 12 INSTALLATION INSTRUCTIONS VALENCIA ELITE Round Pivot ± 0 mm Ø 3 mm From the inside of the shower enclosure, drill four 3mm holes in the door frame. The hole locations are centre marked on the inside of the wall channel.
- Page 13 INSTALLATION INSTRUCTIONS VALENCIA ELITE Round Pivot ST4*8 screw Insert pivot sleeve into the pivot block on rail, carefully lift the door panel, locate the bottom pivot pin into the pivot sleeve. Install pivot sleeve onto top pivot pin, lift the top rail up until the door hinge pivot pin can be fitted into top rail pivot block.
- Page 14 INSTALLATION INSTRUCTIONS VALENCIA ELITE Round Pivot Fixed Panel Magnetic Strip Door Seal Door Door Seal Door Seal 1371378-A02-H October 2023 Page 14 www.englefield.co.nz...
- Page 15 INSTALLATION INSTRUCTIONS VALENCIA ELITE Round Pivot 24hrs full length full length 200mm up 200mm up fixed full length panel wall board finishing wall retainer strip silicone or liner channel adhesive silicone Install the door handle, ensuring that the grub screws are on the underside.
- Page 16 INSTALLATION INSTRUCTIONS VALENCIA ELITE Round Pivot CLEANING AND MAINTENANCE INSTRUCTIONS Please refer to our website for cleaning instructions SPARE PARTS: Scan the QR barcode on the packaging or underside of top caps to identify the product SKU and date of manufacture.
