Check Autostep Mode
AWG2021 Service Manual
Electrical
Operating mode, Autostep, on page 1-4.
Characteristic
Checked
Equipment Two 50 W coaxial cables
Required
One oscilloscope
Prerequisites The AWG2021 meets the prerequisites listed on page 4-7.
1. Install test hookup and set test equipment controls:
a. Hook up the oscilloscope:
H Connect the AWG2021 CH1 output through a coaxial cable to the
oscilloscope CH1 vertical input.
H Connect the AWG2021 CH1 SYNC Out output through a coaxial
cable to the oscilloscope CH2 vertical input (see Figure 4–9).
AWG2021
AWG2021

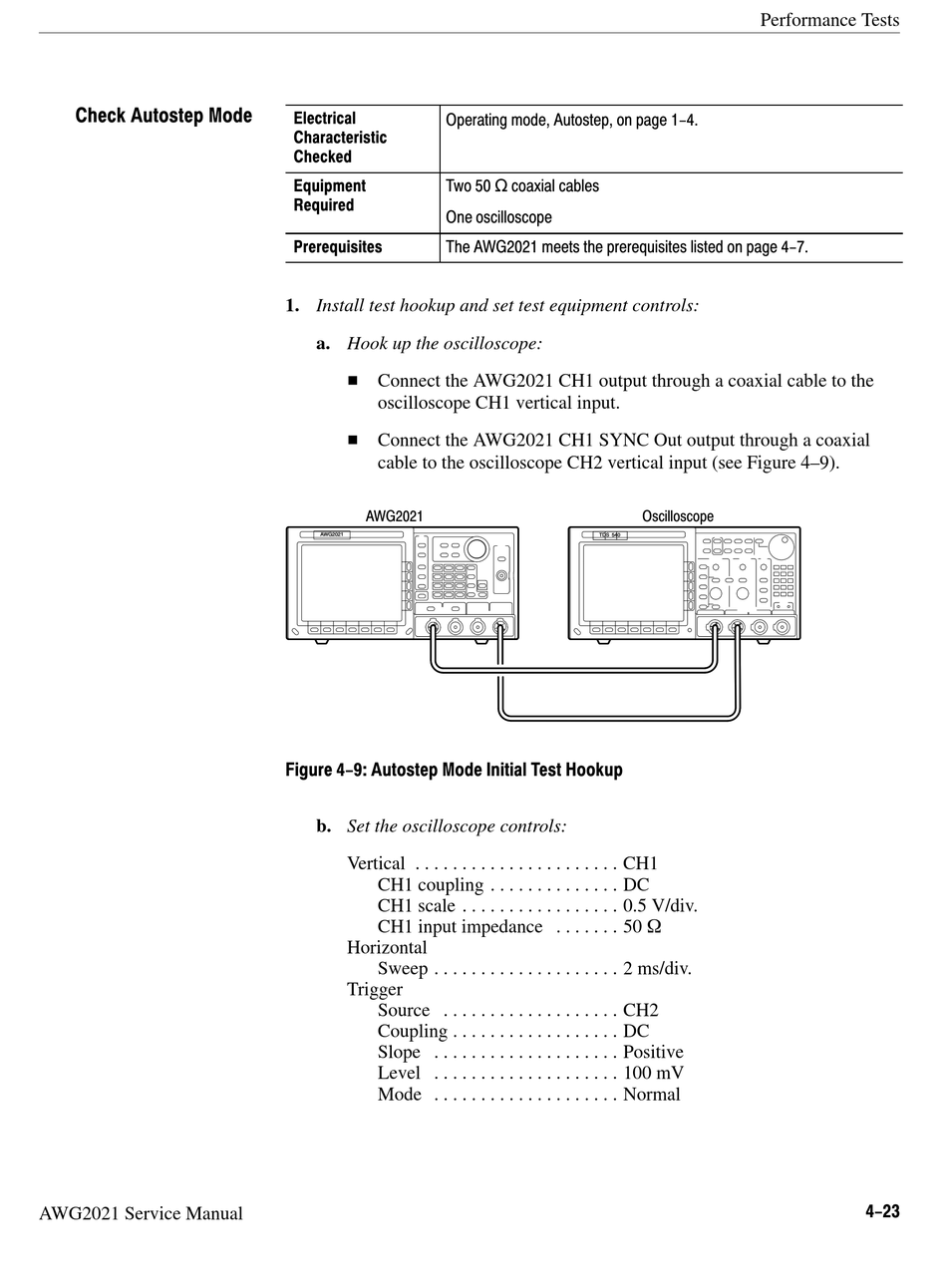

Figure 4-9: Autostep Mode Initial Test Hookup

b. Set the oscilloscope controls:
Vertical . . . . . . . . . . . . . . . . . . . . . .
CH1 coupling
CH1 scale . . . . . . . . . . . . . . . . .
CH1 input impedance
Horizontal
Sweep . . . . . . . . . . . . . . . . . . . .
Trigger
Source . . . . . . . . . . . . . . . . . . .
Coupling . . . . . . . . . . . . . . . . . .
Slope . . . . . . . . . . . . . . . . . . . .
Level . . . . . . . . . . . . . . . . . . . .
Mode . . . . . . . . . . . . . . . . . . . .
Oscilloscope
TDS 540
CH1
. . . . . . . . . . . . . . DC
0.5 V/div.
50 W
. . . . . . .
2 ms/div.
CH2
DC
Positive
100 mV
Normal
Performance Tests
4-23
