Operating Instructions
2-18

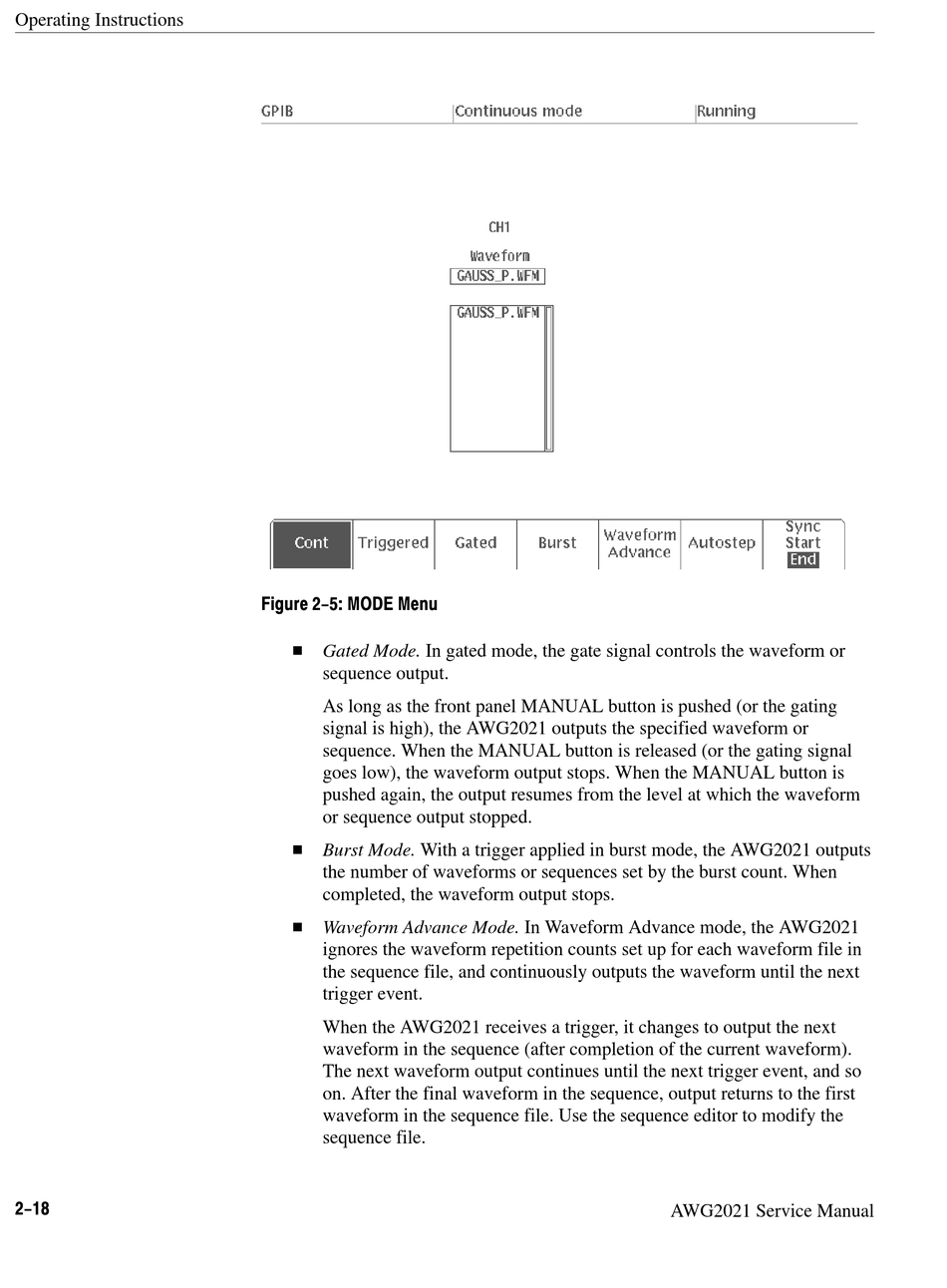

Figure 2-5: MODE Menu

H Gated Mode. In gated mode, the gate signal controls the waveform or
sequence output.
As long as the front panel MANUAL button is pushed (or the gating
signal is high), the AWG2021 outputs the specified waveform or
sequence. When the MANUAL button is released (or the gating signal
goes low), the waveform output stops. When the MANUAL button is
pushed again, the output resumes from the level at which the waveform
or sequence output stopped.
H Burst Mode. With a trigger applied in burst mode, the AWG2021 outputs
the number of waveforms or sequences set by the burst count. When
completed, the waveform output stops.
H Waveform Advance Mode. In Waveform Advance mode, the AWG2021
ignores the waveform repetition counts set up for each waveform file in
the sequence file, and continuously outputs the waveform until the next
trigger event.
When the AWG2021 receives a trigger, it changes to output the next
waveform in the sequence (after completion of the current waveform).
The next waveform output continues until the next trigger event, and so
on. After the final waveform in the sequence, output returns to the first
waveform in the sequence file. Use the sequence editor to modify the
sequence file.
