Introduction

ST STM32F407 Evaluation Board is a development system for STM32F407 microcontroller. The IT
STM32F407 package features a target board populated with STM32F407 CPU in the LQFP176 package,
20-pin Cortex Debug + ETM Connector.
The application under the development or test can run from the internal CPU flash or from the internal
SRAM.

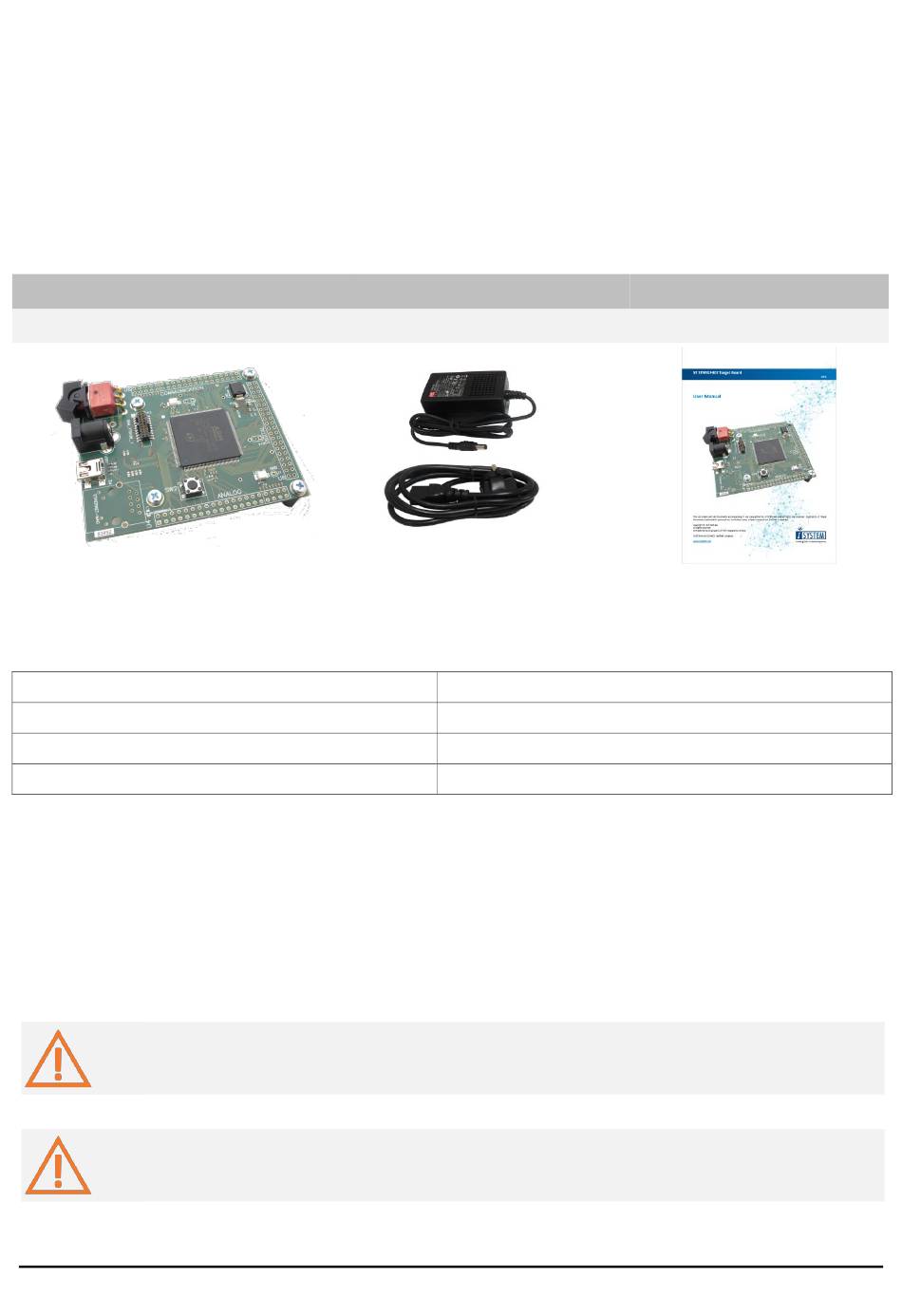

Package content

STM32F4 Target board

Specifications

Supply voltage
Board Size
Microcontroller (package)
Debug connections

Settings and Options

Power Supply

Permissible input voltage: 6 - 12 V DC, + in the center. The required current load capacity of the power
supply depends on the specific configuration of the target board. A power supply with a minimum of
500mA is recommended and delivered in the package.
First plug in the AC power supply to the mains and target board, then switch on the target. Lit
power indicator (LD2) indicates 3.3V presence.
When connecting an external debugger, switch the debugger on before powering on the target
board. When powering down the system, power off the target before powering off the
debugger!
