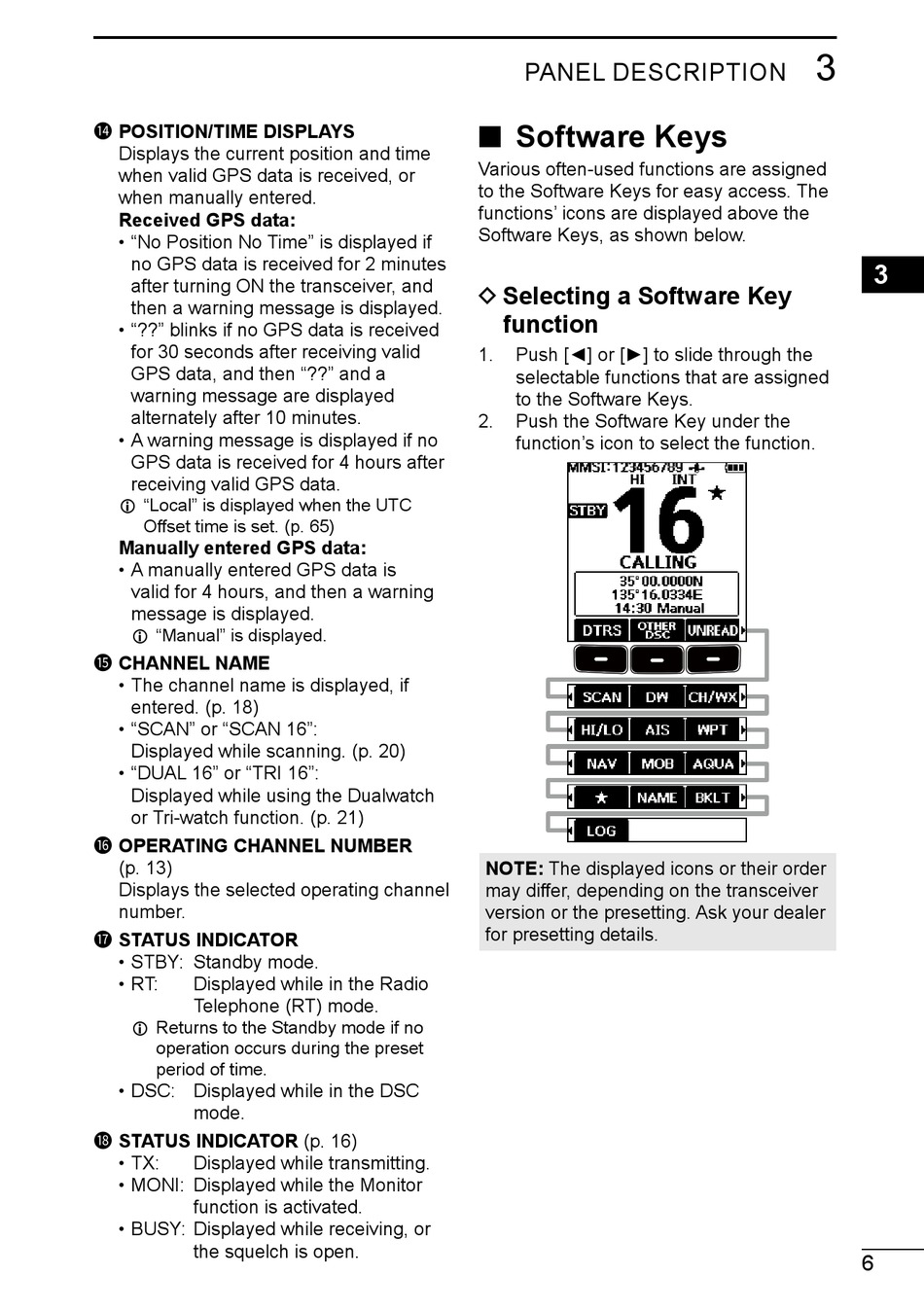

14 POSITION/TIME DISPLAYS
Displays the current position and time
when valid GPS data is received, or
when manually entered.
Received GPS data:
• "No Position No Time" is displayed if
no GPS data is received for 2 minutes
after turning ON the transceiver, and
then a warning message is displayed.
• "??" blinks if no GPS data is received
for 30 seconds after receiving valid
GPS data, and then "??" and a
warning message are displayed
alternately after 10 minutes.
• A warning message is displayed if no
GPS data is received for 4 hours after
receiving valid GPS data.
L "Local" is displayed when the UTC
Offset time is set. (p. 65)
Manually entered GPS data:
• A manually entered GPS data is
valid for 4 hours, and then a warning
message is displayed.
L "Manual" is displayed.
15 CHANNEL NAME
• The channel name is displayed, if
entered. (p. 18)
• "SCAN" or "SCAN 16":
Displayed while scanning. (p. 20)
• "DUAL 16" or "TRI 16":
Displayed while using the Dualwatch
or Tri-watch function. (p. 21)
16 OPERATING CHANNEL NUMBER
(p. 13)
Displays the selected operating channel
number.
17 STATUS INDICATOR
• STBY: Standby mode.
• RT:
Displayed while in the Radio
Telephone (RT) mode.
L Returns to the Standby mode if no
operation occurs during the preset
period of time.
• DSC: Displayed while in the DSC
mode.
18 STATUS INDICATOR (p. 16)
• TX:
Displayed while transmitting.
• MONI: Displayed while the Monitor
function is activated.
• BUSY: Displayed while receiving, or
the squelch is open.
PANEL DESCRIPTION
■ Software Keys
Various often-used functions are assigned
to the Software Keys for easy access. The
functions' icons are displayed above the
Software Keys, as shown below.
D Selecting a Software Key
function
1.
Push [◄] or [►] to slide through the
selectable functions that are assigned
to the Software Keys.
2.
Push the Software Key under the
function's icon to select the function.
NOTE: The displayed icons or their order
may differ, depending on the transceiver
version or the presetting. Ask your dealer
for presetting details.
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
6
