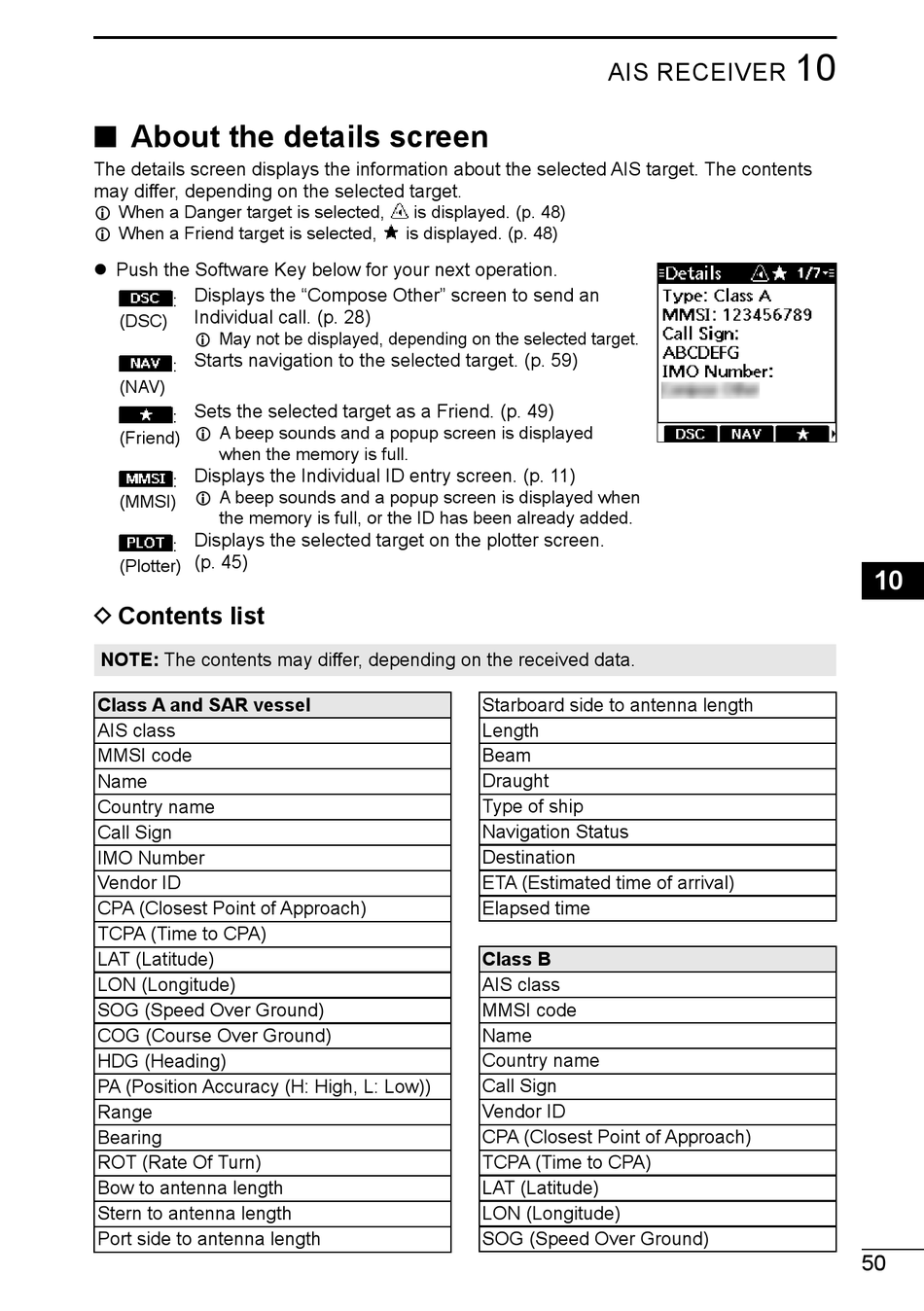

■ About the details screen

The details screen displays the information about the selected AIS target. The contents
may differ, depending on the selected target.
L When a Danger target is selected,
L When a Friend target is selected,
z Push the Software Key below for your next operation.
Displays the "Compose Other" screen to send an
:
Individual call. (p. 28)
(DSC)
L May not be displayed, depending on the selected target.
Starts navigation to the selected target. (p. 59)
:
(NAV)
Sets the selected target as a Friend. (p. 49)
:
L A beep sounds and a popup screen is displayed
(Friend)
when the memory is full.
Displays the Individual ID entry screen. (p. 11)
:
L A beep sounds and a popup screen is displayed when
(MMSI)
the memory is full, or the ID has been already added.
Displays the selected target on the plotter screen.
:
(p. 45)
(Plotter)
D Contents list
NOTE: The contents may differ, depending on the received data.
Class A and SAR vessel
AIS class
MMSI code
Name
Country name
Call Sign
IMO Number
Vendor ID
CPA (Closest Point of Approach)
TCPA (Time to CPA)
LAT (Latitude)
LON (Longitude)
SOG (Speed Over Ground)
COG (Course Over Ground)
HDG (Heading)
PA (Position Accuracy (H: High, L: Low))
Range
Bearing
ROT (Rate Of Turn)
Bow to antenna length
Stern to antenna length
Port side to antenna length
is displayed. (p. 48)
is displayed. (p. 48)
Starboard side to antenna length
Length
Beam
Draught
Type of ship
Navigation Status
Destination
ETA (Estimated time of arrival)
Elapsed time
Class B
AIS class
MMSI code
Name
Country name
Call Sign
Vendor ID
CPA (Closest Point of Approach)
TCPA (Time to CPA)
LAT (Latitude)
LON (Longitude)
SOG (Speed Over Ground)
