Battery Charger - Icom IC-M94D Instruction Manual

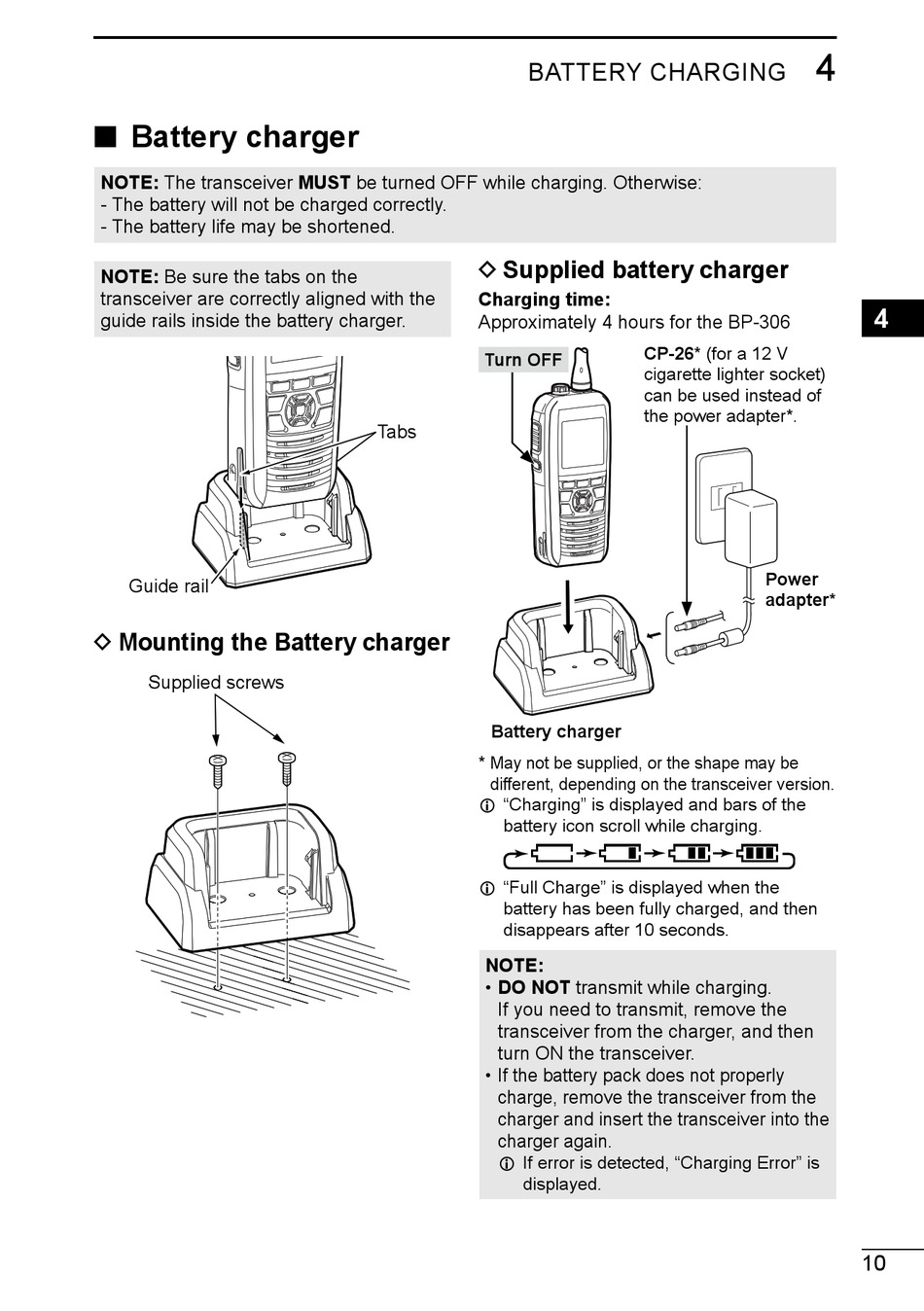

■ Battery charger

NOTE: The transceiver MUST be turned OFF while charging. Otherwise:
- The battery will not be charged correctly.
- The battery life may be shortened.
NOTE: Be sure the tabs on the
transceiver are correctly aligned with the
guide rails inside the battery charger.
Guide rail
D Mounting the Battery charger
Supplied screws
BATTERY CHARGING
D Supplied battery charger
Charging time:
Approximately 4 hours for the BP-306
Turn OFF
Tabs
Battery charger
* May not be supplied, or the shape may be
different, depending on the transceiver version.
L "Charging" is displayed and bars of the
battery icon scroll while charging.
L "Full Charge" is displayed when the
battery has been fully charged, and then
disappears after 10 seconds.
NOTE:
• DO NOT transmit while charging.
If you need to transmit, remove the
transceiver from the charger, and then
turn ON the transceiver.
• If the battery pack does not properly
charge, remove the transceiver from the
charger and insert the transceiver into the
charger again.
L If error is detected, "Charging Error" is
displayed.
4
CP-26* (for a 12 V
cigarette lighter socket)
can be used instead of
the power adapter*.
Power
adapter*
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
10
