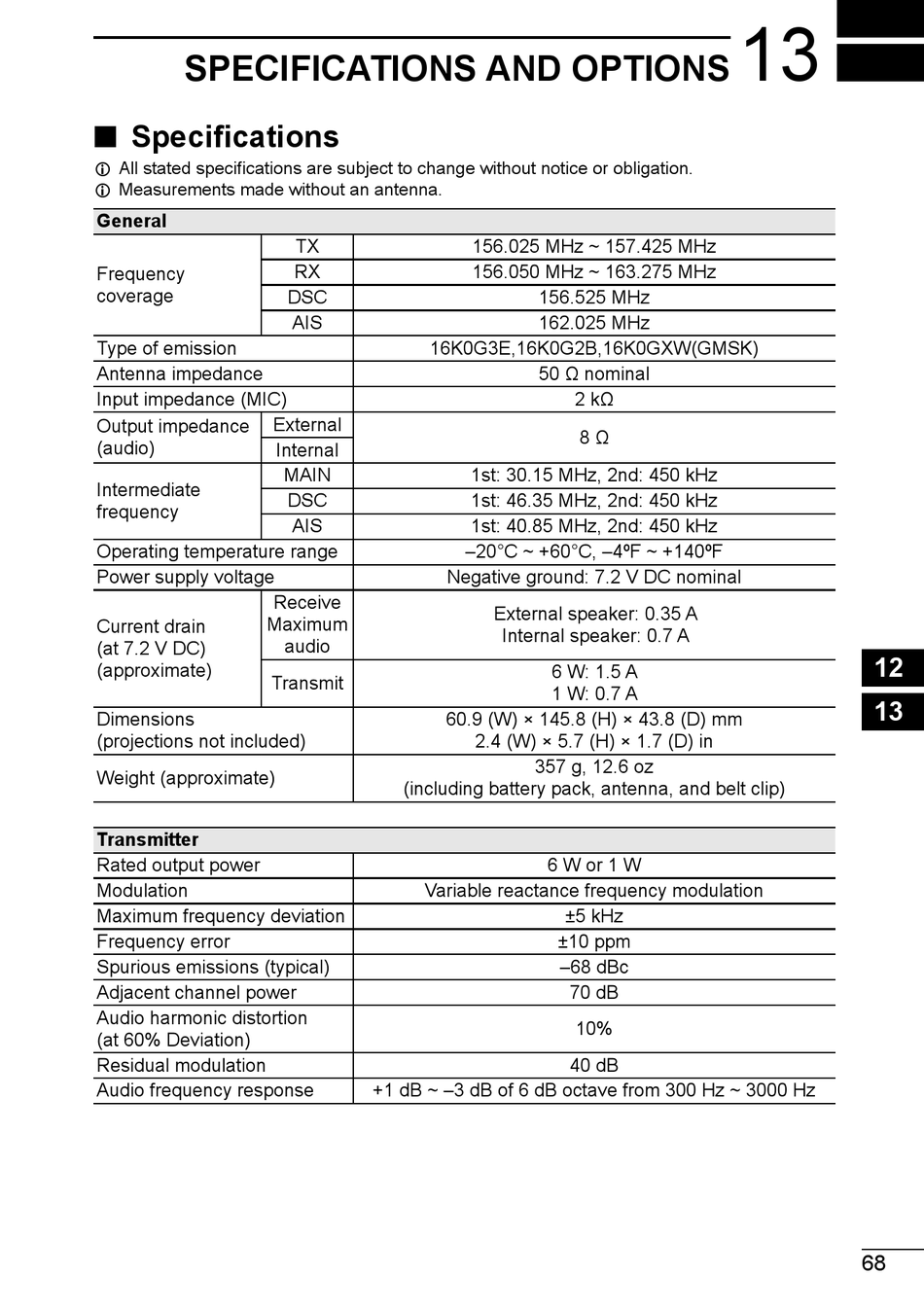

SPECIFICATIONS AND OPTIONS

■ Specifications

L All stated specifications are subject to change without notice or obligation.
L Measurements made without an antenna.
General
Frequency
coverage
Type of emission
Antenna impedance
Input impedance (MIC)
Output impedance
(audio)
Intermediate
frequency
Operating temperature range
Power supply voltage
Maximum
Current drain
(at 7.2 V DC)
(approximate)
Dimensions
(projections not included)
Weight (approximate)
Transmitter
Rated output power
Modulation
Maximum frequency deviation
Frequency error
Spurious emissions (typical)
Adjacent channel power
Audio harmonic distortion
(at 60% Deviation)
Residual modulation
Audio frequency response
TX
RX
DSC
AIS
16K0G3E,16K0G2B,16K0GXW(GMSK)
External
Internal
MAIN
DSC
AIS
Receive
audio
Transmit
60.9 (W) × 145.8 (H) × 43.8 (D) mm
(including battery pack, antenna, and belt clip)
Variable reactance frequency modulation
+1 dB ~ –3 dB of 6 dB octave from 300 Hz ~ 3000 Hz
156.025 MHz ~ 157.425 MHz
156.050 MHz ~ 163.275 MHz
156.525 MHz
162.025 MHz
50 Ω nominal
2 kΩ
8 Ω
1st: 30.15 MHz, 2nd: 450 kHz
1st: 46.35 MHz, 2nd: 450 kHz
1st: 40.85 MHz, 2nd: 450 kHz
–20°C ~ +60°C, –4ºF ~ +140ºF
Negative ground: 7.2 V DC nominal
External speaker: 0.35 A
Internal speaker: 0.7 A
6 W: 1.5 A
1 W: 0.7 A
2.4 (W) × 5.7 (H) × 1.7 (D) in
357 g, 12.6 oz
6 W or 1 W
±5 kHz
±10 ppm
–68 dBc
70 dB
10%
40 dB
