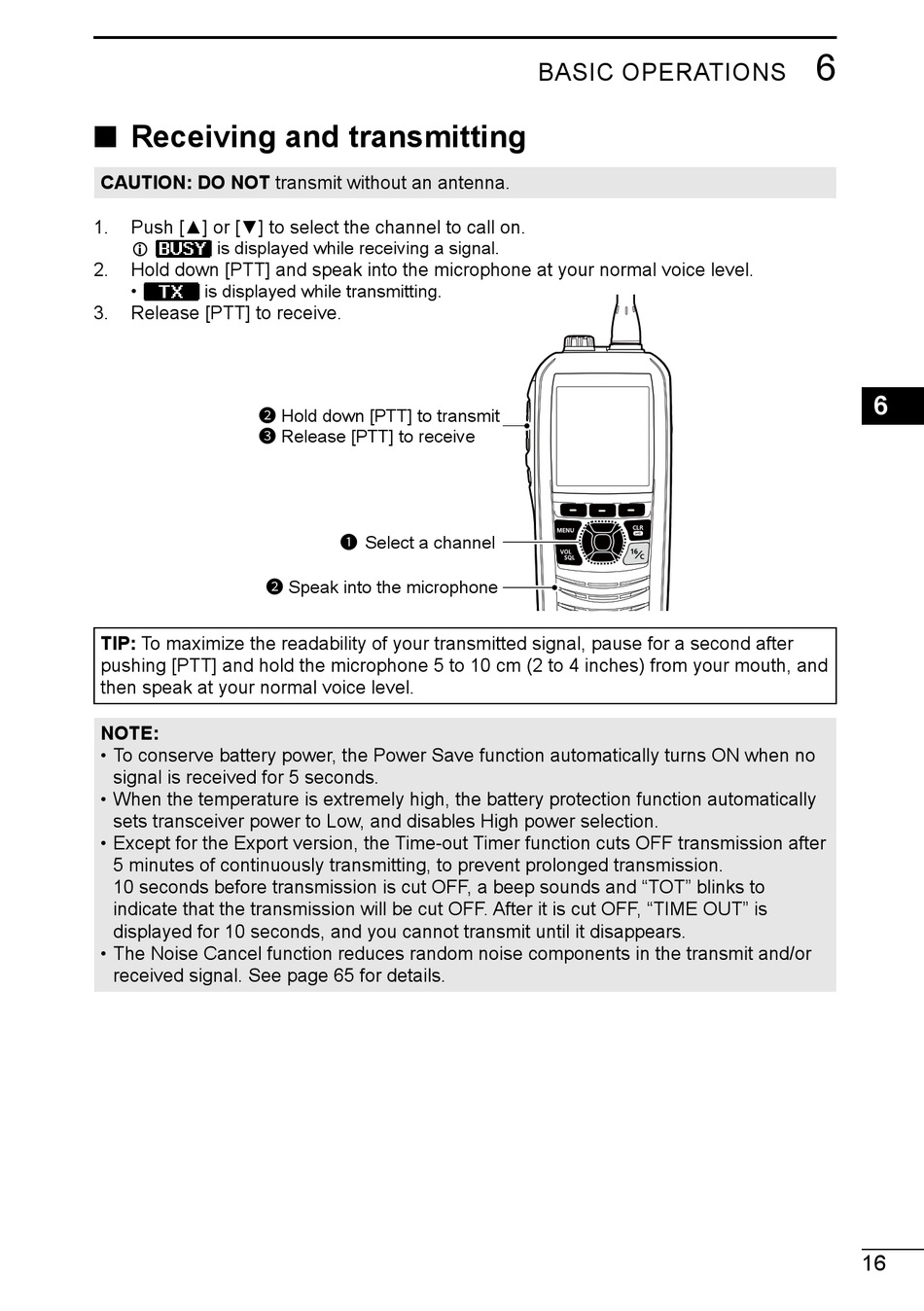

■ Receiving and transmitting

CAUTION: DO NOT transmit without an antenna.
1. Push [▲] or [▼] to select the channel to call on.
is displayed while receiving a signal.
L
2. Hold down [PTT] and speak into the microphone at your normal voice level.
• is displayed while transmitting.
3. Release [PTT] to receive.
2 Hold down [PTT] to transmit
3 Release [PTT] to receive
2 Speak into the microphone
TIP: To maximize the readability of your transmitted signal, pause for a second after
pushing [PTT] and hold the microphone 5 to 10 cm (2 to 4 inches) from your mouth, and
then speak at your normal voice level.
NOTE:
• To conserve battery power, the Power Save function automatically turns ON when no
signal is received for 5 seconds.
• When the temperature is extremely high, the battery protection function automatically
sets transceiver power to Low, and disables High power selection.
• Except for the Export version, the Time-out Timer function cuts OFF transmission after
5 minutes of continuously transmitting, to prevent prolonged transmission.
10 seconds before transmission is cut OFF, a beep sounds and "TOT" blinks to
indicate that the transmission will be cut OFF. After it is cut OFF, "TIME OUT" is
displayed for 10 seconds, and you cannot transmit until it disappears.
• The Noise Cancel function reduces random noise components in the transmit and/or
received signal. See page 65 for details.
1 Select a channel
