10
AIS RECEIVER
NOTE: For the AIS receiver operation, the transceiver must be receiving valid GPS
signals, or your position must be entered. (p. 23)

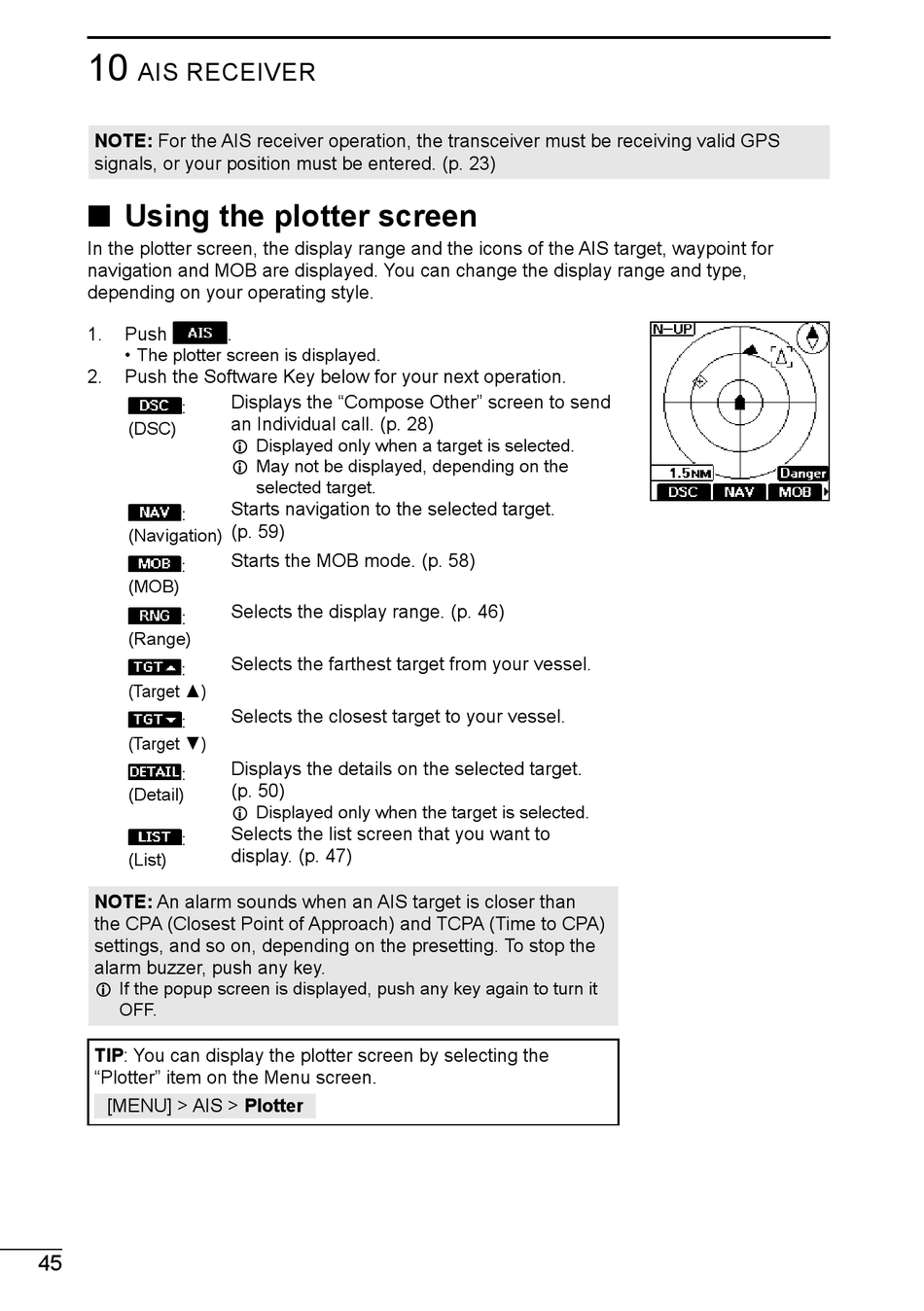

■ Using the plotter screen
In the plotter screen, the display range and the icons of the AIS target, waypoint for
navigation and MOB are displayed. You can change the display range and type,
depending on your operating style.
1.
Push
• The plotter screen is displayed.
2.
Push the Software Key below for your next operation.
:
(DSC)
:
(Navigation)
:
(MOB)
:
(Range)
:
▲
(Target
)
:
▼
(Target
)
:
(Detail)
:
(List)
NOTE: An alarm sounds when an AIS target is closer than
the CPA (Closest Point of Approach) and TCPA (Time to CPA)
settings, and so on, depending on the presetting. To stop the
alarm buzzer, push any key.
L If the popup screen is displayed, push any key again to turn it
OFF.
TIP: You can display the plotter screen by selecting the
"Plotter" item on the Menu screen.
[MENU] > AIS > Plotter
45
.
Displays the "Compose Other" screen to send
an Individual call. (p. 28)
L Displayed only when a target is selected.
L May not be displayed, depending on the
selected target.
Starts navigation to the selected target.
(p. 59)
Starts the MOB mode. (p. 58)
Selects the display range. (p. 46)
Selects the farthest target from your vessel.
Selects the closest target to your vessel.
Displays the details on the selected target.
(p. 50)
L Displayed only when the target is selected.
Selects the list screen that you want to
display. (p. 47)
