■ GPS

TIP: Use the transceiver outdoors so the receiver has a clear view to receive GPS
signals from the satellites.

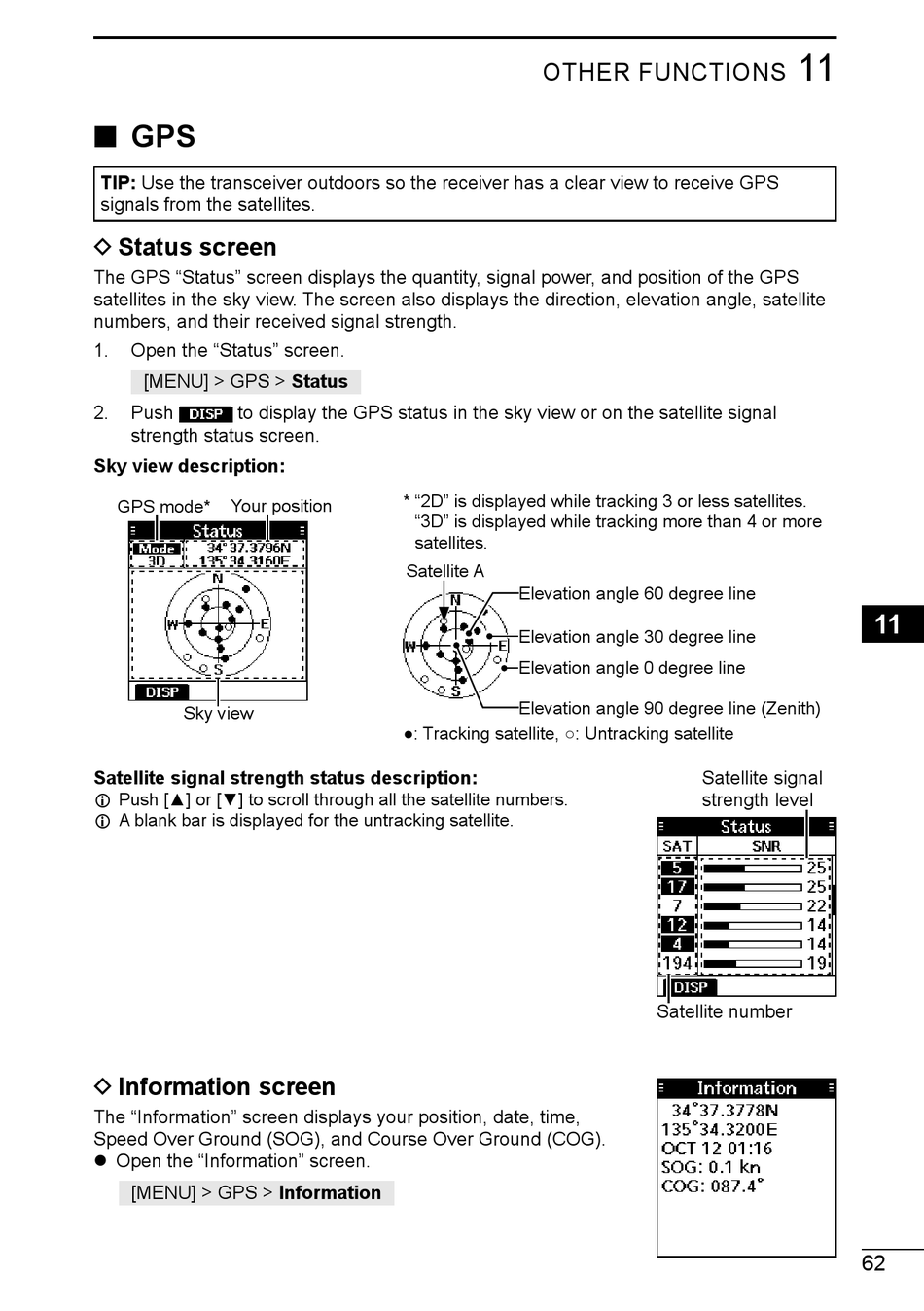

D Status screen
The GPS "Status" screen displays the quantity, signal power, and position of the GPS
satellites in the sky view. The screen also displays the direction, elevation angle, satellite
numbers, and their received signal strength.
1. Open the "Status" screen.
[MENU] > GPS > Status
2. Push to display the GPS status in the sky view or on the satellite signal
strength status screen.
Sky view description:
Your position
GPS mode*
Sky view
Satellite signal strength status description:
L Push [▲] or [▼] to scroll through all the satellite numbers.
L A blank bar is displayed for the untracking satellite.
D Information screen
The "Information" screen displays your position, date, time,
Speed Over Ground (SOG), and Course Over Ground (COG).
z Open the "Information" screen.
[MENU] > GPS > Information
OTHER FUNCTIONS
* "2D" is displayed while tracking 3 or less satellites.
"3D" is displayed while tracking more than 4 or more
satellites.
Satellite A
Elevation angle 60 degree line
Elevation angle 30 degree line
Elevation angle 0 degree line
Elevation angle 90 degree line (Zenith)
●: Tracking satellite, ○: Untracking satellite
11
Satellite signal
strength level
Satellite number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
62
