SEA FLIPPER 110V Fitting Instructions And Security Advices

Electromechanical operator for swing gates
Hide thumbs

Advertisement

Quick Links

Download this manual
International registered trademark n. 2.777.971

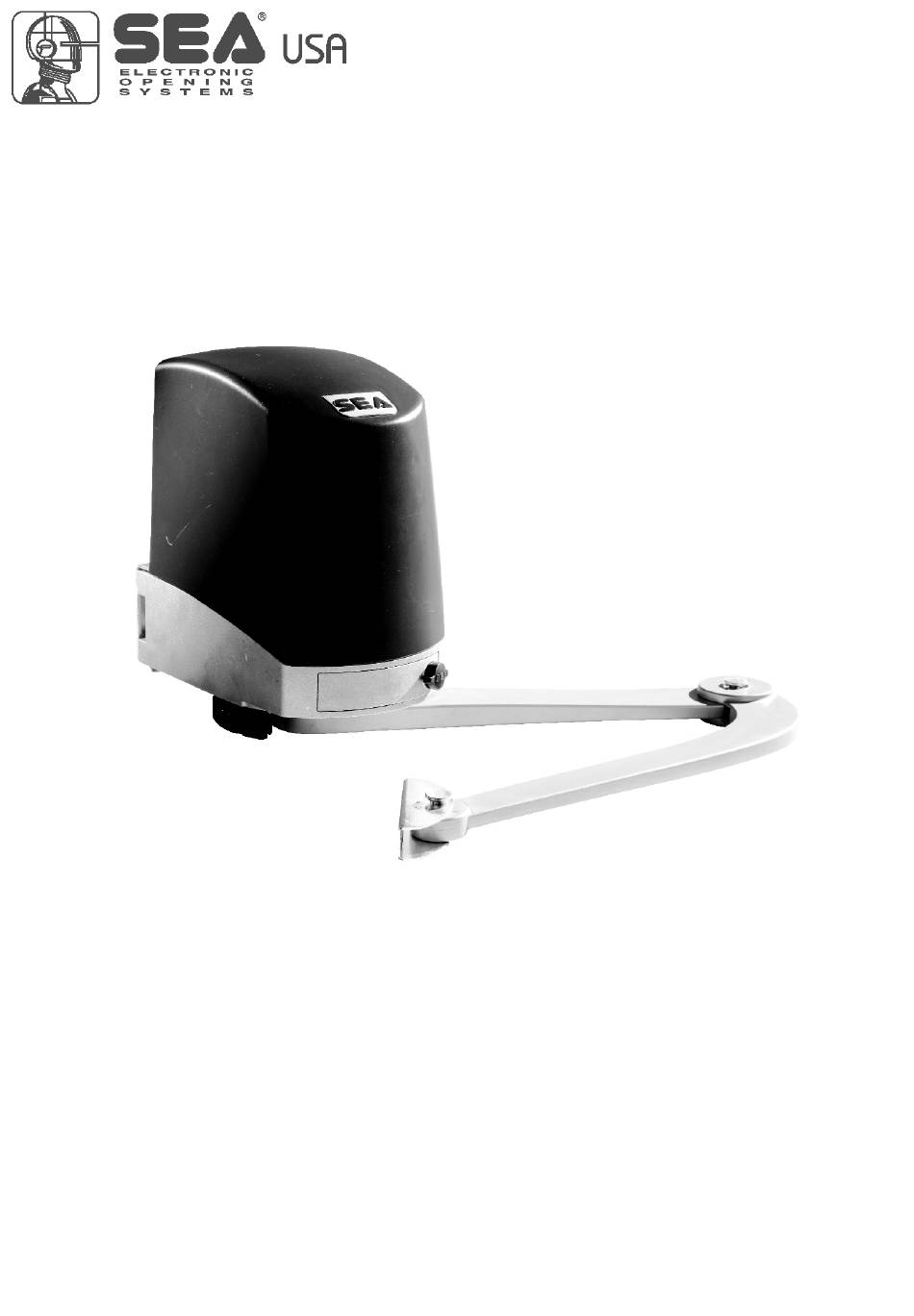

ELECTROMECHANICAL OPERATOR FOR SWING GATES
FLIPPER 110V
FITTING INSTRUCTIONS
and security advices
SEA USA Inc.
10850 N.W. 21st unit 160 DORAL MIAMI
Florida (FL) 33172
Phone:++1-305.594.1151 Fax: ++1-305.594.7325
Toll Free: 800.689.4716
REV 00 - 03/2009

Advertisement

loading
Need help?

Need help?

Do you have a question about the FLIPPER 110V and is the answer not in the manual?

Questions and answers

Related Manuals for SEA FLIPPER 110V

Summary of Contents for SEA FLIPPER 110V

  • Page 1 International registered trademark n. 2.777.971 ELECTROMECHANICAL OPERATOR FOR SWING GATES FLIPPER 110V FITTING INSTRUCTIONS and security advices SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716 REV 00 - 03/2009...

  • Page 2: Technical Data

    International registered trademark n. 2.777.971 Flipper is an irreversible electromechanical swing gate operator for medium sized piers, maximum leaf length 2 m or 200Kg weight (see drawing in Fig 4-A) DIMENSIONS (inches) 6 , 5 TECHNICAL DATA FLIPPER Power Supply 110V (±5%) 50/60 Hz Motor Power...
  • Page 3 International registered trademark n. 2.777.971 1. Carter 2. Anchrage plate 3. Fuse 4. Transformator 5. Electronic control unit 6. Battery/card support (battery optional) 7. Mech./electr. Stop (electronical optional) 8. Streight articulated arm 9. Curved articulated arm 10. Back fixation 11. Portection cover Fig.
  • Page 4 International registered trademark n. 2.777.971 CARTER OFF MOUNTING Open the little release door and take off the screw on the inside (Fig 4). FLIPPER WITH CONTROL UNIT Fig. 4 Fig. 5 FLIPPER WITHOUT CONTROL UNIT DRAWING LEAVES DIMENSIONS Fig. 4-A •...
  • Page 5 International registered trademark n. 2.777.971 GATE ARRANGEMENT It is necessary to make controls on the gate to make sure the application of FLIPPER automation can be possible. Make sure that: Fig. 7 The gate fixed and moving parts have a strong and crush- proof structure;;...
  • Page 6 International registered trademark n. 2.777.971 MOUNTING PLATE ATTACHMENT AND MOUNTING OF THE MOTOR - Attach the mounting plate to the pilaster with 4 screws and 4 Fig. 10 washers not included (Fig. 9). - Make sure that the plate is in horizontal position (with level). - Mount the motor on the plate using the 2 furnished screws.
  • Page 7 International registered trademark n. 2.777.971 ATTACHMENT OF THE ARTICULATED ARM TO THE MOTOR - Fit the articulated arm into the motor shaft and lock it with the special screws (Fig. 13). - The protection cover must be mounted on the end of all adjustments. Fig.
  • Page 8 International registered trademark n. 2.777.971 FIXING OF THE FRONT BRACKET - Close the leaf completely - Release the motor (see Fig. 18 e 19) - Extend the articulated arm (Fig. 8), lean the adjustable front bracket on the gate and make two marks on the center of the two holes (Fig.
  • Page 9 International registered trademark n. 2.777.971 RELEASE SYSTEM To release operate as follows: - Take off the protection cap of the lock. - Insert the key and turn about 90° into clockwise direction (Fig. 18). - Pull the door until its complete opening (Fig. 19). - Open manually the leaf To block again operate as follows: - close the door again.

  • Page 10: Left Motor

    International registered trademark n. 2.777.971 MECHANICAL POSITIVE STOP ADJUSTMENT IN OPENING - Release the operator. - Open the leaf completely or up to the desired opening point. - Position the stop as in Fig. 24 on the stop of the arm and lock the screws as in Fig. 25. N.B: The delivered screws are selfthreading and have to be locked at 10 Nm.

  • Page 11: Periodical Maintenance

    International registered trademark n. 2.777.971 RISK EXAMINATION Fig. 26 The points pointed by arrows in Fig. 26 are potentially dangerous. The installer must take a close risk examination to prevent crushing, conveying, cutting, grappling, trapping so to guarantee a safe installation for people, things and animals Re.
  • Page 12 International registered trademark n. 2.777.971 FLIPPER ACCESSORIES KEY SWITCH PHOTOCELLS RADIO RECEIVER EXTERNAL LOOP DETECTOR ELECTRIC LOCK FLASHING LAMP KIT EXTERNAL LOCK TRANSMITTER FLIPPER KIT LIMIT SWITCH SUPPORTS FOR PHOTOCELLS REV 00 - 03/2009...
  • Page 13 Note: Use “cable clips” and/or “duct/box pipes” fitting close to the control panel box so to protect the interconnection cables against pulling efforts. SPARE PARTS To obtain spare parts contact: SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716 e-mail: sales@sea-usa.com INTENDED USE The USER 2 24V electronic control unit has been designed to be solely used as control unit for the automation of swing gates.
  • Page 16 International registered trademark n. 2.777.971 SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716...
