SEA SUPER FULL TANK Series Installation Manuals And Safety Information

Hydraulic operator for swing gate

Advertisement

International registered trademark n. 2.777.971
SUPER FULL TANK
HYDRAULIC OPERATOR FOR SWING GATE
INSTALLATION MANUALS
AND SAFETY INFORMATION
SEA USA Inc.
10850 N.W. 21st unit 160 DORAL MIAMI
Florida (FL) 33172 USA
Phone:++1-305.594.1151 Fax: ++1-305.594.7325
Toll Free: 800.689.4716
web site: www.sea-usa.com
e-mail: sales@sea-usa.com
67411857
REV 02 - 11/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPER FULL TANK Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SEA SUPER FULL TANK Series

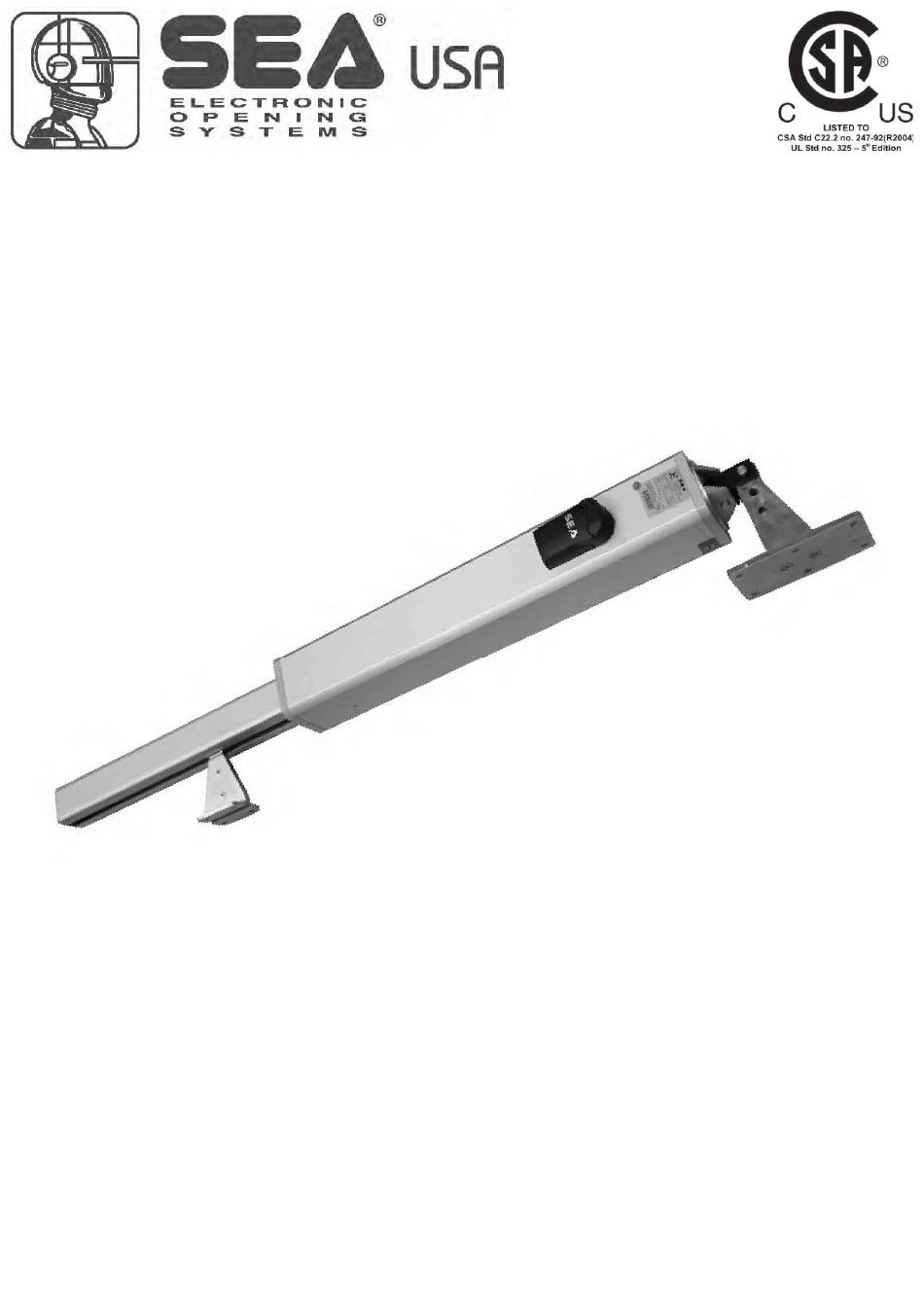

  • Page 1 International registered trademark n. 2.777.971 SUPER FULL TANK HYDRAULIC OPERATOR FOR SWING GATE INSTALLATION MANUALS AND SAFETY INFORMATION SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 USA Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716 web site: www.sea-usa.com e-mail: sales@sea-usa.com...
  • Page 2 International registered trademark n. 2.777.971 IMPORTANT SAFETY INFORMATION GENERAL SAFETY PRECAUTIONS The following precautions are an integral and essential part of the product and must be supplied to the user Read them carefully as they contain important indications for the safe installation, use and maintenance. 1.
  • Page 3 International registered trademark n. 2.777.971 GENERAL SAFETY INFORMATION An appliance shall be provided with an instruction manual. The instruction manual shall give instructions for the installation, operation, and user maintenance of the appliance. The installation instructions shall specify the need for a grounding-type receptacle for connection to the supply and shall stress the importance of proper grounding.
  • Page 4 The installer shall follow the provided instructions thoroughly. SEA products must only be used to automate doors, gates and wings. Any initiative taken without SEA USA Inc. explicit authorization will preserve the manufacturer from whatsoever responsibility.
  • Page 5 International registered trademark n. 2.777.971 5. The End of Type E. Type E (audible alarm) devices can no longer be used for entrapment protection. This change was made because the Type E device is really a warning device, not an entrapment-protection device. Also, all gate operator classes are now required to have an audio alarm that sounds when two successive obstructions are encountered via a contact-type system.
  • Page 6 Fig. 4 PRECAUTIONS SEA motors have been created for the automation of gates used by vehicles only. Be aware to avoid the crossing of the gate path because it is very dangerous for pedestrians (fig. 4). Install the warning signs, on each side of the gate and in avisible zone which informs the pedestrians about the danger they run when passing or resting in the environment of the gate (fig.
  • Page 7: Features And Specifications

    In case of leaves longer than 13,12 feet or installations in windy places or in case of closed paneled gates, SEA recommends the use of the electric lock on operators without block (SB) ; moreover, the exclusion of electronic slowdown is recommended in case of operators with hydraulic...
  • Page 8 Fig. 4...
  • Page 9: Typical Installation

    TYPICAL INSTALLATION EXIT ENTRY Fig. 5 Super Full Tank operator Leaf weight Mechanical stop Control board Warning lamp 4409,25 Lbs Photocell tx Differential switch 16A-0,03A 3306,93 Lbs Photocell rx Key switch start-stop 2204,62 Lbs Antenna 1102,31 Lbs 10. Column for photocells 11.
  • Page 10 INSIDE OPENING INSTALLATION Outside Inside Fig. 7 Total stroke 19,69 Inches - max. recommended stroke 18,90 mm Max. Max. Stroke Stroke for 90° Opening (inches) (inches) (inches) (inches) (inches) Angle 8,66 110° 18,90 8,07 3,15 16,93 10,24 90° 18,90 8,46 4,72 8,86 110°...
  • Page 11: Installation On Masonry Pillars, Making A Niche

    INSTALLATION ON MASONRY PILLARS, MAKING A NICHE 7,87 2,56 2,76 Minimum 6,89 Minimum 70,87 If you have to make a n i c h e o b s e r v e t h e dimensions shown in Fig. 8 2,56 Fig.
  • Page 12 INSTALLATION OF THE OSCILLATING REAR BRACKET PRELIMINARY: - Open carefully the package, making sure not to loose parts which are listed in Fig. 4 - Attach the rear oscillating bracket as shown in Fig. 11 Attention: Do not use a hammer for the insertion of the short brass pin;...
  • Page 13 POSITIONING OF THE FRONT BRACKET Once the operator is attached to the post and the leaf set in the closed position execute the following operations: 1. Release the operator. 2. Pull-out completely the chromate shaft and push it back in 0,4 inches. 3.
  • Page 14 SUPER FULL TANK THREEPHASE - THREEPHASE CABLE CONNECTIONS PHASE 1 (U) PHASE 2 (V) PHASE 3 (W) 4-5 MOTOR HEATING DETECTOR CONTACT (NC) GROUND - YELLOW-GREEN (GV) Fig. 19 BREATHER SCREW ATTENTION It is obligatory to remove the breather screw at the end of the installation. Fig.
  • Page 15 TORQUE ADJUSTMENT (by pass valves) By-Pass Valves Grey Yellow Grey Yellow Fig. 23 Adjust the opening and closing forces of the gate so that the diagram of the force is respected (present in the regulation EN 12453); Anyway the max. thrust force should never be superior of 33,07 LbsF. INSTALLATION OF THE CHROME PLATED SHAFT COVER Fig.
  • Page 16: Oil Level Measurement

    OIL LEVEL MEASUREMENT LEVEL DISTRIBUTOR LEVEL DISTRIBUTOR Fig. 25 The oil level should be measured with the rod inserted into the actuator and the oil level must be at the distributor level SUPER FULL TANK ACCESSORIES PHOTOCELLS TRANSMITTER KEY SWITCH FLASHING LAMP RADIO RECEIVER EXTERNAL...
  • Page 17: Periodical Maintenance

    Fig. 26 Fig. 27 WARNING: SEA recommends to the end user to release the operator only in case of power failure or after having switched off the electric power. Always contact a professional installer in case of not correct working of the operator PERIODICAL MAINTENANCE Check the robustness and the stability of the gate;...
  • Page 18 NOTE: THE MANUFACTURER CAN NOT BE DEEMED RESPONSIBLE FOR ANY DAMAGE OR INJURY CAUSED BY IMPROPER USE OF THIS PRODUCT SEA reserves the right to do changes or variations that may be necessary to its products with no obligation to notice...
  • Page 19 PAYMENT: Method of payments and terms are notified by SEA and displayed on the commercial invoice. DELIVERY: The delivery time on the invoice is not binding and represents an estimated delivery. Shipments costs will be charged to the buyer and SEA is not responsible for delays and/or damages occurred to the products during shipment.
  • Page 20 International registered trademark n. 2.777.971 SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 USA Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716 web site: www.sea-usa.com e-mail: sales@sea-usa.com...

This manual is also suitable for:

Super full tank 500 g6 380vSuper full tank 500 g6 120v
