QUICK START

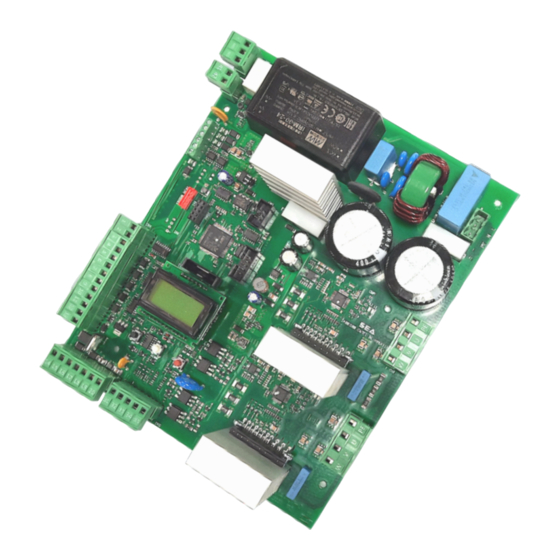

GATE 2 DG INVERTER
INVERTER CONTROL UNIT
TO MANAGE
ONE or TWO OPERATORS
(230V/110V)
FULL MANUAL
(Rev. 01)
&
SAFETY
INFORMATION
SEA
S.p.A.
Zona Industriale Sant'Atto - 64100 - Teramo - ITALY
Telephone: + 39 0 861 588341
www.seateam.com
67412241
REV. 00 - 05/2023
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SEA GATE 2 DG INVERTER
Summary of Contents for SEA GATE 2 DG INVERTER
- Page 1 IT - EN - FR International registered trademark n. 804888 QUICK START GATE 2 DG INVERTER INVERTER CONTROL UNIT TO MANAGE ONE or TWO OPERATORS (230V/110V) FULL MANUAL (Rev. 01) & SAFETY INFORMATION S.p.A. Zona Industriale Sant’Atto - 64100 - Teramo - ITALY Telephone: + 39 0 861 588341 www.seateam.com...
- Page 2 ENGLISH Italiano International registered trademark n. 804888 INDEX 1 - COMPONENTS 2 - QUICK START SEQUENCE: WIRINGS « » B BASIC MENU SETTINGS C MOTORS OPERATION TEST (MENU 192 193) D ACTIVATION OF ENCODER POTENTIOMETER (IF INSTALLED) WORKING TIMES LEARNING «...
- Page 3 ENGLISH Italiano International registered trademark n. 804888 1 - COMPONENTS Make all the wirings when the control unit is not powered! Keep the power cables separate from the command cables - always run cables in separate sheaths to prevent interferences! 14 15 16 17 18 19 20 ANT COM START STPD STOP COM PH1 PH2 EDGE1 EDGE2 COM AUX FL(-) GP1 GP2 GP3 24V +PG COM COMIS...
- Page 4 ENGLISH Italiano International registered trademark n. 804888 2 - QUICK START SEQUENCE A - B - C - D - E WIRINGS WIRING OF THE MAIN ACCESSORIES ON THE CONTROL UNIT Make all wirings when the unit is not powered! Do not jumper the N.C.
- Page 5 ENGLISH Italiano International registered trademark n. 804888 OPERATORS WIRINGS Wirings of one or two operators to the control unit MOTOR 1 (230V) MOTOR 2 (230V) M1 (120V) M2 (120V) = BROWN = BLACK = BLACK = BROWN = WHITE = WHITE = BLUE = BLUE = RED...
- Page 6 ENGLISH Italiano International registered trademark n. 804888 BASIC MENU SETTINGS SOFTWARE INPUT OWER REVISION STATUS SECONDS 03.00 0 0 11111 0 ENGLISH LANGUAGE XAMPLE 1111 0 0 0 0 When a type is set, the parameters of the special menu automatically set to the useful values for that 1-HYDRAULIC MOTOR XAMPLE...
- Page 7 ENGLISH Italiano International registered trademark n. 804888 WORKING TIMES LEARNING WORKING TIMES LEARNING THROUGH MANUAL PULSES ON THE POINTS OF STOP ie: double hydraulic swing operator) (for operators without limit switch, without encoder and without potentiometer - When the learning cycle starts, press UP on the stop points of each motor (M1 - M2) LOCK UNLOCK LEAVES ON HALFWAY...
- Page 8 ENGLISH Italiano International registered trademark n. 804888 STANDARD ENCODER UNLOCK LOCK OWER LEAVES ON HALFWAY OWER INPUTS SOFTWARE STATUS REVISION XAMPLE XAMPLE XAMPLE SECONDS 00111110 03.00 11110000 OF F THE LEARNING CYCLE STARTS: M2 CLOSES XAMPLE M1 CLOSES M1 OPENS M2 OPENS LANGUAGE PROGRAMMING...
- Page 9 GATE 2 INVERTER MENU FUNCTIONS TABLE MENU DESCRIPTION DEFAULT NOTE Italiano Italian English English 1 LANGUAGE English Français French Español Spanish Dutch Dutch Start Start Partial opening Partial opening External module External module Stop Stop Relay To enable the Relay for 3 seconds Pressed once, it stops the gate.
- Page 10 MENU DESCRIPTION DEFAULT NOTE Semi-automatic logic enabled (a START command opens and another START closes the gate - automatic reclosing disabled) 7 TIMER TO CLOSE To set a pause time (from 1 second to 4 minutes) before the automatic reclosing The Start command is not accepted during pause 8 START IN PAUSE The Start command is accepted during pause...
- Page 11 SPECIAL MENU PRESS AT THE SAME TIME FOR 5 SECONDS TO ENTER OR TO EXIT THE SPECIAL MENU SPECIAL MENU DESCRIPTION DEFAULT NOTE 17 OPENING SPEED 1 Speed in opening Motor 1 18 CLOSING SPEED 1 Speed in closing Motor 1 19 OPENING SPEED 2 Speed in opening Motor 2 20 CLOSING SPEED 2...
- Page 12 SPECIAL MENU DESCRIPTION DEFAULT NOTE Position Gate To enable the reading of the potentiometer 32 ENCODER To enable the reading of the Absolute Encoder RS 485 To enable the reading of the "RS485" Absolute Encoder To show the current position of the potentiometer on the leaf moved - - - - - - - - by Motor 1.
- Page 13 SPECIAL MENU DESCRIPTION DEFAULT NOTE POTENTIOMETER THRESHOLD OPENING 1 To adjust the threshold of the Potentiometer or "RT" POTENTIOMETER Encoder intervention. This parameter self-determines 1000 THRESHOLD during the working times learning but can also be (available only if the CLOSING 1 adjusted later, on the condition that the set value is depen Menu 32-Encoder is set...
- Page 14 SPECIAL MENU DESCRIPTION DEFAULT NOTE OPENING POSITION To retrieve the inertia of the motor in opening after the 20 seconds depends RECOVERY Stop or the reversing (only if 32-Encoder is OFF) on motor CLOSING POSITION To retrieve the inertia of the motor in closing after the 20 seconds depends RECOVERY...
- Page 15 To enable the pre-flashing only before closing Only closing (to access: press DOWN button when 0.0 value is shown) 85 PRE-FLASHING 5.0 s To set the pre-flashing duration Normal Normal Light Warning lamp function 86 FLASHING LIGHT Normal Always Always ON Buzzer Buzzer Flashing light will be OFF with enabled timer and open...
- Page 16 SPECIAL MENU DESCRIPTION DEFAULT NOTE Photocell 1 Self-test enabled only on photocell 1 Photocell 2 Self-test enabled only on photocell 2 95 PHOTO-TEST Photocells 1 and 2 Self-test enabled on photocells 1 and 2 Disabled Safety Edge 1 Self-test enabled only on safety edge 1 Safety Edge 2 Self-test enabled only on safety edge 2 SAFETY EDGE...
- Page 17 SPECIAL MENU DESCRIPTION DEFAULT NOTE If the photocell is occupied during closing, the gate Closing reverses the movement; If the photocell is occupied during the pause, it prevents the gate reclosing If the photocell is occupied during opening or closing, it Opening and closing stops the gate movement;...
- Page 18 SPECIAL MENU DESCRIPTION DEFAULT NOTE Opening and closing Safety edge enabled in opening and closing Opening SAFETY EDGE 1 Only opening Safety edge enabled only in opening DIRECTION Closing Only closing Safety edge enabled only in closing Opening and closing Safety edge enabled in opening and closing Opening SAFETY EDGE 2...
- Page 19 SPECIAL MENU DESCRIPTION DEFAULT NOTE Normal Standard photocell without 10K control 121 PHOTO 1 TYPE Photo 1 10K Photocell with 10K control Normal Photo 1 10K DOUBLE Double photocell with 10K control Normal Standard photocell without 10K control 122 PHOTO 2 TYPE Photo 2 10K Photocell with 10K control Normal...
- Page 20 MENU SPECIALE DESCRIZIONE DEFAULT NOTE Disabled To enable the Relay for 3 seconds at every Start or reopening Start 3s command Traffic light management: the green light is switched-on only Traffic light 1 when the gate is open Lock copy The Relay 1 will be ON for the time set on 78-LOCK menu Flashing light copy The Relay 1 repeats the flashing-light functions...
- Page 21 International registered trademark n. 804888 NOTES...
- Page 24 International registered trademark n. 804888 SEA S.p.A. Zona Industriale Sant’Atto - 64100 - Teramo - ITALY Tel. +39 0 861 588341 r.a. www.seateam.com...
