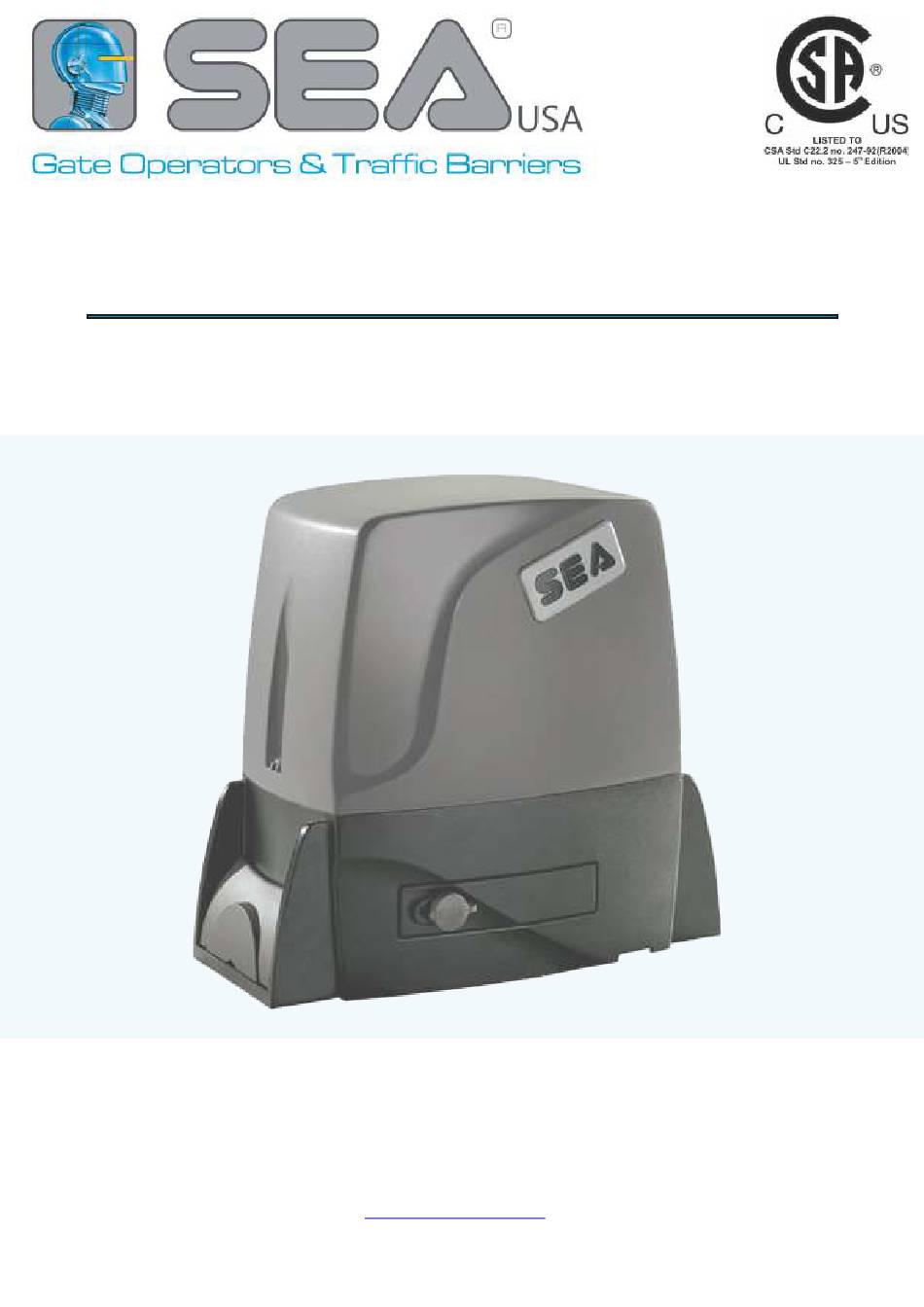

- Page 1 SATURN - BOXER OPERATORS FOR SLIDING GATES SEA USA Inc. 10850 N.W. 21st - unit 160 - Doral - Miami FLORIDA (FL) 33172 Phone: ++ 1 - 305.594.1151 www.sea-usa.com 67411165 REV. 09 - 02/2023...
- Page 2 SAFETY INFORMATION GENERAL SAFETY PRECAUTIONS The following precautions are an integral and essential part of the product and must be supplied to the user; Read them carefully as they contain important indications for the safe installation, use and maintenance. 1. These instruction must be kept and forwarded to all possible future users of the system. 2.
- Page 3 A gate operator shall be provided with the specific instructions describing all user adjustments required for proper operation of the gate. Detailed instructions shall be provided regarding user adjustment of any clutch or pressure relief adjustments provided. The instructions shall also indicate the need for periodic checking and adjustment by a qualified technician of the control mechanism for force, speed, and sensitivity.
- Page 4 The guarantee will be void and the manufacturer responsibility will be nullified if SEA USA Inc. original spare parts are not being used. The electrical installation shall be carried out by a professional technician who will release documentation as requested by the laws in force.
- Page 5 CHANGES TO UL 325 ED. 6TH FOR GATE OPERATORS Starting on Jan. 12, 2016, new UL 325 changes take effect, bringing a series of new mandates for the gate operator industry. Here’s a quick guide to the key modifications 1. E : Gate operators are required to have a minimum of two independent means of NTRAPMENT PROTECTION DEVICES...
- Page 6 1/2” MECHANICAL STOPS SEA operators have been designed for the automation of gates for vehicles use only Be aware to avoid the crossing of the gate path because it is very dangerous for pedestrians Make sure that no person could activate the automation or act on it from the outside...

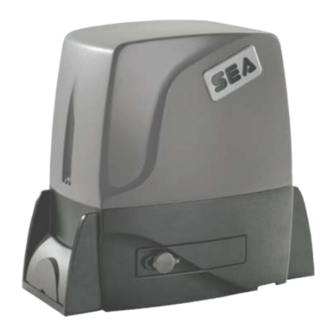

- Page 7 GENERAL FEATURES SATURN and the BOXER are gearmotors designed for the automation of sliding gates. The operators are available in version with grease lubrication or in oil bath version. The irreversibility of the gearmotor allows a perfect and safe closing of the gate avoiding the installation of the electric lock.
- Page 8 32,80 feet 32,80 feet Mechanical clutch Limit switch USAGE RATE 20°C SATURN 500 SATURN 1500 SATURN 1200 FAST SATURN 800 BR TECHNICAL DATA SUPER FAST 24V 36V BRUSHLESS Power Supply 115V~ ± 5% - 50/60 Hz Motor power Absorbed power...
- Page 9 Plinth 2.28 - 2.63 Fig. 3 Fig. 4 CABLES PASSAGE ARRANGEMENT Saturn and Boxer are provided with two different holes for electric cables passage. It’s very important to make the low - HOLE 1 tension 230V~ cables pass through one hole and the very low safety tension 24V cables through the other one (Fig.
- Page 10 4 - INSTALLATION OF THE OPERATOR 4.1. Insert the 4 grub screws into the special holes, in order to adjust the gearmotor height on the plate (Fig. 6) At the end of installation check if the 4 grub screws are well gripped on the foundation plate 4.2.
- Page 11 0.059 inches Fig. 12 Fig. 11 6 - LIMIT SWITCH ADJUSTMENT 6.1. - Fully open the gate : place the plate (Fig. 13) on the rack according to the desired gate stop position; fix the plate on the rack using the screws. : place the plate (Fig.
- Page 12 7 - MAGNETIC LIMIT SWITCH ADJUSTMENT MAX 0.039 inches SLIDING GATE MAGNET LIMIT SWITCH PLATE RACK PINION Fig. 19 Fig. 20 Fig. 21 Fig. 22 8 - GROUNDING E. . S E. . B Fig. 24 Fig. 23 9 - CLUTCH ADJUSTMENT (OPTIONAL) 9.1.
- Page 13 OFF THE POWER SUPPLY BEFORE TO LOCK OR UNLOCK THE OPERATOR N CASE OF MALFUNCTION ALWAYS CONTACT AN AUTHORIZED INSTALLER 12 - RELEASE SYSTEM FOR SATURN AND BOXER 12.1. To release the operator: - Open the lock cover, insert the key and rotate 90° clockwise (Fig. 28) - Pull the release lever until it stops, 90°...
- Page 14 INTENDED USE: The operator has been designed to be used for the automation of sliding gates only SPARE PARTS: Send request for spare parts to: SEA USA Inc. - Doral - MIAMI - (FL) 33172 - www.sea-usa.com SAFETY AND ENVIRONMENTAL COMPATIBILITY: Don’t waste product packing materials and/or circuits STORAGE: T = -4°F/+149°F ;...
- Page 15 PRICES: Prices are based on the Price List in force. Discounts and quotation from Sales Dept. and other selling branches must be approved by SEA. Prices are F.O.B SEA Warehouse in Miami and do not include shipments costs. SEA reserves the right to modify the price list at any time and provide notice to its sales network.
- Page 16 SEA USA Inc. 10850 N.W. 21st - unit 160 - Doral - Miami FLORIDA (FL) 33172 Phone: ++ 1 - 305.594.1151 www.sea-usa.com...
