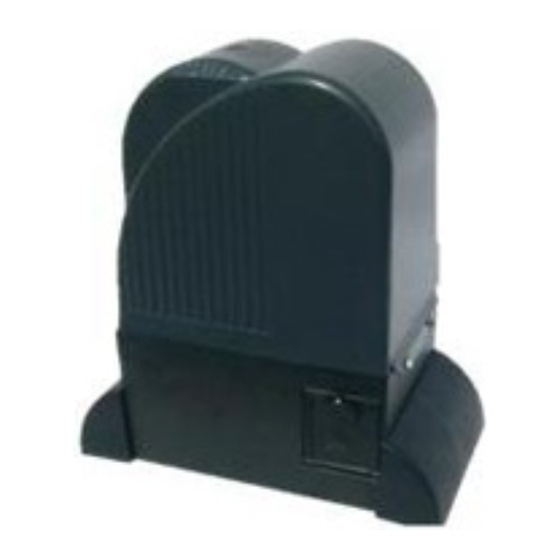

SEA 1110 Important Safety Instructions Manual

SEA USA Inc.
10850 N.W. 21st unit 160 DORAL MIAMI
Florida (FL) 33172
Phone:++1-305.594.1151 Fax: ++1-305.594.7325
Toll Free: 800.689.4716
International registered trademark n. 2.777.971
READ AND FOLLOW ALL INSTRUCTIONS
GENERAL
This swing gate operator system is designed to control vehicular traffic only. This operator system must never be used as a
means to control pedestrian or bicycle traffic. Serious injury or death to pedestrians may result if this operator is used in this
manner.
If pedestrian traffic is expected to be near or needs to walk through, a separate pedestrian lane or pedestrian gate is required.
Never allow pedestrians or pets to pass through this gate system.
Reversing devices are required to prevent the gate from closing on vehicular traffic. It is appropriate to the gate design and
gate application.
This vehicular gate operator is intended to be a part of a total gate operating system. It is the responsibility of the purchaser
and installer to ensure the total system is sale for its intended use.
BEFORE INSTALLATION
Check to be sure this is the proper gate operator system for the intended use.
Be sure the gate has been properly installed, gate posts are plumb and gate leafs operate freely. Make any necessary repairs
to the gate before installing this equipment.
A separate pedestrian gate is required if pedestrian traffic is expected to be near or if pedestrians need to walk through.
Furthertnore, photo-eyes and/or reversing edges need to be added to help prevent injuries.
Only qualified personnel should install this equipment. Failure to meet this requirement could cause severe injury and/or
death, for which the manufacturer/distributor can not be held responsible.
Review this installation manual and the gate operator system prior to installation, maintenance and service.
DURING INSTALLATION
Check that the main power supply circuit breakers are separate, intended solely for this equipment and rated for 15 AMPS.
Visually check that the circuit breakers are in the "OFF" position and mark the circuit breakers "USED" prior to installation.
Place all access devices a minimum of 10 feet away from the gate. Install access devices in a way the user can see, but not
touch the operator and/or gate while operating the controls. Install controls so that unauthorized use is prevented.
Reversing devices such as loops, photo-eyes, and/or reversing edges are required to prevent the gate from closing on
vehicular traffic and/or help prevent injuries to pedestrians. It is appropriate to the gate design and application.
Always disconnect power supply when servicing this equipment.
If this gate operator system includes a battery backup, the battery backup system needs to be disconnected first, prior to
disconnecting main power supply during installation, maintenance and servicing procedures.
AFTER INSTALLATION
Check to make sure the gate operator system is working properly, that the open and close force are properly adjusted, that the
piston does not bottom out in either direction, that breather screws have been removed, that the positive stops used are
sufficient for stopping the gate properly, and that all pinch points and potential entrapment areas are reduced.
Check and test all reversing devices for proper operation.
The installer of this system needs to read and understand the operation of this gate operator system, its safety features and
know how to place the gate in manual operation.
Show end user the proper operation of this gate system. Explain how the reversing system works. Show user how to place
gate operator system in manual operation.
This manual is to be left with the end user.
SAVE THESE INSTRUCTIONS
1110, 1111 (Lepus Series)
