International registered trademark n. 2.777.971

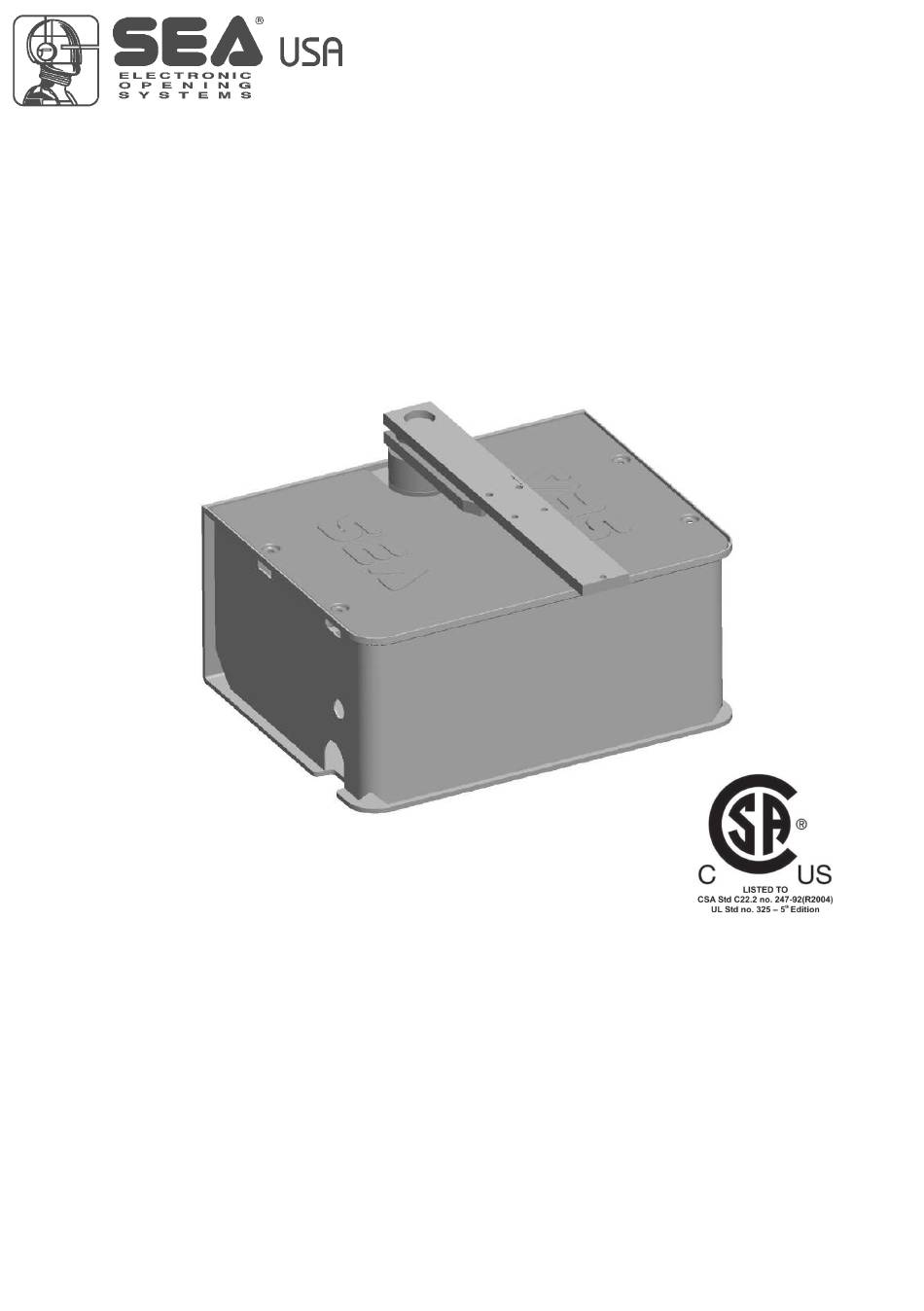

COMPACT
SUPER COMPACT
INSTALLATION MANUALS
AND SAFETY INFORMATION
SEA USA Inc.
10850 N.W. 21st unit 160 DORAL MIAMI
Florida (FL) 33172
Phone:++1-305.594.1151 Fax: ++1-305.594.7325
Toll Free: 800.689.4716
web site: www.sea-usa.com
e-mail: sales@sea-usa.com
REV 05 - 04/2018
67410796
Advertisement
Related Manuals for SEA COMPACT Series
Summary of Contents for SEA COMPACT Series
- Page 1 International registered trademark n. 2.777.971 COMPACT SUPER COMPACT INSTALLATION MANUALS AND SAFETY INFORMATION SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716 web site: www.sea-usa.com e-mail: sales@sea-usa.com REV 05 - 04/2018...
- Page 2 International registered trademark n. 2.777.971 IMPORTANT SAFETY INFORMATION GENERAL SAFETY PRECAUTIONS The following precautions are an integral and essential part of the product and must be supplied to the user Read them carefully as they contain important indications for the safe installation, use and maintenance. 1.
- Page 3 International registered trademark n. 2.777.971 GENERAL SAFETY INFORMATION An appliance shall be provided with an instruction manual. The instruction manual shall give instructions for the installation, operation, and user maintenance of the appliance. The installation instructions shall specify the need for a grounding-type receptacle for connection to the supply and shall stress the importance of proper grounding.
- Page 4 The installer shall follow the provided instructions thoroughly. SEA products must only be used to automate doors, gates and wings. Any initiative taken without SEA USA Inc. explicit authorization will preserve the manufacturer from whatsoever responsibility.
- Page 5 International registered trademark n. 2.777.971 5. The End of Type E. Type E (audible alarm) devices can no longer be used for entrapment protection. This change was made because the Type E device is really a warning device, not an entrapment-protection device. Also, all gate operator classes are now required to have an audio alarm that sounds when two successive obstructions are encountered via a contact-type system.
- Page 6 Install the warning signs, on each side of the gate and in avisible zone which informs the pedestrians about the danger they run when passing or resting in the environment of the gate (fig. 5). Important: For a higher security, SEA advices to install infrared photocells. Fig. 4 Fig. 5...
- Page 7 International registered trademark n. 2.777.971 FEATURES AND SPECIFICATIONS Compact 120V/230V and Super Compact 120V/230Vconsists of a hydraulic pump and a hydraulic jack, both of which coupled in a supporting box treated with cataphoresis. The pump unit casing, which is used as an oil tank, contains the electric motor, fluid pump, distributor and hydraulic oil. It is also provided with an adjustable slowing-down device in the two stop phases of the leaf (versions with slow-down only).
- Page 8 International registered trademark n. 2.777.971 TECHNICAL SPECIFICATIONS TECHNICAL DATA COMPACT 1600 120V COMPACT 1600 230V Power supply 120V (50/60 Hz) 230V (50/60 Hz) Motor Power 300 W 220 W Absorbed current 2,45 A 1,35 A Motor rotation speed 1635 rpm Cycles hour (with a 68°F temperature) Max Pressure 0,13 Gal.
- Page 9 International registered trademark n. 2.777.971 MECHANICAL INSTALLATION 2. TYPICAL INSTALLATION Fig. 8 operator 4) Photocell tx 7) Radio receiver 9) Warning notice inside COMPACT/SUPER COMPACT 2) Electric lock 5) Photocell rx 8) Key switch 10) Warning notice outside 3) Electronic Control Unit 6) Photocells 3.
- Page 10 International registered trademark n. 2.777.971 3.2. Inside the excavated pit you have to plan: - rain water drainage; - a water waste pipe in flexible plastic of about 1,5 inches of diameter to put inside the provided hole of the box before it is concreted (Fig.
- Page 11 International registered trademark n. 2.777.971 3.4. introduce the buckle of creeping in the box and fix it with the Fig. 13 special screws (Fig. 13). 3.5. Insert the units as in Fig. 13. N.B.: During the insertion of the units lubricate them with supplied grease.
- Page 12 International registered trademark n. 2.777.971 4.3. Be careful not to place the leaf outside the axis (Fig. 17 and 18), but make sure the shaft corresponds to the hinge rotation axis remembering that the minimum distance from the pillar is 2,16 inches (Fig. 19). Fig.
- Page 13 Fig. 22 5.2.Carry out the electrical connections to the control unit as described in the instructions supplied with SEA control unit. After ending all the operations in the installation of the above mentioned carrying box, of the gate and the operator, try to do some moves slowly by hand verifying that there are not irregular frictions and that the movement is uniform for the whole range.
- Page 14 (Fig. 24) Release Release Plus Fig. 24 Fig. 25 Carry out the electrical connections to the control unit as described in the instructions supplied with SEA control unit. 8. ADJUSTABLE MECHANICAL STOPS Fig. 28 Fig. 26 Fig. 29 Fig. 27...
- Page 15 International registered trademark n. 2.777.971 Fig. 32 Fig. 30 Fig. 31 Inside Inside 105° Outside Outside -15° RIGHT LEFT Max. Angle with mechanical stops kit When putting in function the installation it is peremptory to lubricate the box as in Fig. 31 until the grease comes out. (Use grease typeDIN 51502 KP 2 N-20 - K 2 K-20) Fig.
- Page 16 International registered trademark n. 2.777.971 11. COMPACT/SUPER COMPACT ACCESSORIES EXTERNAL LOOP DETECTORS KEY SWITCH TRANSMITTER PHOTOCELLS RADIO RECEIVER SAFETY GATE MAGNETIC LOCK CARD ELECTRIC LOCK MAGNETIC LOCK BATTERY BACK-UP FLASHING LAMP To the attention of users and technicians RELEASE SYSTEM OF THE LEAVES RELEASE Fig.
- Page 17 These instructions are part of the device and must be kept in a well known place. The installer shall follow the provided instructions thoroughly. SEA USA Inc. products must only be used to automate doors, gates and wings. Any initiative taken without SEA USA Inc.
- Page 18 PAYMENT: Method of payments and terms are notified by SEA and displayed on the commercial invoice. DELIVERY: The delivery time on the invoice is not binding and represents an estimated delivery. Shipments costs will be charged to the buyer and SEA is not responsible for delays and/or damages occurred to the products during shipment.
- Page 20 International registered trademark n. 2.777.971 SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 USA Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716 web site: www.sea-usa.com e-mail: sales@sea-usa.com...
