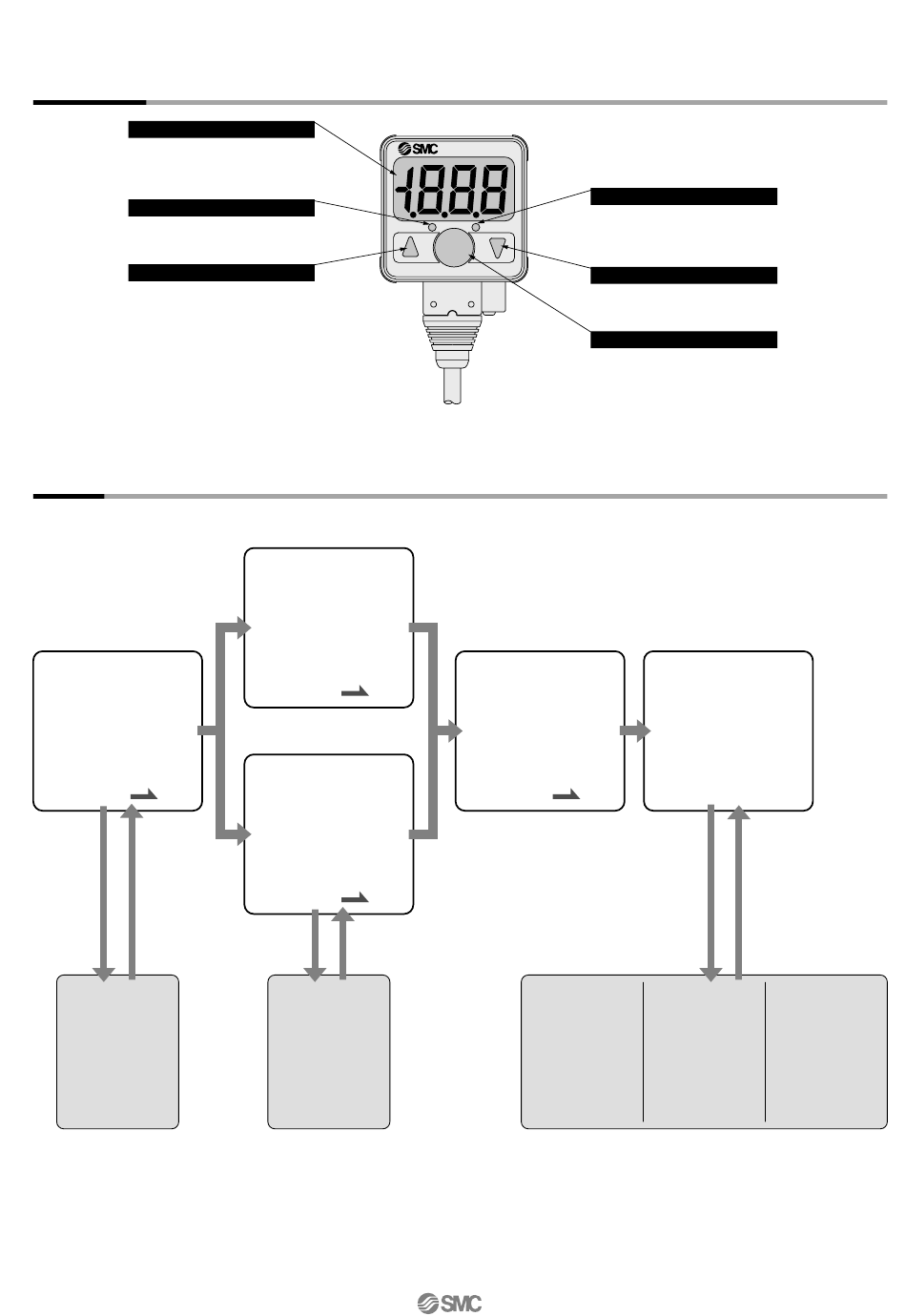

Description (Common to ZSE50F/ISE50 and ZSE60F/ISE60)
3 1 / digit LED
2
Displays current pressure
Displays current mode
Displays error mode
LED (Green)
Displays OUT 1 switch output status
Lights up when ON
UP button
Use this button to change the mode
or set value.
Setting (Common to ZSE50F/ISE50 and ZSE60F/ISE60)
Calibration procedure
Initial setting
Set "Output mode", "Res-
ponse time" and "Auto/
Manual mode."
P.14
Unit conversion
Display unit can be
changed (for over-
seas use only).
13
50
60
OUT1
Manual
calibration
Enter the set value on
the pressure to perform
switch output.
P.14
Auto preset
The pressure set point is
calibrated automatically
at the time of adsorption
or primary pressure con-
firmation.
P.15
Manual
fine adjustment
The data set by
auto preset func-
tion is fine turned.
kPa
LED (Red)
Displays OUT 2 switch output status
OUT2
Light up when ON
SET
Down button
Use this button to change the mode
or set value.
Set button
Use this button to change the mode
or set value.
Value clear
Adjust the zero point of
atmospheric pressure.
P.16
Key lock
Prevents incorrect
operation such as
overwriting set po-
int value by mis-
take.
Normal
operation
Detects and displays pres-
sure and operates switch.
Peak hold Bottom hold
Can retain the ma- Can retain the min-
ximum pressur dis- imum pressure dis-
played during me-
played during mea-
asurement. surement.
