Forest-Master Fast Fire FM6FFE Manual page 16

REAR
REAR

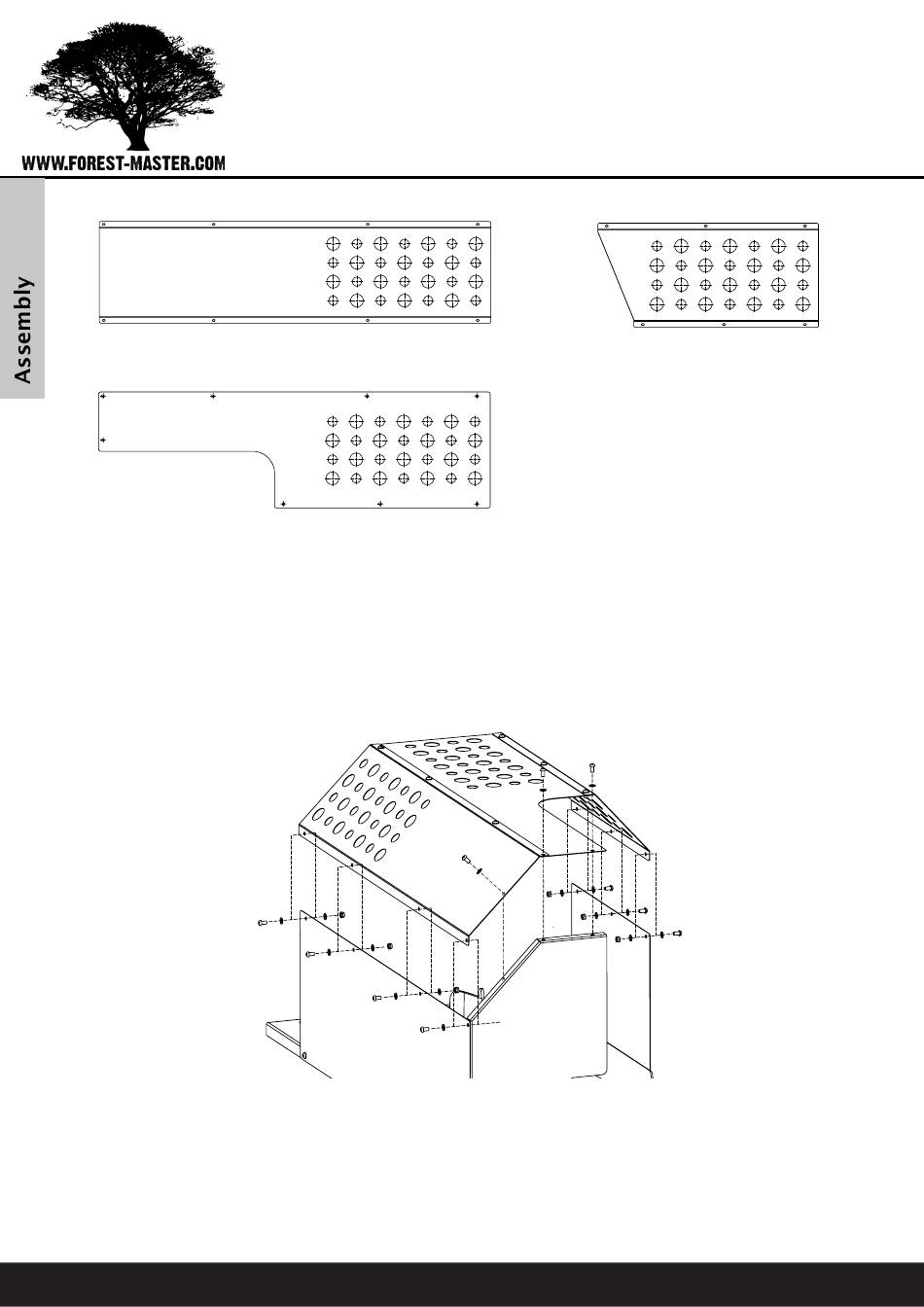

Fasten the assembled top section to the side panels and the rear panel using 10 M6x12 button head
bolts, 20 M6 flat washers one either side of the panels for each bolt and an 10 M6 nyloc nut.
Note that the flanges of the angled panels go outside of the plain side panels.
You should now fully tighten all nuts and bolts for the guard and tray.
16
BOTTOM
TOP
Long Angled Panel
LEFT
RIGHT
Top Panel
FRONT
REAR
Short Angled Panel
FRONT
FM6FF & FM8FF (Electric & Petrol
TOP
FRONT
BOTTOM
