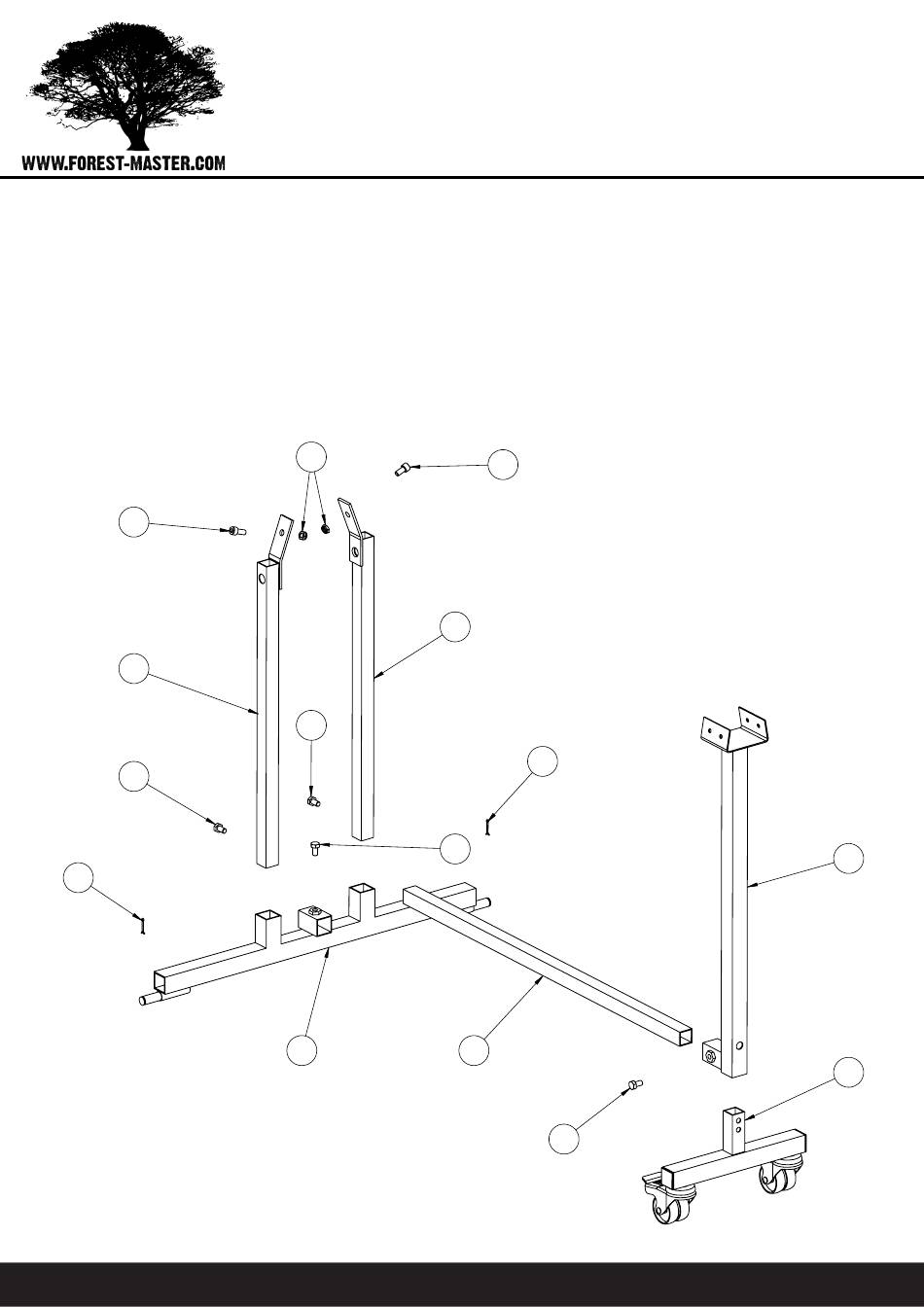

The stand package contains
2 x Rear Legs
1 x Front Leg
1 x Rear Axle Bar
1 x Longitudinal Support Bar
4 x M8 x 15 Bolts
2 x M8 x 20 Allen Head Bolts
2 x M8 Nuts
2 x Split Pins
1 x Castor Foot
6
1
5
8
1

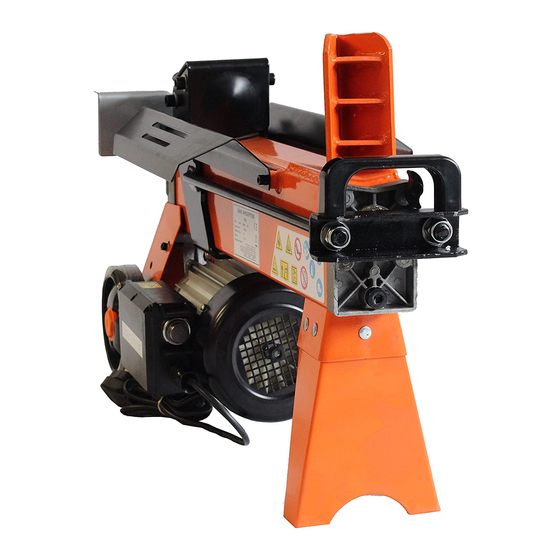

FM5, FM8 & FM10 LOG SPLITTER
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
7 7
5
3
FM5, FM8 & FM10 Log Splitter Trolley
TROLLEY ASSEMBLY
6
1
8
5
4
5
2
9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Forest-Master FM5
Summary of Contents for Forest-Master FM5
- Page 1 1 x Rear Axle Bar 1 x Longitudinal Support Bar 4 x M8 x 15 Bolts 2 x M8 x 20 Allen Head Bolts 2 x M8 Nuts 2 x Split Pins 1 x Castor Foot FM5, FM8 & FM10 Log Splitter Trolley...
- Page 2 If using a screwdriver, insert it into a gap HUB CAP between the circlip and axle, lever one end off then the other. Retain the circlips for attaching the wheels to the stand. Remove the wheels. CIRCLIP FM5, FM8 & FM10 Log Splitter Trolley...
- Page 3 NOTE: The FM5 and FM8 have a different front leg to that shown. In this case the M8 x 35 bolt and M8 nut will be in with the stand nuts and bolts.
- Page 4 6. Attach the rear axle bar and wheel assembly to the rear legs using 2 of the M8 x 15 bolts(5). Note that there are no holes in the rear legs for the bolts. The bolts tighten up against the legs. FM5, FM8 & FM10 Log Splitter Trolley...
- Page 5 2 of the M8x15 bolts(5). Note that the bolts tighten against the longitudinal beam, there are no holes in it. Note that the stand is designed to fit the FM5, FM8 & FM10 log splitters, therefore the longitudinal beam will protrude out the rear of the wheel cross beam. For the FM5 &...
