Forest-Master Fast Fire FM6FFE Manual page 14

The following steps for fitting the safety guard are only necessary in the EU. Outside of the EU you can
go staright to page 18.

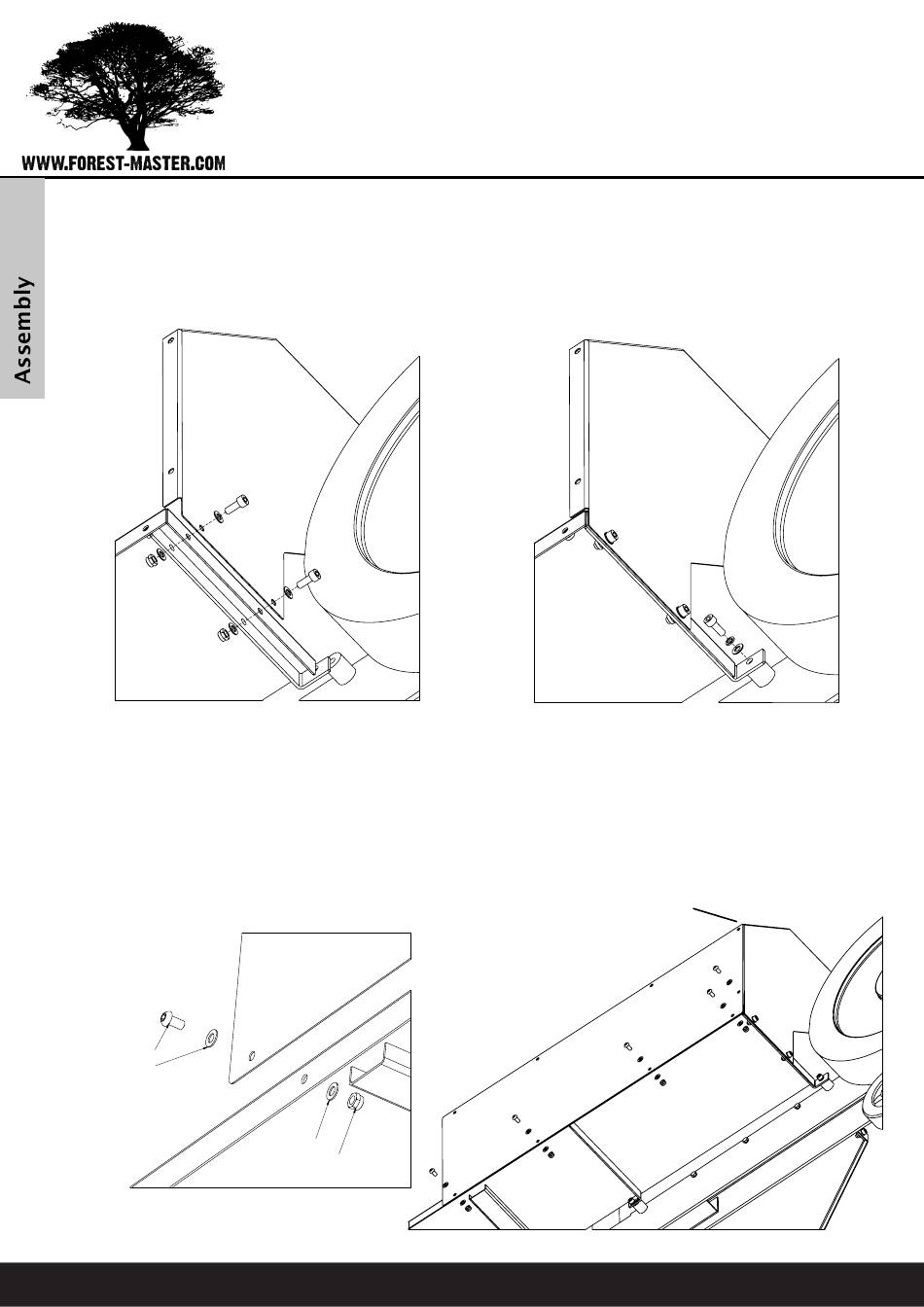

Fit the long rear mounting bracket to the inside face of the long rear edge of the tray and the rear cage
panel to the outside face, using 2 M6x16 cap head bolts, 4 M6 flat washers and 2 M6 nyloc nuts. Then
attach the rear bracket to the mounting point on the splitter using an M6x16 cap head bolt, M6 spring
washer and M6 flat washer.
Attach the longer of the two plain cage panels to the left side of the tray and the rear cage panel. The
bottom rear corner has two closely spaced holes,. The top rear corner has a single hole approximately
10mm from the rear edge.
Use 5 M6x12 button head bolts, 10 M6 flat washers (1 under each bolt head and 1 under each nut)
and 5 M6 nyloc nuts.
M6X12 SOCKET HEAD BOLT
M6 FLAT WASHER
14
M6 FLAT WASHER
M6 NYLOC NUT
Do not add a nut
and bolt at this
stage.
FM6FF & FM8FF (Electric & Petrol
