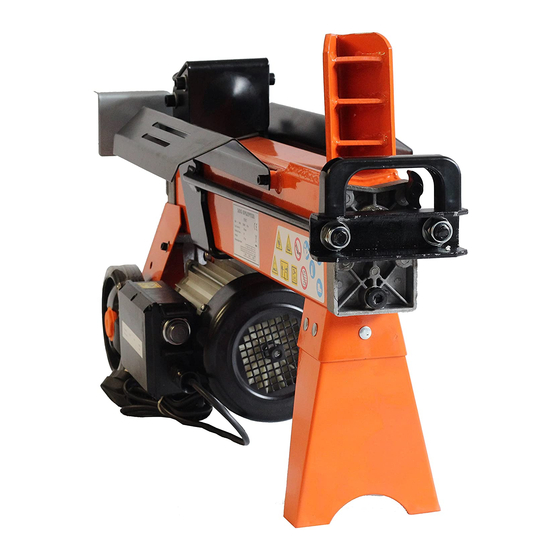

Forest-Master FM5 Stand Assembly

Hide thumbs Also See for FM5:

Download this manual

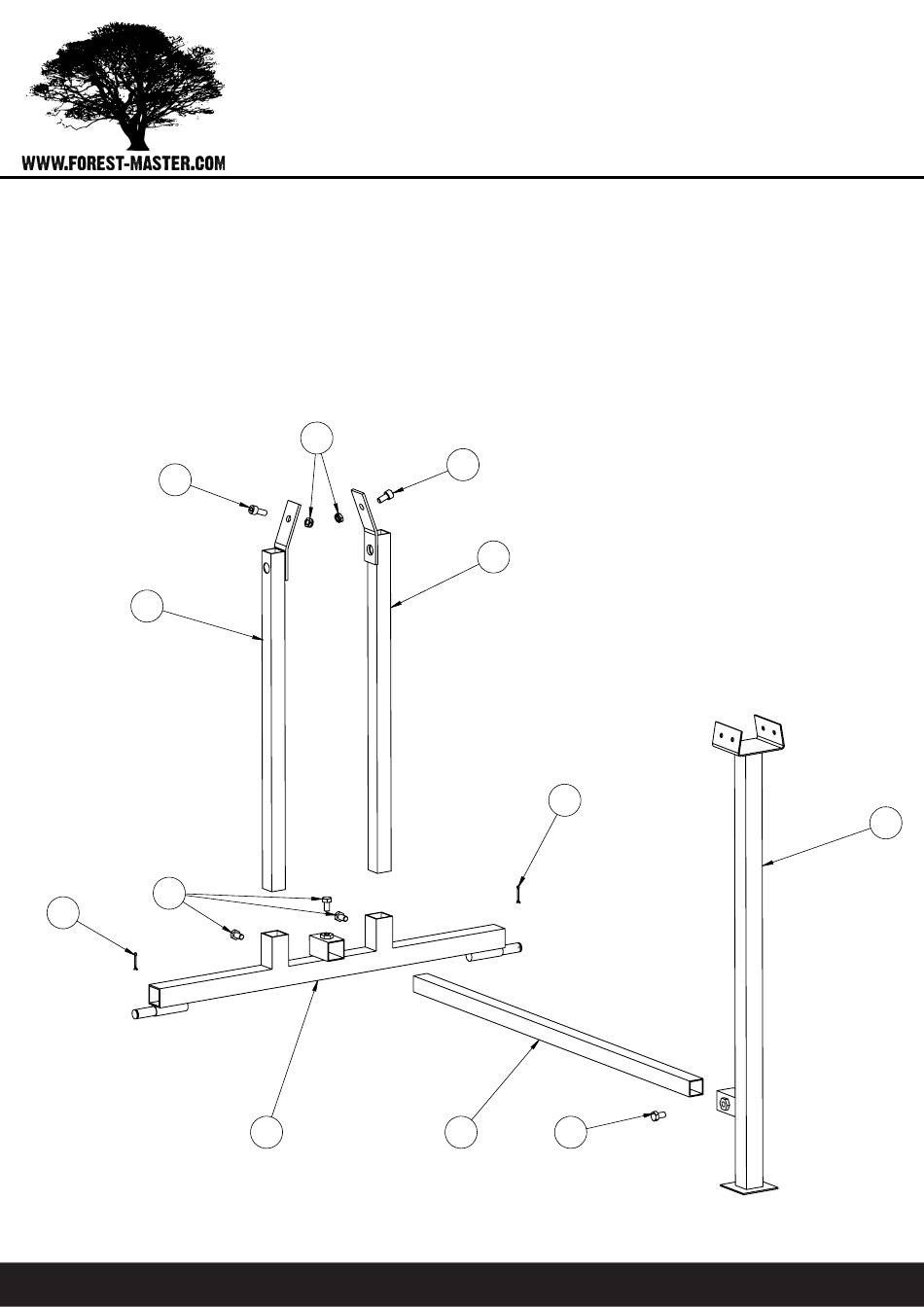

The stand package contains

2 x Rear Legs

1 x Front Leg

1 x Rear Axle Bar

1 x Longitudinal Support Bar

4 x M8 x 15 Bolts

2 x M8 x 20 Allen Head Bolts

2 x M8 Nuts

2 x Split Pins

5 5 5

FM5, FM8 & FM10 LOG SPLITTER

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

7 7

FM5, FM8 & FM10 Log Splitter Stand

STAND ASSEMBLY

Need help?

Do you have a question about the FM5 and is the answer not in the manual?

Page 1 1 x Rear Axle Bar 1 x Longitudinal Support Bar 4 x M8 x 15 Bolts 2 x M8 x 20 Allen Head Bolts 2 x M8 Nuts 2 x Split Pins 5 5 5 FM5, FM8 & FM10 Log Splitter Stand...
Page 2 If using a screwdriver, insert it into a gap HUB CAP between the circlip and axle, lever one end off then the other. Retain the circlips for attaching the wheels to the stand. Remove the wheels. CIRCLIP FM5, FM8 & FM10 Log Splitter Stand...
Page 3 To secure the wheels, you can either reuse the circlips or use the additional split pins supplied. Refit the hubcaps, these just push on. Reuse circlips or use split pins to attach FM5, FM8 & FM10 Log Splitter Stand...
Page 4 6. Attach the rear axle bar and wheel assembly to the rear legs using 2 of the M8 x 15 bolts(5). Note that there are no holes in the rear legs for the bolts. The bolts tighten up against the legs. FM5, FM8 & FM10 Log Splitter Stand...
Page 5 2 of the M8x15 bolts(5). Note that the bolts tighten against the longitudinal beam, there are no holes in it. Note that the stand is designed to fit the FM5, FM8 & FM10 log splitters, therefore the longitudinal beam will protrude out the rear of the wheel cross beam. For the FM5 &...

Fm8 Fm10
