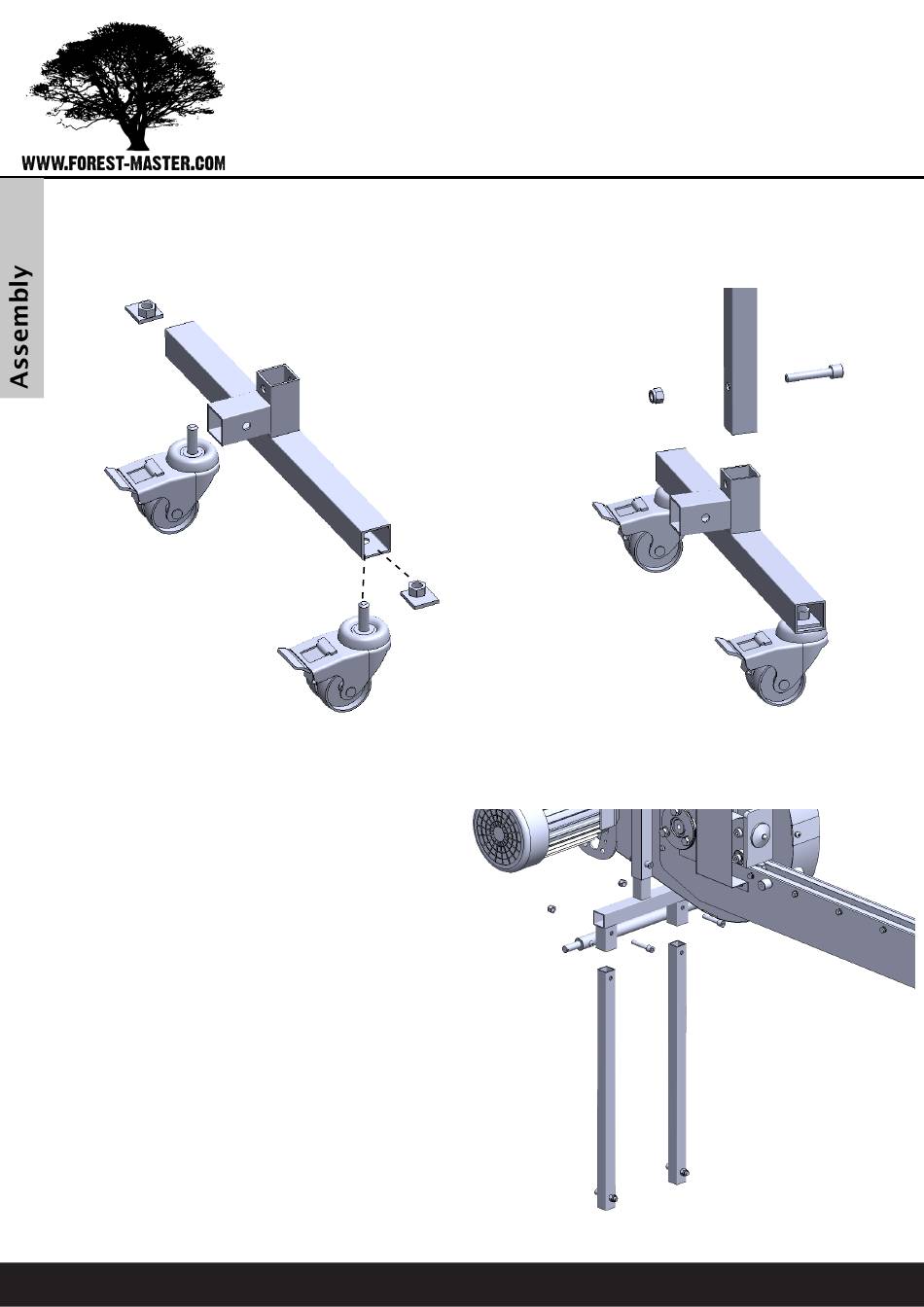

Fasten the castors (part 2) to the front foot (part 6). Use the plate nuts that are fitted to the castors for
shipping. The nut on the plate nut is offset to one end of the plate to make it easier to locate the nut
over the hole in the front foot. Then attach the assembled foot to the bottom of the front leg using the
remaining bolts and nut that were removed from the front leg.
Fit the rear legs (part 8) to the rear leg
mount. Note that the bolt holes in the rear
legs are not symetrical top to bottom. One
hole is 15mm from the end the other is
25mm from the end.
Remove the bolt and nut from the hole
that is 15mm from the end and fit this end
into the socket on the rear leg mount then
secure with the bolt and nut.
