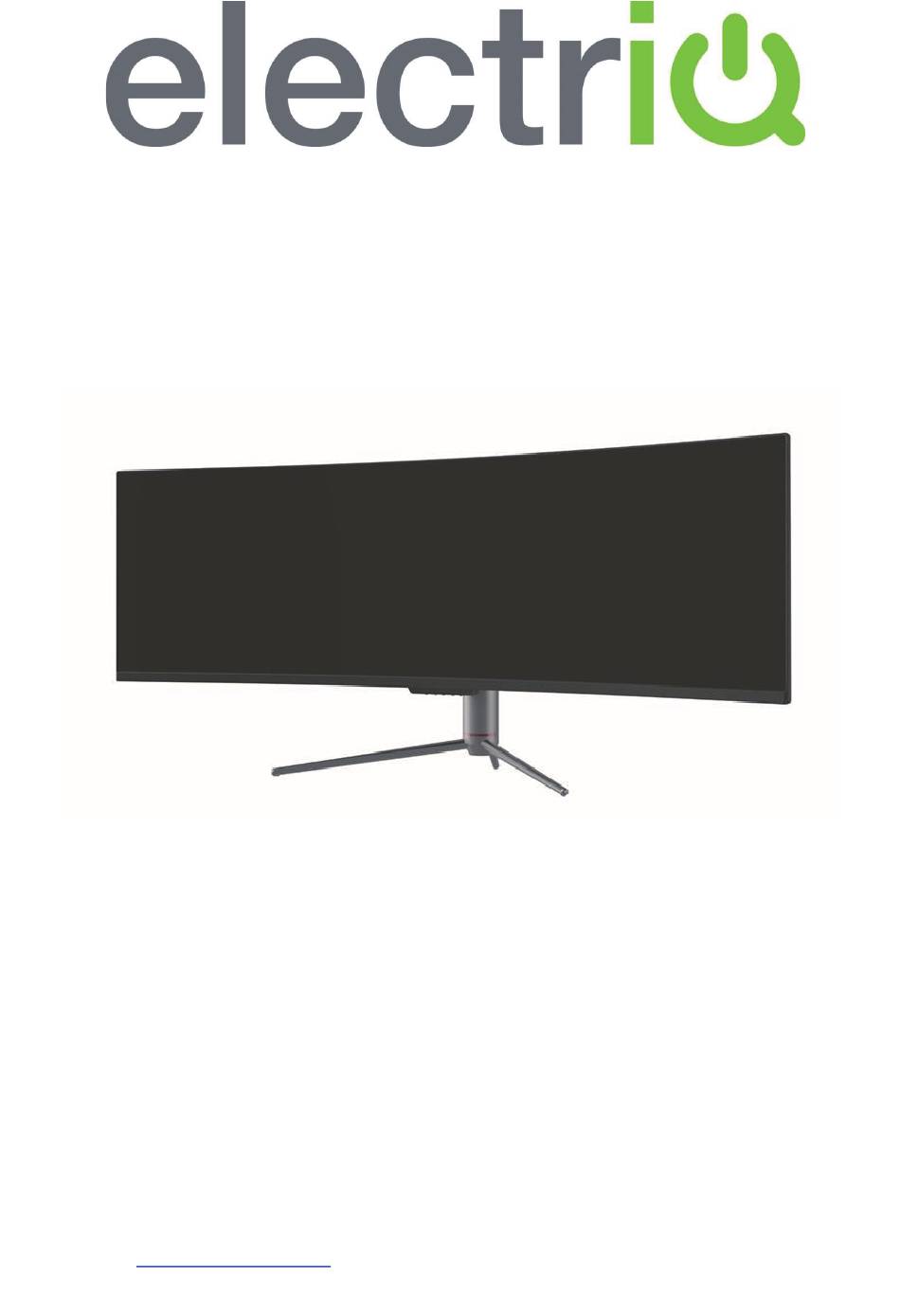

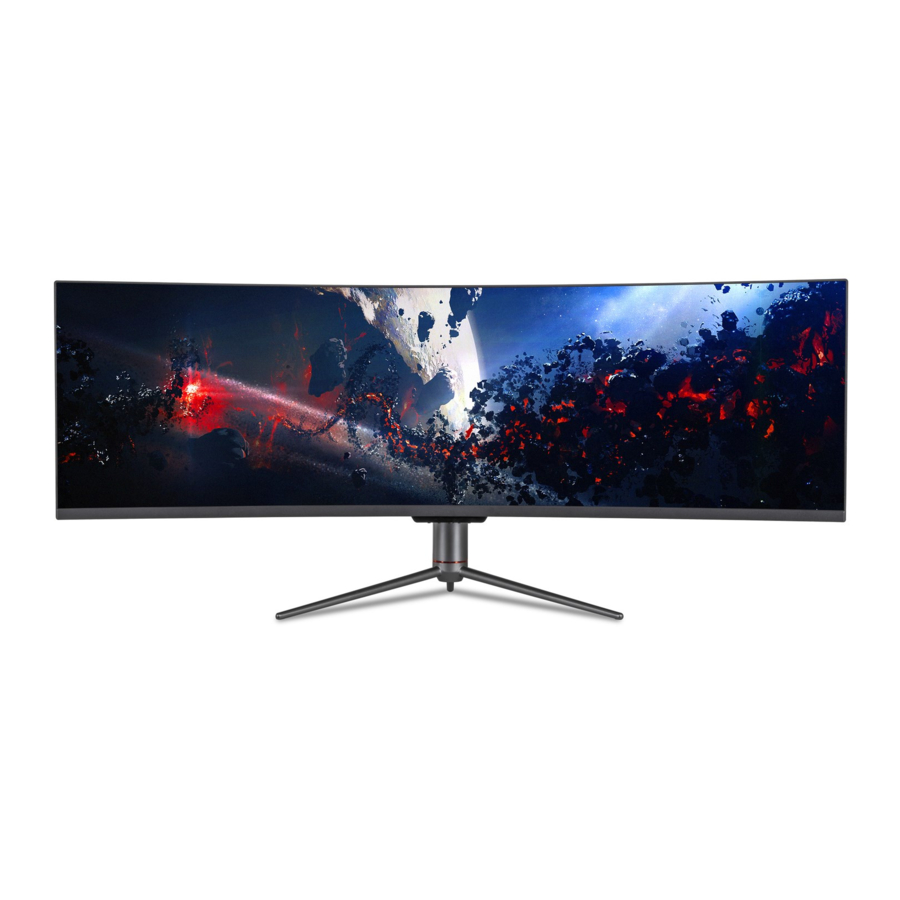

- Page 1 USER MANUAL 49” LED MONITOR eiQ-49CV5UWD120FSHQA Thank you for choosing electriQ Please read the user manual before using this monitor and keep it safe for future reference Visit www.electriQ.co.uk to view our en�re range of Intelligent Electricals...
-
Page 2: Table Of Contents
CONTENTS SAFETY WHATS INCLUDED STAND INSTALLATION WALL MOUNTING CONNECTIONS GETTING STARTED MONITOR CONTROLS INITIAL SET UP SHORTCUT BUTTONS MENU OPTIONS OSD MENU INPUT BRIGHTNESS/CONTRAST COLOUR PICTURE QUALITY DISPLAY AUDIO MULTI-WINDOW OTHER TECHNICAL SPECIFICATION TROUBLESHOOTING SUPPORT... -
Page 3: Safety
SAFETY INFORMATION Read these instructions - All the safety and operating instructions should • be read before this product is operated. Keep these instructions - The safety and operating instructions should be • retained for future reference. Heed all warnings - All warnings on the appliance and in the operating •... - Page 4 inside. Trying to service the unit yourself is dangerous and may invalidate the product's warranty. Only qualified personnel should service this apparatus. Do not block ventilation slots on the back cover. The monitor can be • placed in a cabinet but ensure at least 5cm (2") clearance all around. Do not tap or shake the screen, this may damage internal components.
-
Page 5: Whats Included
WHAT’S INCLUDED 15 mm MONITOR SCREW BOLTS MOUNTING SCREW BOLTS DP CABLE POWER SUPPLY REMOTE CONTROL USER MANUAL STAND (UPRIGHT SECTION) STAND BASE... -
Page 6: Stand Installation
that they are unpacked and assembled by 2 people. electriQ and its distributors and dealers are not liable or responsible for damage or injury caused by improper installa�on, improper use or failure to observe these safety instruc�ons. In such cases any guarantee will expire. -
Page 7: Wall Mounting
WALL MOUNT INSTALLATION This monitor ONLY includes screws which may be used when a�aching the monitor to a mount. No mount or moun�ng accessory is included. Open the package, take out the product with foam s�ll a�ached, and gently place it on a desktop or table. -
Page 8: Connections
Please follow the instruc�ons provided by the wall bracket manufacturer and ensure that all fixing screws supplied are used. electriQ and its distributors and dealers are not liable or responsible for damage or injury caused by improper installa�on, improper use or failure to observe these safety instruc�ons. In such cases any guarantee will expire. -
Page 9: Getting Started
GETTING STARTED MONITOR CONTROLS Select signal source or Exit the menu Go Up within the Main Menu or increase the value of the selected item Go Down within the Main Menu or decrease the value of the selected item Enter the Main OSD Menu and Select submenu Turn the monitor on or Off... -
Page 10: Shortcut Buttons
SHORTCUT BUTTONS The monitor includes one touch op�ons to access common se�ngs. e c o Power Off Main Menu Switch HDMI 4K or HDMI 5K Display Crosshairs Scene mode switching MENU OPTIONS The menu for the monitor can be accessed by pressing the menu bu�on on the control panel. This menu is separated into the following sub menus: Input source, Brightness/Contrast, Colour Se�ngs, Picture Quality Se�ngs, Display, Audio, OSD (On screen display), and other. -
Page 11: Osd Menu
OSD MENU INPUT SOURCE HDMI1 Resolution: 3840x2160@30Hz SDR HDMI1 HDMI2 InputSource: HDMI1 InputSource： Resolution: 3840x2160@30Hz Resolution： InputSource: InputSource： Resolution: Resolution： Switch the signal input or select the source. DP 1, DP2, HDMI1, Signal HDMI2 BRIGHTNESS/CONTRAST HDMI1 Resolution: 3840x2160@30Hz SDR Brightness Blacklevel Contrast InputSource: HDMI1... -
Page 12: Colour
COLOUR SETTINGS HDMI1 Resolution: 3840x2160@30Hz SDR Gamma Picture Mode Standard Color Temperature Warm Low Blue Light Saturation InputSource: HDMI1 InputSource： Resolution: 3840x2160@30Hz Resolution： InputSource: InputSource： Resolution: Resolution： Gamma Change the Gamma value for the display between 1.8, 2.0, 2.2, 2.4, 2.6 Picture Mode Change the picture mode between Standard, Photo, Movie, Game, FPS and RTS. -
Page 13: Display
DISPLAY HDMI1 Resolution: 3840x2160@30Hz SDR Aspect Ratio Wide Screen HDMIEDID SwitchMode HDMI 5K InputSource: HDMI1 InputSource： Resolution: 3840x2160@30Hz Resolution： InputSource: InputSource： Resolution: Resolution： Aspect Ra�o Change the image aspect ra�o to Wide Screen. 4:3 Auto. 1:1 HDMI Switch Change switch between HDMI 4K or HDMI 5K. Mode AUDIO HDMI1... -
Page 14: Multi-Window
MULTI-WINDOW HDMI1 Resolution: 3840x2160@30Hz SDR Multi-Window Sub Win2 Input Sub Win3 Input HDMI1 Sub Win4 Input HDMI2 Swap InputSource: HDMI1 InputSource： Resolution: 3840x2160@30Hz Resolution： InputSource: InputSource： Resolution: Resolution： Choose the different formats of mul� window display between Off, Picture Mul�-Window in Picture (PIP) and Picture By Picture (PBP 2Win) Choose the source of the second window between DP1 , DP2, HDMI1, Sub Win2 Input... -
Page 15: Other
OTHER HDMI1 Resolution: 3840x2160@30Hz SDR DP Version DP1.4 FreeSync(Adaptive Sync) Reset InputSource: HDMI1 InputSource： Resolution: 3840x2160@30Hz Resolution： InputSource: InputSource： Resolution: Resolution： DP Version Change the DP version FreeSync Turn Free Sync On or Off. (Adap�ve Sync) Turn the HDR on or off. Reset Restore factory default se�ng. -
Page 16: Technical Specification
SPECIFICATION Product Model eiQ-49CV5UWD120FSHQA Screen Size 49” Diagonal Panel Type VA Panel Aspect Rao 21:9 Power Supply AC 100-240V ~ 50/60Hz, 2.0A Power Consump�on 80W Type, 105W Max Dimensions (with stand) 1178.4 * 466.02 * 240 .18 mm Net / Gross Weight 11.0 kg / 14.8 kg... -
Page 17: Troubleshooting
Please contact the local council for details of your local household waste recycling centers electriQ UK SUPPORT www.electriQ.co.uk/support Call: 0330 390 3061 Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk... - Page 18 108.007.13171 H3CQR-HQ eiQ-49CV5UWD120FSHQA EIectriQ 2020.12.07 140*19 7mm 封面封底 120G 铜版纸， 内页 铜版 纸 彩色骑马订 zhanglei 备注：不够页数在封面封底的内页加空白页...
