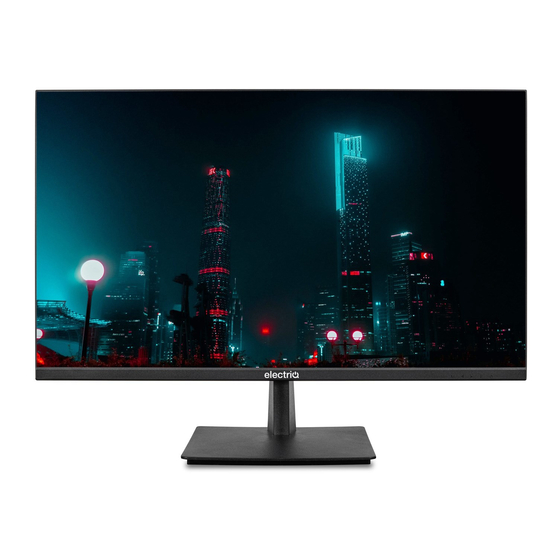

- Page 1 USER MANUAL 23.8 INCH SLIM LED MONITOR eiQ-24FHD75IS Thank you for choosing electriQ Please read the user manual before using this monitor and keep it safe for future reference Visit www.electriQ.co.uk to view our entire range of Intelligent Electricals.
-
Page 2: Table Of Contents
CONTENTS SAFETY INFORMATION WHATS INCLUDED MONITOR DIMENSIONS CONNECTIONS AVAILABLE ON THE MONITOR WALL MOUNTING GETTING STARTED INITIAL SET UP MENU OPTIONS BRIGHTNESS IMAGE SETUP COLOUR SETUP OSD SETUP RESET EXTRA TECHNICAL SPECIFICATION SUPPORT... -
Page 3: Safety Information
SAFETY INFORMATION • Read these instructions - All the safety and operating instructions should be read before this product is operated. • Keep these instructions - The safety and operating instructions should be retained for future reference. • Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to. - Page 4 • Disconnect the power immediately and seek professional help if the plug or cable is damaged, liquid has spilt onto the unit, if accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the unit does not work normally. •...
-
Page 5: Whats Included
WHATS INCLUDED USER MANUAL POWER SUPPLY POWER CABLE HDMI CABLE... -
Page 6: Connections Available On The Monitor
CONNECTIONS AVAILABLE ON THE MONITOR HDMI AUDIO DC 12V HDMI port: Used to connect a compatible device. Supports HDMI 1.4 & 2.0; VGA: Used to connect a compatible VGA device. Audio Output Port: Used for connecting headphones, or external speakers. DC Input Port: Connect the supplied power supply to power the monitor WALL MOUNTING •... -
Page 7: Initial Setup
INITIAL SETUP Connect the monitor to a power outlet. Press the POWER button to turn it on (The indicator will be blue) Connect the relevant cable to the corresponding input on the monitor. The source will be automatically detected. To change between inputs, press to enter the source menu. -
Page 8: Image Setup
IMAGE SETUP H. POSITION (VGA ONLY) Allows adjustment of the horizontal position of the image. Use the buttons to horizontally move the image. V. POSITION (VGA ONLY) Allows adjustment of the vertical position of the image. Use the buttons to vertically move the image. -
Page 9: Osd Setup
OSD SETUP LANGUAGE Allows selection of desired language for the OSD between ENGLISH, FRENCH, TURKISH, ITALIAN, SPANISH, PORTUGUESE, CHINESE, GERMAN, JAPANESE, POLISH, KOREAN AND DUTCH”. H. POSITION Allows adjustment of the horizontal position of the OSD menu. V.POSITION Allows adjustment of the vertical position of the OSD menu. -
Page 10: Extra
EXTRA INPUT SELECT Allows user to choose the signal source for the display between HDMI and VGA. MUTE Allows the audio output to be turned ON and VOLUME Allows adjustment of the volume of the monitor between 0 and 100. TROUBLESHOOTING Problem Solution... -
Page 11: Technical Specification
TECHNICAL SPECIFICATION eiQ-24FHD75IS Panel Type 23.8 '' Case Type Plastic Best Resolution 1920(H) x 1080(V) Active Display Area 527.04 (H) X 296.46 (V ) Pixel Pitch 0.2475 (H) x 0.2475 (V) Contrast Ratio 1000:1 Typical Brightness 250 cd/m² Response Time... -
Page 12: Support
Please remember that this equipment will be further handled during the recycling process, so please be considerate when depositing your equipment. Please contact the local council for details of your local household waste recycling centres. electriQ UK SUPPORT www.electriQ.co.uk/support Call: 0871 620 1057 Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk...
