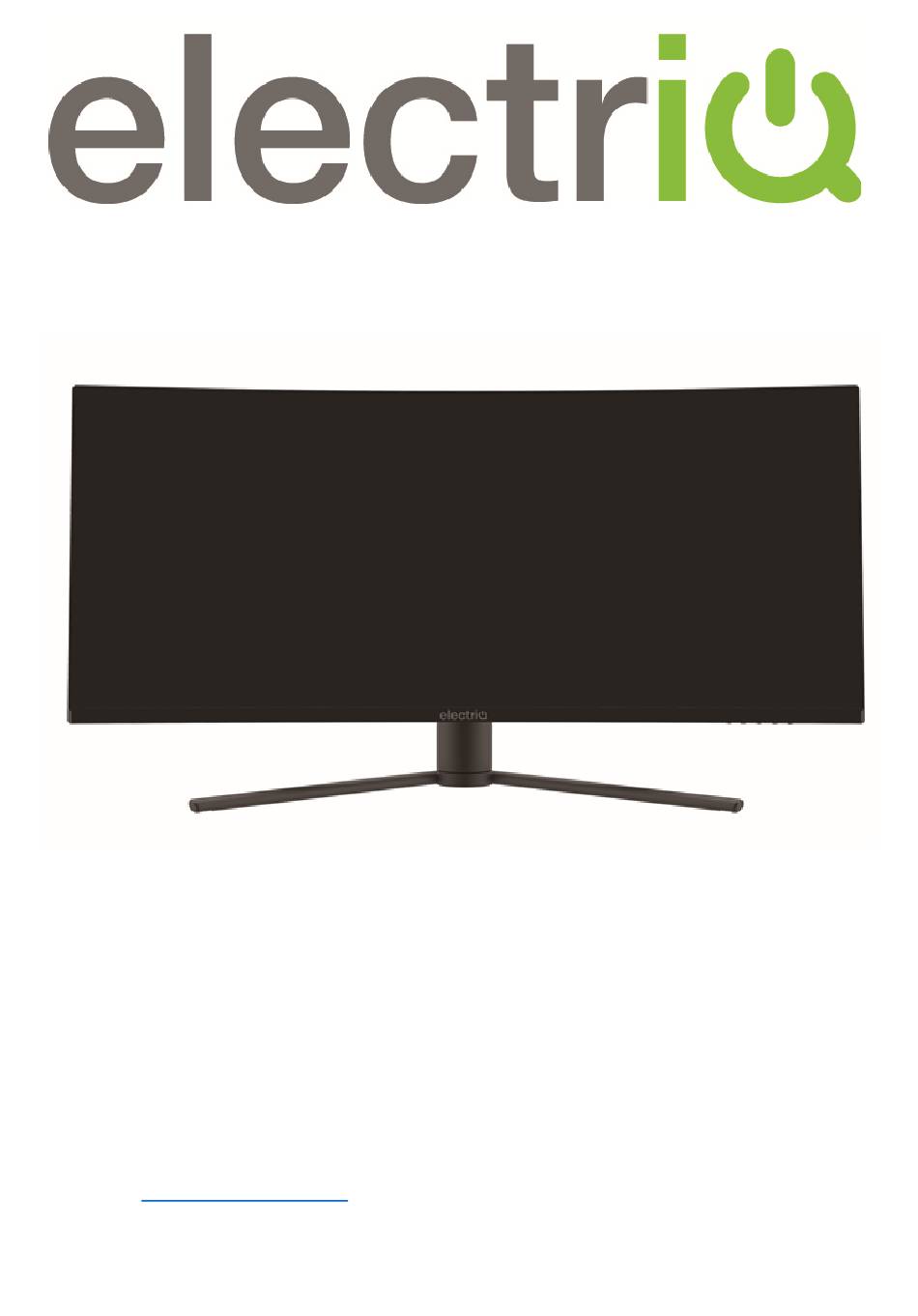

- Page 1 USER MANUAL 34 INCH CURVED QLED MONITOR eiQ-34SUWD144FSHQ Thank you for choosing electriQ Please read the user manual before using this monitor and keep it safe for future reference Visit www.electriQ.co.uk to view our entire range of Intelligent Electricals...
-
Page 2: Table Of Contents
CONTENTS SAFTEY WHATS INCLUDED STAND INSTALLATION MOUNTED INSTALLATION CABLE MANAGEMENT CONTROL PANEL INPUT/OUTPUT TERMINALS INITIAL SET UP MENU OPTIONS INPUT BRIGHTNESS COLOUR SETTINGS PICTURE QUALITY DISPLAY AUDIO MULTI WINDOW OTHER TECHNICAL SPECIFICATION TROUBLESHOOTING SUPPORT... -
Page 3: Saftey
SAFETY INFORMATION • Read these instructions - All the safety and operating instructions should be read before this product is operated. • Keep these instructions - The safety and operating instructions should be retained for future reference. • Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to. - Page 4 • Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as if the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus or it has been exposed to rain or moisture, it does not operate normally or has been dropped.
-
Page 5: Whats Included
• Do not block ventilation openings. The monitor can be placed in a cabinet but ensure at least 5cm (2") clearance all around. Do not tap or shake the screen, this may damage internal components. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. -
Page 6: Stand Installation
STAND INSTALLATION 1. Open the package and take out the product with the foam still attached. Gently place it on a desktop or table. 2. Remove the polyfoam and the inner package bag, place on a desktop or table, keep the lower foam underneath the monitor. See picture, fasten the stand stem and base with a screw. -
Page 7: Mounted Installation
MOUNT INSTALLATION 1. Open the package and take out the product with foam still attached Gently place it on a desktop or table. Remove the parts and the foam covering the monitor. If the monitor is already attached to the stand, remove the stand. 2. -
Page 8: Cable Management
Please follow the instructions provided by the wall bracket manufacturer and ensure that all fixing screws supplied are used. electriQ and its distributors and dealers are not liable or responsible for damage or ⚫... -
Page 9: Control Panel
CONTROL PANEL The controls are located centrally at the base of the monitor. Pressing any button when the OSD (On screen display) is not visible will display the Quick Menu Menu Down Exit Power Power indicator INPUT / OUTPUT TERMINALS Power Connector: Insert the power cable to supply power to the monitor Audio Output: Insert one and of the Audio cable into the computer’s Audio output to receive the Audio signals from your monitor. -
Page 10: Initial Setup
INITIAL SETUP Connect the monitor to a power outlet. 1. Press the POWER button on the monitor or to turn it on (The indicator will be blue) 2. Connect the relevant cable to the corresponding input on the monitor. The source will be automatically detected. -
Page 11: Menu Options
MENU OPTIONS The main menu for the monitor can be accessed by selecting it within the Quick menu (See previous page). This menu is separated into the following sub menus: Picture Settings, Image Settings, Colour Temperature, OSD, Reset, and Miscellaneous options, details of each menu can be found in the following sections. Within the Menu: UP (3) and Press to go up and down the current menu or to adjust the selected value. -
Page 12: Brightness
BRIGHTNESS/CONTRAST Brightness Adjust the brightness of the display between 0 and 100. Contrast Adjust the contrast of the display between 0 and 100. Turn the Dynamic Contrast Ratio Feature On or Off. -
Page 13: Colour Settings
COLOUR SETTINGS Change the Gamma value for the display between 1.8, 2.0, 2.2, 2.4, or Gamma 2.6. Change the picture mode between Standard, Photo, Movie, Game, FPS Picture Mode and RTS Change the Colour Temperature of the display to Warm, Cool or User. Colour When the User Mode is selected, the Red, Green, and Blue values can Temperature... -
Page 14: Picture Quality
PICTURE QUALITY SETTING Sharpness Change the display Sharpness between 0 and 100. Turn the Response Overdrive feature between Off, High, Middle of Response Time Adjust the level of Noise Reduction between Low, Medium, High, or Noise Reduction Off. Dynamic Luminance Control Turn the Dynamic Luminance Control Feature On or Off. -
Page 15: Display
DISPLAY Aspect Ratio Change the image aspect ratio to Wide screen, Auto, 4:3, or 1:1. LED Mode Turn on the LED back light. There are three settings, ON/OFF/FLASH AUDIO Mute Turn On and off to mute and unmute the audio output. Volume Adjust the output volume between 0 and 100. -
Page 16: Multi Window
MULTI-WINDOW Choose the different formats of multi window display between Off, Multi-Window Picture in Picture (PIP) and Picture by Picture (PBP 2Win) Choose the source of the second window between HDMI 1 and HDMI Sub Win2 Input Adjust the size of the secondary source in PIP and PBP modes PIP Size between Small, Medium and Large Set the position of the secondary source in PIP and PBP modes... -
Page 17: Osd
Change the OSD Menu display language between English, Chinese, Language Korean, Russian, Spanish, Japanese and French. OSD H Position Change the horizontal position of the OSD Menu. OSD V Position Change the vertical position of the OSD Menu. OSD Transparency Change the transparency value of the OSD Menu between 0 and 100. -
Page 18: Other
OTHER DP Version Set the DP version between 1.1 and 1.2 Free Sync (Adaptive Sync) Turn Free Sync On or Off. HDR can be set to On, Off or Autodetect. Reset Restore factory default setting. -
Page 19: Technical Specification
TECHNICAL SPECIFICATION Product Model eiQ-34SUWD144FSHQ 34” Diagonal Screen Size Panel Type VA Panel Aspect Ratio 21:9 Power Supply AC 100 240- V, 50/60Hz, 2.0A Power Consumption 54W (Typical) Dimensions 808*454 *225.5 mm Net/Gross Weight 7.02kg / 8.96 kg Maximum Resolution... -
Page 20: Troubleshooting
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. electriQ UK SUPPORT www.electriQ.co.uk/support If the unit fails to operate call: 0871 620 1057 or complete the online form Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk...
