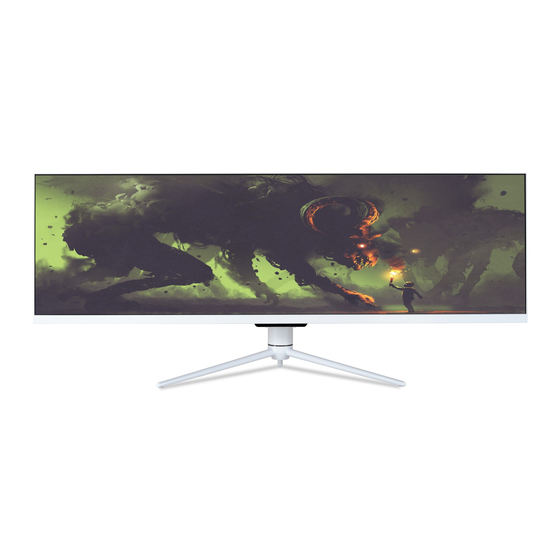

- Page 1 USER MANUAL 43.8 INCH LED MONITOR eiQ-43SUWD120FSHDR600 Thank you for choosing electriQ Please read the user manual before using this monitor and keep it safe for future reference Visit www.electriQ.co.uk to view our entire range of Intelligent Electricals...
-
Page 2: Table Of Contents
CONTENTS SAFETY PARTS LIST STAND INSTALLATION WALL MOUNT INSTALLATION CONNECTIONS AVAILABLE GETTING STARTED MONITOR CONTROLS INITIAL SET UP SHORTCUT BUTTONS MENU OPTIONS INPUT SOURCE BRIGHTNESS / CONTRAST COLOUR SETTINGS PICTURE QUALITY SETTINGS DISPLAY AUDIO MULTI WINDOW OTHER TECHNICAL SPECIFICATION TROUBLESHOOTING SUPPORT... -
Page 3: Safety
SAFETY INFORMATION • Read these instructions - All the safety and operating instructions should be read before this product is operated. • Keep these instructions - The safety and operating instructions should be retained for future reference. • Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to. - Page 4 • Disconnect the power immediately and seek professional help if the plug or cable is damaged, liquid has spilt onto the unit, if accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the unit does not work normally.
-
Page 5: Parts List
PARTS LIST Extension Bolts x 4 Bolts (A) x 3 Monitor (For Wall Mount (For Stand Assembly) Installation) Bolts (B) x 4 DP Cable USB Cable (For Attaching Stand) Power Cable User Manual Remote Control (AC 100-240V, 50/60Hz) Stand – Upright Section Stand - Base... -
Page 6: Stand Installation
2 people. • electriQ and its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases any guarantee will expire. -
Page 7: Wall Mount Installation
Please follow the instructions provided by the wall bracket manufacturer and ensure that all fixing screws supplied are used. • electriQ and its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases any... -
Page 8: Connections Available
CONNECTIONS AVAILABLE ON THE MONITOR Type-C HDMI 2 (HDMI 1.4, 75Hz, Free Sync) HDMI 1 (HDMI 2.0, 120Hz, Free Sync) DP (Display Port 1, 120Hz, Free Sync) AUDIO OUT GETTING STARTED MONITOR CONTROLS Select signal source or Exit the menu Go Up within the Main Menu or increase the value of the selected item Go Down within the Main Menu or decrease the value of the selected... -
Page 9: Initial Setup
INITIAL SETUP CONNECT THE MONITOR TO A POWER OUTLET 1. Press the POWER button on the monitor or to turn it on (The indicator will be blue) 2. Connect the relevant cable to the corresponding input on the monitor. The source will be automatically detected. SHORTCUT BUTTONS The monitor includes one touch options to access common settings. -
Page 10: Input Source
OSD MENU INPUT SOURCE Switch the signal input or select the source. DP, HDMI1, HDMI2, Signal Type-C BRIGHTNESS/CONTRAST Brightness Adjust the brightness of the display between 0 and 100. Contrast Adjust the contrast of the display between 0 and 100. Turn the Dynamic Contrast Ratio Feature On or Off. -
Page 11: Colour Settings
COLOUR SETTINGS Gamma Change the Gamma value for the display between 2.0, 2.2 and 2.4. Picture Change the picture mode between Standard, Photo, Movie, Game, Mode FPS and RTS. Change the Colour Temperature of the display to Normal, Warm, Colour Cool or User. -
Page 12: Picture Quality Settings
PICTURE QUALITY SETTINGS Sharpness Change the display Sharpness between 0 and 100. Response Time Turn the Response Over Drive feature between Off, High, Middle of low Noise Reduction Adjust the level of Noise Reduction between Low, Medium, High, or Off. Super Resolution Change the Super Resolution value from 0 to 5. -
Page 13: Display
DISPLAY Aspect Ratio Change the image aspect ratio to Wide Screen AUDIO Mute Turn On and off to mute and unmute the audio output. Volume Adjust the output volume between 0 and 100. Audio Source Chose which source the audio is output from. -
Page 14: Multi Window
MULTI-WINDOW Choose the different formats of multi window display between Off, Multi-Window Picture in Picture (PIP) and Picture By Picture (PBP 2Win) Choose the source of the second window between HDMI 1 and Sub Win2 Input HDMI 2. Adjust the size of the secondary source in PIP and PBP modes PIP Size between Small, Medium and Large Set the position of the secondary source in PIP and PBP modes... -
Page 15: Osd
Change the OSD Menu display language between English, Chinese, Korean, Russian, Language Spanish, Japanese and French. OSD H Change the horizontal position of the OSD Menu. Position OSD V Change the vertical position of the OSD Menu. Position Change the transparency value of the OSD Menu between 0 and 100. Transparency OSD Time Out Change how long the OSD Menu is on before it automatically exits. -
Page 16: Other
OTHER Free Sync Turn Free Sync On or Off. HDR: Turn HDR On (requires HDMI 2.0 Mode input). DP Version Change the DP version Reset Restore factory default setting. Turn the HDR on or off. -
Page 17: Technical Specification
TECHNICAL SPECIFICATION Product Model eiQ-43SUWD120FSHDR600 Screen Size 43.8” Diagonal Panel Type VA Panel Aspect Ratio 32:9 Power Supply AC 100-240V ~ 50/60Hz, 2.2A Power Consumption 60W Typ, 190W Max Dimensions 1089 * 547 * 287 mm Net / Gross Weight 11.5 kg / 14.4 kg... -
Page 18: Troubleshooting
Please contact the local council for details of your local household waste recycling centres electriQ UK SUPPORT www.electriQ.co.uk/support If the unit fails to operate call: 0871 620 1057 or complete the online form Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk...
