ElectrIQ eiq-495KCSUW144IPS User Manual

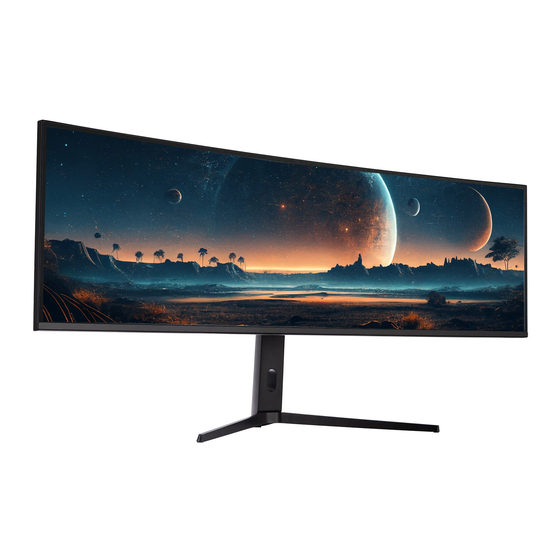

49-inch led monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
49-INCH LED MONITOR
eiq-495KCSUW144IPS
Thank you for choosing electriQ.
Please read the user manual before using this monitor and keep it safe for future reference.
Visit
www.electriQ.co.uk
to view our entire range of Intelligent Electricals.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eiq-495KCSUW144IPS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ElectrIQ eiq-495KCSUW144IPS

Summary of Contents for ElectrIQ eiq-495KCSUW144IPS

  • Page 1 USER MANUAL 49-INCH LED MONITOR eiq-495KCSUW144IPS Thank you for choosing electriQ. Please read the user manual before using this monitor and keep it safe for future reference. Visit www.electriQ.co.uk to view our entire range of Intelligent Electricals.

  • Page 3: Table Of Contents

    CONTENTS SAFETY INFORMATION WHAT’S INCLUDED PRODUCT DIAGRAM QUICK START GUIDE STAND ASSEMBLY STAND REMOVAL ADJUSTING THE STAND CONNECTIONS AVAILABLE ON THE MONITOR GETTING STARTED INITIAL SETUP OSD MENU Bri/Contrast Picture Settings Colour Settings OSD Settings Reset Other Settings SPECIFICATION TROUBLESHOOTING SUPPORT...

  • Page 4: Safety Information

    SAFETY INFORMATION • Read these instructions - All the safety and operating instructions should be read before this product is operated. • Keep these instructions - The safety and operating instructions should be retained for future reference. • Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to.
  • Page 5 • Disconnect the power immediately and seek professional help if the plug or cable is damaged, if liquid has spilt onto the unit if accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots, or if the unit does not work normally. •...

  • Page 6: What's Included

    ● Due to the heavyweight and dimensions of the of the monitor and it's fragile nature, we recommend that they be unpacked and assembled by 2 people. ● electriQ and its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions.

  • Page 7: Stand Assembly

    STAND ASSEMBLY Open the package and remove the Styrofoam. Place it flat on a table. Remove the upper foam, remove the film bag from the monitor, and place the display on the lower foam. Insert the base and screw securely into place.

  • Page 8: Adjusting The Stand

    ADJUSTING THE STAND The stand allows full adjustment of the screen position. The monitor's height can be adjusted by holding the sides of the casing and sliding the screen up and down on the stand. The screen can also be tilted and twisted. When adjusting the monitor, be careful not to put pressure on the screen, which may cause damage.

  • Page 9: Getting Started

    GETTING STARTED MONITOR CONTROLS Monitor Button Action Press the Button to access the menu POWER/ENTER Press the Left button to open the signal source options. ◄► Press the right button to open the volume settings. LEFT / RIGHT ▲ Aspect Ration zoom shortcut button ▼...

  • Page 10: Osd Menu

    OSD MENU Bri/Contrast 5120x1440@144Hz E-sport Monitor Bri/Contrast Brightness Picture Settings Contrast Color Settings Dynamic Brightness OSD Settings Shadow Balance Reset Contextual Model Standard Mode Other Settings Brightness Change the display Brightness value from 0 to 100. Contrast Change the display Contrast value from 0 to 100. Dynamic Change the display Dynamic Brightness value from 0 to 100.

  • Page 11: Picture Settings

    Picture Settings 5120x1440@144Hz E-sport Monitor Bri/Contrast MPRT Picture Settings Sharpness Color Settings Aspect Ratio Wide Screen OSD Settings Gamma Reset Response Time Other Settings FreeSync MPRT Turn MPRT On or Off. Sharpness Change the display Sharpness value from 0 to 5. Aspect Ratio Change the Aspect Ratio to: Wide Screen, 4:3, 1:1, Auto.

  • Page 12: Colour Settings

    Colour Settings 5120x1440@144Hz E-sport Monitor Bri/Contrast Color Temp Warm Picture Settings Color Settings Green OSD Settings Blue Reset Color Gamut Other Settings LowBlueLight Colour Temp Change the Colour Temp to: Cool, Natural, Warm, user. Change the Colour Gamut to: Off, sRGB Mode, DCI-P3 Mode, Colour Gamut Adobe Mode.

  • Page 13: Reset

    Language Change the OSD Menu display language. OSD Timer Out Change how long the OSD Menu is on before it automatically exits. Change the horizontal position of the OSD Menu. OSD H-Position OSD V-Position Change the vertical position of the OSD Menu. OSD Transparency Change the transparency value of the OSD Menu from 0 to 100 Flicker Free Turn Flicker Free On or Off.

  • Page 14: Other Settings

    Other Settings 5120x1440@144Hz E-sport Monitor Bri/Contrast Input Signal Auto Picture Settings Volume Color Settings Mute OSD Settings Enter Sleep Mode Reset USB-SWITCH Auto Other Settings Input Signal Change the input signal to auto, type-C, DP, HDMI1, and HDMI2. Volume Change the audio source Volume from 0 to 100. Mute Turn Mute On or Off.

  • Page 15: Specification

    SPECIFICATION eiq-495KCSUW144IPS 49” (32:9) LED Backlit Monitor Panel Type Panel Dimensions 1209.9mm Diagonal 1215.2x567.1x305mm (With Stand) Monitor Dimensions 1215.2x365.8x115.9mm (w/o Stand) Yes – VESA 100 x 100 Wall Mountable Case Type Matte Black 5120(H)x1440(V)@144Hz Max Resolution HDMI2.1 supports 5K @ 144Hz.

  • Page 16: Troubleshooting

    Please contact the local council for details of your local household waste recycling centres. electriQ UK SUPPORT www.electriQ.co.uk/support If the unit fails to operate, call 0330 390 3061 or complete the online form.
