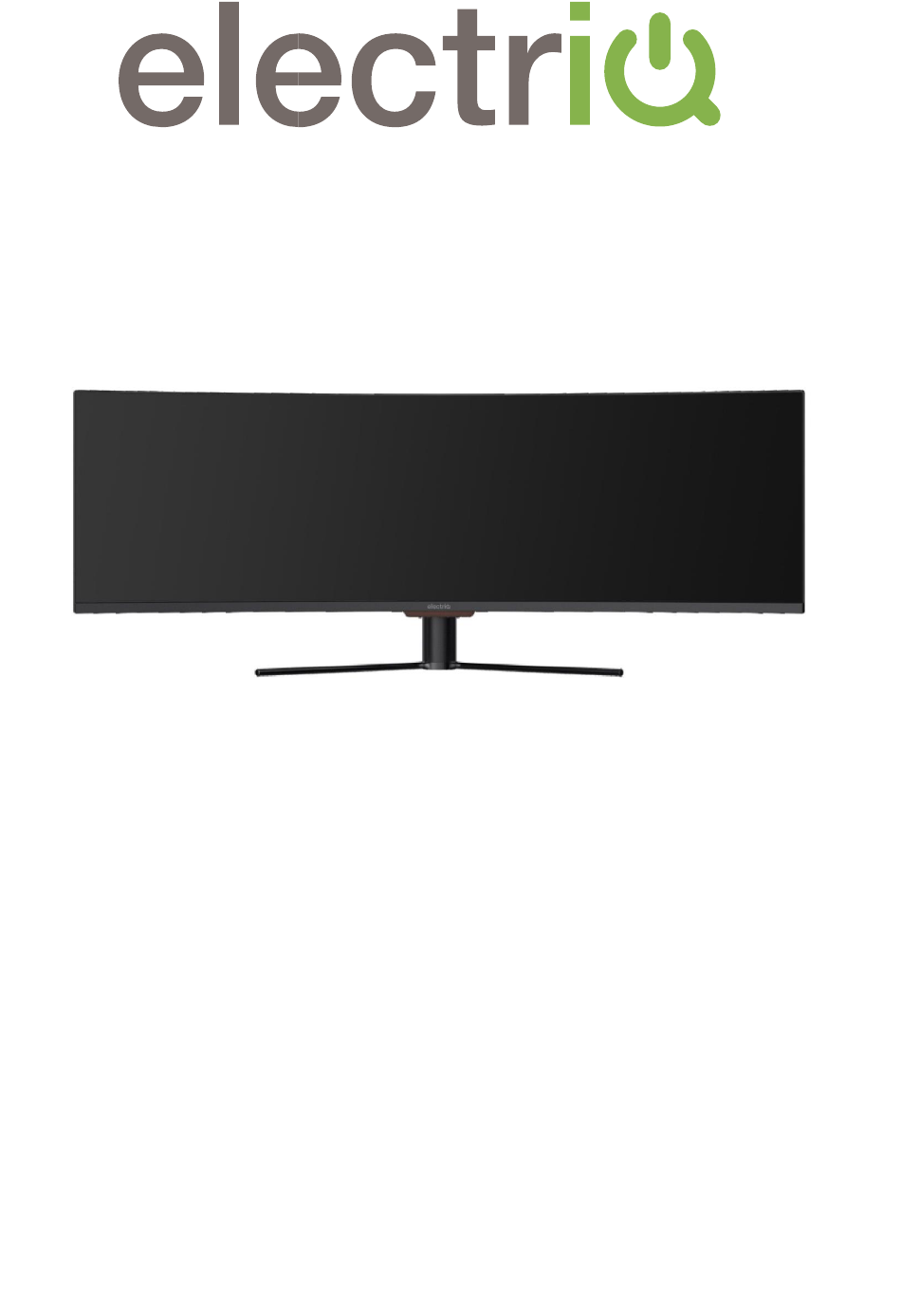

Page 1: User Manual

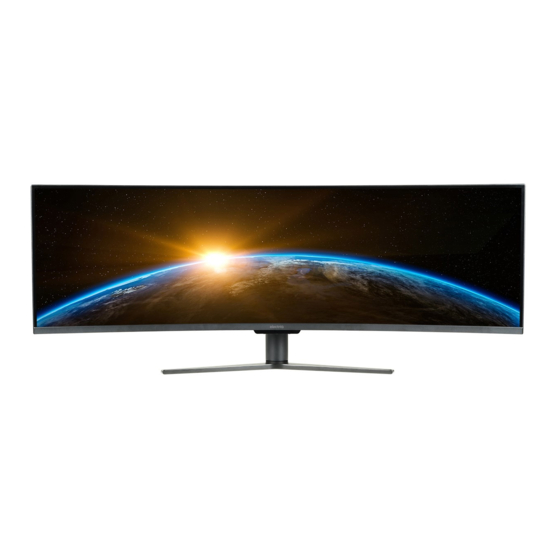

USER MANUAL 49 INCH eiQ-49SUWD144FSH CURVED LED MONITOR 49 INCH eiQ-49SUWD144FSHQ CURVED QLED MONITOR Please read this manual thoroughly before use and keep it handy for future reference... -
Page 2: Table Of Contents
CONTENTS SAFETY INFORMATION CONNECTION AND PREPARATION OF THE MONITOR WHAT IS INCLUDED ATTACHING THE STAND WALL MOUNTING CONTROL PANEL INPUT / OUTPUT TERMINALS INITIAL SETUP QUICK MENU MENU OPTIONS INPUT SOURCE BRIGHTNESS / CONTRAST COLOUR SETTINGS PICTURE QUALITY SETTINGS DISPLAY AUDIO MULTI WINDOW OTHER... -
Page 3: Safety Information
SAFETY INFORMATION Read these instructions – All the safety and operating instructions should be read before this product is installed or operated. Keep these instructions – The safety and operating instructions should be retained for future reference. Heed all warnings – All warnings on the appliance and in the operating ... - Page 4 WARNING Never place a monitor in an unstable location. A monitor may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: Use cabinets or stands recommended by the manufacturer of the monitor.
-
Page 5: Connection And Preparation Of The Monitor
ATTENTION Place the monitor on a firm and flat 10 cm 30 cm 10 cm surface, leaving a space of at least 10cm around the unit and 30cm from the top of the unit to the ceiling or cabinet. Ensure the monitor is positioned close to the wall to avoid it falling when pushed. -
Page 6: Attaching The Stand
2 people. electriQ and its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases any guarantee will expire. -
Page 7: Wall Mounting
electriQ and its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases any guarantee will expire. -
Page 8: Input / Output Terminals
INPUT / OUTPUT TERMINALS Audio Output Socket DISPLAY PORT (DP) Supports DP 1.2, 144Hz, Freesync HDMI 1: Supports HDMI 2.0,144Hz, Freesync HDMI 2: Supports HDMI 1.4,75Hz, Freesync HDMI 3: Supports HDMI 1.4,75Hz, Freesync AC Power Socket INITIAL SETUP Connect the monitor to a power outlet. 1. -
Page 9: Quick Menu
QUICK MENU Press any button when the on screen display is not visible to display the Quick Menu. Then Press the button below the item in the quick menu to select. Power Off Main Menu RGB Range Display Crosshairs Change LED Settings (On Stand) MENU OPTIONS The main menu for the monitor can be accessed by selecting it within the Quick menu (See... -
Page 10: Input Source
INPUT SOURCE 144Hz Change the input between DisplayPort (DP), HDMI 1, HDMI 2, or HDMI 3. BRIGHTNESS/CONTRAST Brightness Adjust the brightness of the display between 0 and 100. Contrast Adjust the contrast of the display between 0 and 100. Turn the Dynamic Contrast Ratio feature On or Off. -
Page 11: Colour Settings
COLOUR SETTINGS Change the Gamma value for the display between 1.8, 2.0, 2.2, 2.4, or Gamma 2.6. Change the picture mode between Standard, Photo, Movie, Game, FPS Picture Mode and RTS Change the Colour Temperature of the display to Warm, Cool or User. Colour When the User Mode is selected, the Red, Green, and Blue values can Temperature... -
Page 12: Picture Quality Settings
PICTURE QUALITY SETTING Sharpness Change the display Sharpness between 0 and 100. Turn the Response OverDrive feature between Off, High, Middle of Response Time Adjust the level of Noise Reduction between Low, Medium, High, or Noise Reduction Off. Super Resolution Change the Super Resolution between Off, High, Middle, or Low. -
Page 13: Display
DISPLAY Aspect Ratio Change the image aspect ratio to Wide screen, Auto, 4:3, or 1:1. AUDIO Mute Turn On and off to mute and unmute the audio output. Volume Adjust the output volume between 0 and 100. Audio Source Chose which source the audio is output from. -
Page 14: Multi Window
MULTI-WINDOW Choose the different formats of multi window display between Off, Multi-Window Picture in Picture (PIP) and Picture By Picture (PBP 2Win) Choose the source of the second window between HDMI 1, HDMI 2, Sub Win2 Input and HDMI 3. Adjust the size of the secondary source in PIP and PBP modes PIP Size between Small, Medium and Large... -
Page 15: Osd
Change the OSD Menu display language between English, Chinese, Language Korean, Russian, Spanish, Japanese and French. OSD H Position Change the horizontal position of the OSD Menu. OSD V Position Change the vertical position of the OSD Menu. OSD Transparency Change the transparency value of the OSD Menu between 0 and 100. -
Page 16: Other
OTHER DP Version Set the DP version between 1.1 and 1.2 FreeSync Turn FreeSync On or Off. (AdaptiveSync) HDR can be set to On, Off or Autodetect. Reset Restore factory default setting. -
Page 17: Technical Specification
TECHNICAL SPECIFICATION Product Model eiQ-49SUWD144FSH eiQ-49SUWD144FSHQ 49” Diagonal 49” Diagonal Screen Size Panel Type VA Panel QLED VA Panel Aspect Ratio 32:9 32:9 Power Supply AC 100-240V, 50/60Hz AC 100-240V, 50/60Hz Power Consumption 65W (Typical) 65W (Typical) Dimensions 1198.5 x 471 x 245.6 1198.5 x 471 x 245.6... -
Page 18: Simple Troubleshooting
Select the correct input source message. For more information, refer to Supported Signal Modes electriQ UK SUPPORT Complete online support form on www.electriQ.co.uk/support Service Line: 0871 620 1057 Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk Unit J6, Lowfields Business Park,...
