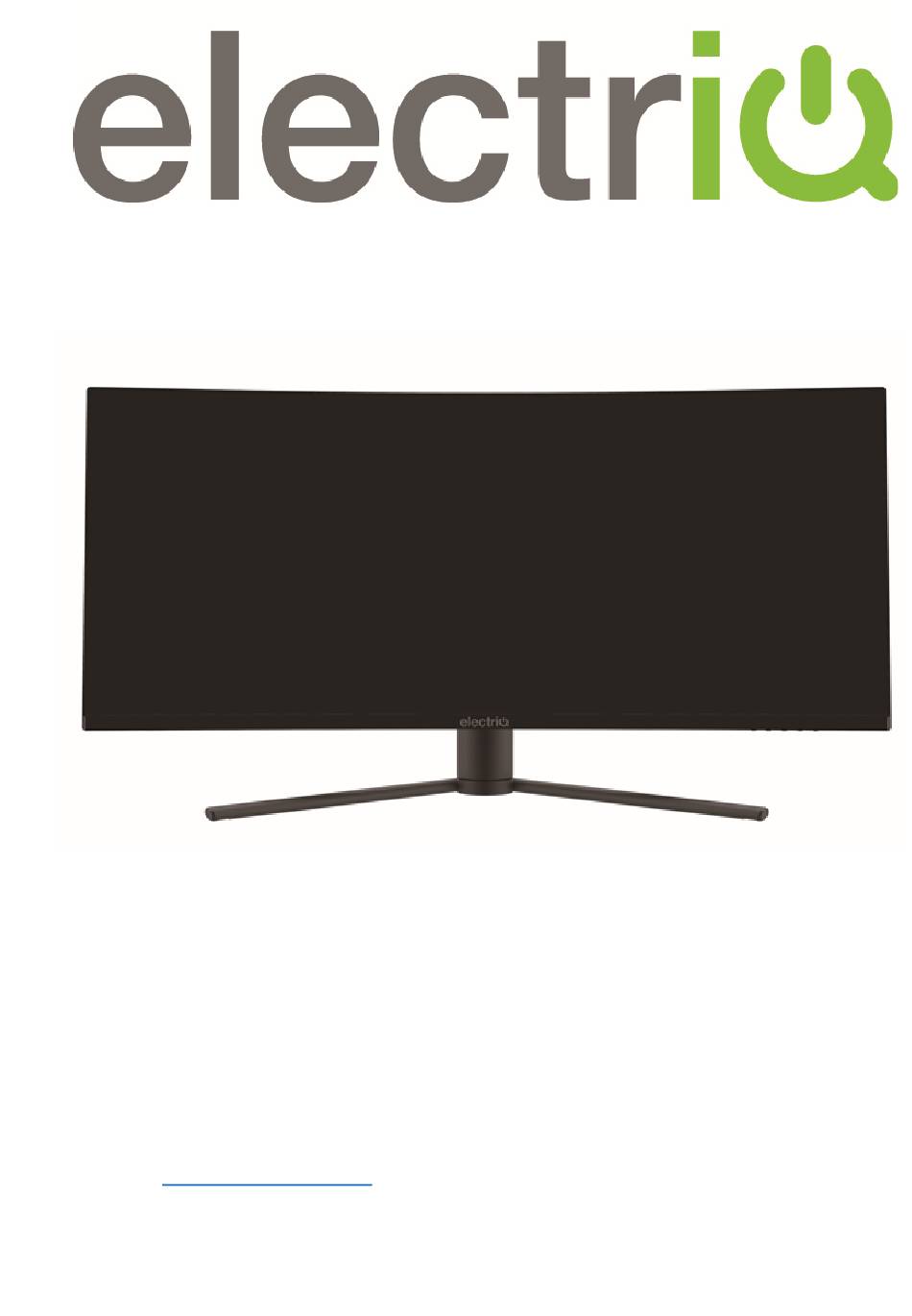

USER MANUAL
34 INCH CURVED QLED MONITOR
eiQ-34SUWD144FSHQ-V3
Thank you for choosing electriQ
Please read the user manual before using this monitor and keep it safe for
future reference
Visit
www.electriQ.co.uk
to view our entire range of Intelligent Electricals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eiQ-34SUWD144FSHQ-V3 and is the answer not in the manual?

Questions and answers

Summary of Contents for ElectrIQ eiQ-34SUWD144FSHQ-V3

  • Page 1 USER MANUAL 34 INCH CURVED QLED MONITOR eiQ-34SUWD144FSHQ-V3 Thank you for choosing electriQ Please read the user manual before using this monitor and keep it safe for future reference Visit www.electriQ.co.uk to view our entire range of Intelligent Electricals...
  • Page 3: Table Of Contents

    CONTENTS SAFTEY PARTS LIST STAND INSTALLATION MOUNT INSTALLATION CONTROL PANEL INPUT / OUTPUT TERMINALS INITIAL SETUP MENU OPTIONS OSD MENU GAME SETTINGS PICTURE SETTINGS COLOUR SETTINGS PICTURE QUALITY SETTINGS OSD SETTINGS OTHER TECHNICAL SPECIFICATION TROUBLESHOOTING SUPPORT...
  • Page 4: Saftey

    SAFETY INFORMATION • Read these instructions - All the safety and operating instructions should be read before this product is operated. • Keep these instructions - The safety and operating instructions should be retained for future reference. • Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to.
  • Page 5 • Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as if the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus or it has been exposed to rain or moisture, it does not operate normally or has been dropped.
  • Page 6: Parts List

    • Do not block ventilation openings. The monitor can be placed in a cabinet but ensure at least 5cm (2") clearance all around. Do not tap or shake the screen, this may damage internal components. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
  • Page 7: Stand Installation

    STAND INSTALLATION 1. Open the package and take out the product with the foam still attached. Gently place it on a desktop or table. 2. Remove the polyfoam and the inner package bag, place on a desktop or table, keep the lower foam underneath the monitor. See picture, fasten the stand stem and base with a screw.
  • Page 8: Mount Installation

    MOUNT INSTALLATION 1. Open the package and take out the product with foam still attached Gently place it on a desktop or table. Remove the parts and the foam covering the monitor. If the monitor is already attached to the stand, remove the stand. 2.
  • Page 9 Please follow the instructions provided by the wall bracket manufacturer and ensure that all fixing screws supplied are used. electriQ and its distributors and dealers are not liable or responsible for damage ⚫...
  • Page 10: Control Panel

    CONTROL PANEL The controls are located centrally at the base of the monitor. Pressing any button when the OSD (On screen display) is not visible will display the Quick Menu Menu Down Exit Power Power indicator INPUT / OUTPUT TERMINALS Power Connector: Insert the power cable to supply power to the monitor Audio Output: Insert one and of the Audio cable into the computer’s Audio output to receive the Audio signals from your monitor.
  • Page 11: Initial Setup

    INITIAL SETUP Connect the monitor to a power outlet. 1. Press the POWER button on the monitor or to turn it on (The indicator will be blue) 2. Connect the relevant cable to the corresponding input on the monitor. The source will be automatically detected.
  • Page 12: Osd Menu

    OSD MENU NOTE: Due to continuous product development, the OSD menu shown may differ slightly from the product. The screen display (OSD) menu can be used to adjust the settings of the monitor and is shown on the screen after the monitor is powered on and the M button is pressed. Press the M button to enter the OSD menu.
  • Page 13: Game Settings

    GAME SETTINGS Setting Options Description Settings optimised for standard use of the Standard Mode On / Off monitor. Settings are optimised for real time strategy and RTS/RPG Mode On / Off role playing games. Settings are optimised for first person shooter FPS Arena Mode On / Off games.
  • Page 14: Picture Settings

    PICTURE SETTINGS Setting Options Description Brightness 0 - 100 Adjust the brightness of the image on the screen. Contrast 0 - 100 Adjust the contrast of the image on the screen Turn DCR (Dynamic Contrast Ratio) on or off, which On / Off may help the clarity of the image.
  • Page 15: Colour Settings

    COLOUR SETTINGS Setting Options Description Warm On / Off 3 different pre set colour temperatures that can be Natural On / Off applied to the image. Cool On / Off User 1 On (R, G, B) / Off 3 separate user adjustable colour temperatures, User 2 On (R, G, B) / Off allowing you to select the Red, Green and Blue...
  • Page 16: Picture Quality Settings

    PIP (Picture in Picture) / PBP (Picture by Picture) Setting Options Description Turn PIP/PBP on and of, and select PIP/PBP Off/PIP Mode/PBP 2Win 1:1 which option is used for displaying Mode multiple video sources. Sub- Select which input source is used for the Signal DP1, DP 2, HDMI1, HDMI2 second input.
  • Page 17: Osd Settings

    OSD SETTINGS Setting Options Description Language 23 Languages to select from Select which language the OSD is displayed in OSD Time Select how long (in seconds) the OSD is displayed 5 – 60 when no buttons are pressed. OSD H- 0 –...
  • Page 18: Other

    OTHER SETTINGS Setting Options Description Auto, DP1, DP 2, HDMI1, Choose the input source which is displayed on the Input Signal monitor. HDMI2 0 – 100 Volume Adjust the volume output by the monitor Mute the audio output from the speakers / audio Mute On / Off out port.
  • Page 19: Technical Specification

    TECHNICAL SPECIFICATION Product Model eiQ-34SUWD144FSHQ-V3 34” Diagonal Screen Size Panel Type VA Panel Aspect Ratio 21:9 Power Supply AC 100- 240 V ~ 50/60Hz, 2.0A Power Consumption 58W (Typical) Dimensions 808.6*510.6*256.0 mm Net/Gross Weight 7.9kg / 10.4 kg Maximum Resolution...
  • Page 20: Troubleshooting

    Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. electriQ UK SUPPORT www.electriQ.co.uk/support If the unit fails to operate call: 0330 390 3061 or complete the online form Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk...
