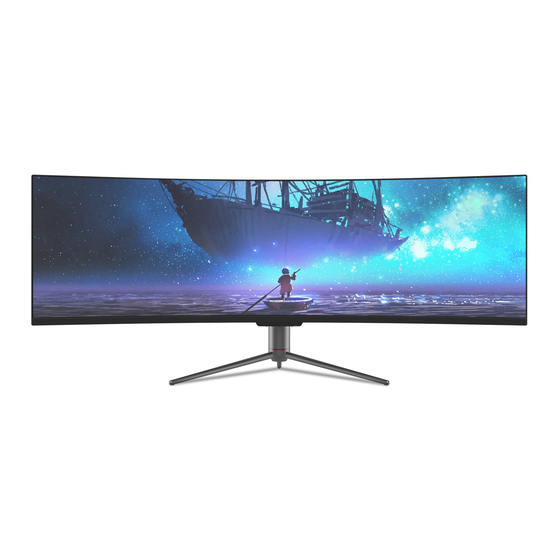

- Page 1 USER MANUAL 43.4 INCH CURVED LED MONITOR eiQ-43CVSUWD120FSH eiQ-43CVSUWD120FSHQ Thank you for choosing electriQ Please read the user manual before using this monitor and keep it safe for future reference Visit www.electriQ.co.uk to view our entire range of Intelligent Electricals...
-
Page 2: Table Of Contents
CONTENTS SAFETY PARTS LIST STAND INSTALLATION WALL MOUNT INSTALLATION CONTROL PANEL INPUT / OUTPUT TERMINALS INITIAL SET UP SHORTCUT BUTTONS OSD MENU INPUT SOURCE BRIGHTNESS / CONTRAST COLOUR SETTINGS PICTURE QUALITY SETTINGS DISPLAY AUDIO MULTI WINDOW OTHER TECHNICAL SPECIFICATION TROUBLESHOOTING SUPPORT... -
Page 3: Safety
SAFETY INFORMATION Read these instruc�ons - All the safety and opera�ng instruc�ons should be read • before this product is operated. Keep these instruc�ons - The safety and opera�ng instruc�ons should be retained • for future reference. Heed all warnings - All warnings on the appliance and in the opera�ng instruc�ons •... - Page 4 Disconnect the power immediately and seek professional help if the plug or cable • is damaged, liquid has spilt onto the unit, if accidentally exposed to water or moisture, if anything accidentally penetrates the ven�la�on slots or if the unit does not work normally.
-
Page 5: Parts List
USER MANUAL 43.4 INCH CURVED LED MONITOR eiQ-43CVSUWD120FSH eiQ-43CVSUWD120FSHQ Thank you for choosing electriQ Please read the user manual before using this monitor and keep it safe for future reference Visit www.electriQ.co.uk to view our entire range of Intelligent Electricals... -
Page 6: Stand Installation
STAND INSTALLATION 1. Open the package, take out the product out with the protec�ve foam s�ll a�ached and gently lay it flat on a desk table. upper foam bo�om foam 2. Remove the upper foam. 3. Use the 3 X PM5*15 bolts to fasten stem and base. Place the assembled stand onto the back of the monitor. -
Page 7: Wall Mount Installation
Use both hands to stand the assembled monitor on a flat desktop. Due to the heavy weight and dimensions of the LCD screens and their fragile nature, we recommend that they are unpacked and assembled by 2 people. The stand can be removed from the rear of the monitor by pressing the quick release bu�on ... - Page 8 Please follow the instruc�ons provided by the wall bracket manufacturer and ensure that all fixing screws supplied are used. electriQ and its distributors and dealers are not liable or responsible for damage or ...
-
Page 9: Control Panel
CONTROL PANEL The controls are located centrally at the base of the monitor. Pressing any button when the OSD (On screen display) is not visible will display the Quick Menu Menu Down Exit Power INPUT / OUTPUT TERMINALS Audio Output: Insert one and of the Audio cable into the computer’s Audio output to receive the Audio signals from your monitor. -
Page 10: Initial Setup
INITIAL SETUP Connect the monitor to a power outlet. 1. Press the POWER button on the monitor or to turn it on (The indicator will be blue) 2. Connect the relevant cable to the corresponding input on the monitor. The source will be automatically detected. -
Page 11: Shortcut Buttons
SHORTCUT BUTTONS The On-Screen Display (OSD) Menu may be used to adjust your monitor's settings and appears on screen after turning on the monitor and pressing the M button. 1. Press any one of the buttons ( ) to activate the navigation window (Figure 1). -
Page 12: Osd Menu
OSD MENU INPUT SOURCE Switch the signal input or select the source. DP, HDMI1, HDMI2 Signal BRIGHTNESS/CONTRAST HDMI1 Resolution: 3840x1200@60Hz Contrast InputSource: DP InputSource： Resolution: 3840x1200@60Hz Resolution： Brightness Adjust the brightness of the display between 0 and 100. Contrast Adjust the contrast of the display between 0 and 100. Turn the Dynamic Contrast Ra�o Feature On or Off. -
Page 13: Colour Settings
COLOUR SETTINGS HDMI1 Resolution: 3440x1200@60Hz InputSource: DP InputSource： Resolution: 3840x1200@60Hz Resolution： Gamma Change the Gamma value for the display between 2.0, 2.2 and 2.4. Picture Change the picture mode between Standard, Photo, Movie, Game, Mode FPS and RTS. Change the Colour Temperature of the display to Normal, Warm, Colour Cool or User. -
Page 14: Picture Quality Settings
PICTURE QUALITY SETTINGS HDMI1 Resolution: 3440x1200@60Hz Super Resolution Dynamic Luminous Control InputSource: DP InputSource： Resolution: 3840x1200@60Hz Resolution： Sharpness Change the display Sharpness between 0 and 100. Response Time Turn the Response Over Drive feature between Off, High, Middle of low Noise Reduc�on Adjust the level of Noise Reduc�on between Low, Medium, High, or Off. -
Page 15: Display
DISPLAY HDMI1 Resolution: 3440x1200@60Hz InputSource: DP InputSource： Resolution: 3840x1200@60Hz Resolution： Aspect Ra�o Change the image aspect ra�o to Wide Screen AUDIO HDMI1 Resolution: 3840x1200@60Hz AutoSource InputSource: DP InputSource： Resolution: 3840x1200@60Hz Resolution： Mute Turn On and off to mute and unmute the audio output. Volume Adjust the output volume between 0 and 100. -
Page 16: Multi Window
MULTI-WINDOW HDMI1 Resolution: 3840x1200@60Hz HDMI1(2.0) InputSource: DP InputSource： Resolution: 3840x1200@60Hz Resolution： Choose the different formats of mul� window display between Off, Mul�-Window Picture in Picture (PIP) and Picture By Picture (PBP 2Win) Choose the source of the second window between HDMI 1 and Sub Win2 Input HDMI 2. -
Page 17: Osd
HDMI1 Resolution: 3840x1200@60Hz OSD Contrast Normal InputSource: DP InputSource： Resolution: 3840x1200@60Hz Resolution： Change the OSD Menu display language between English, Chinese, Korean, Russian, Language Spanish, Japanese and French. OSD H Change the horizontal posi�on of the OSD Menu. Posi�on OSD V Change the ver�cal posi�on of the OSD Menu. -
Page 18: Other
OTHER HDMI1 Resolution: 3840x1200@60Hz InputSource: DP InputSource： Resolution: 3840x1200@60Hz Resolution： Free Sync Turn Free Sync On or Off. HDR: Turn HDR On (requires HDMI 2.0 Mode input). DP Version Change the DP version Reset Restore factory default se�ng. Turn the HDR on or off. -
Page 19: Technical Specification
TECHNICAL SPECIFICATION Product Model eiQ-43CVSUWD120FSH eiQ-43CVSUWD120FSHQ Screen Size 43.4” Diagonal 43.4” Diagonal QLED VA Panel Panel Type VA Panel Aspect Ra�o 32:10 32:10 Power Supply AC 100-240V~,50/60Hz AC 100-240V~,50/60Hz Power Consump�on Typical: 68W,Max: 90W Typical: 68W,Max: 90W 1060.62*562.10*286.77mm 1060.62*562.10*286.77mm Dimensions(Product Size) Net/Gross Weight 10.2kg / 13.6kg... -
Page 20: Troubleshooting
Please contact the local council for details of your local household waste recycling centres electriQ UK SUPPORT www.electriQ.co.uk/support If the unit fails to operate call: 0871 620 1057 or complete the online form Office hours: 9AM - 5PM Monday to Friday... - Page 21 902-F3CQC-20002 F3CQC-H eiQ-43CVSUWD120FSH F3CQC-HQ共用 eiQ-43CVSUWD120FSHQ El ectriQ 2020.08.01 140*19 7mm 封面封底 120G 铜版纸， 内页 铜版 纸 彩色骑马订 蒋武波 备注：不够页数在封面封底的内页加空白页...
