ElectrIQ eiQ-25FHD280TFSGH User Manual

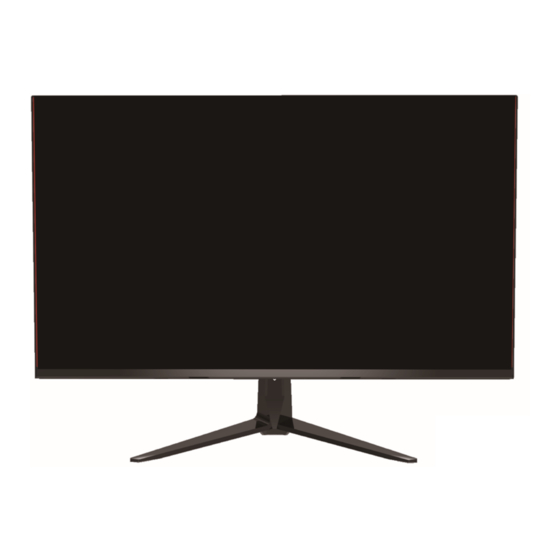

25” fhd led monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

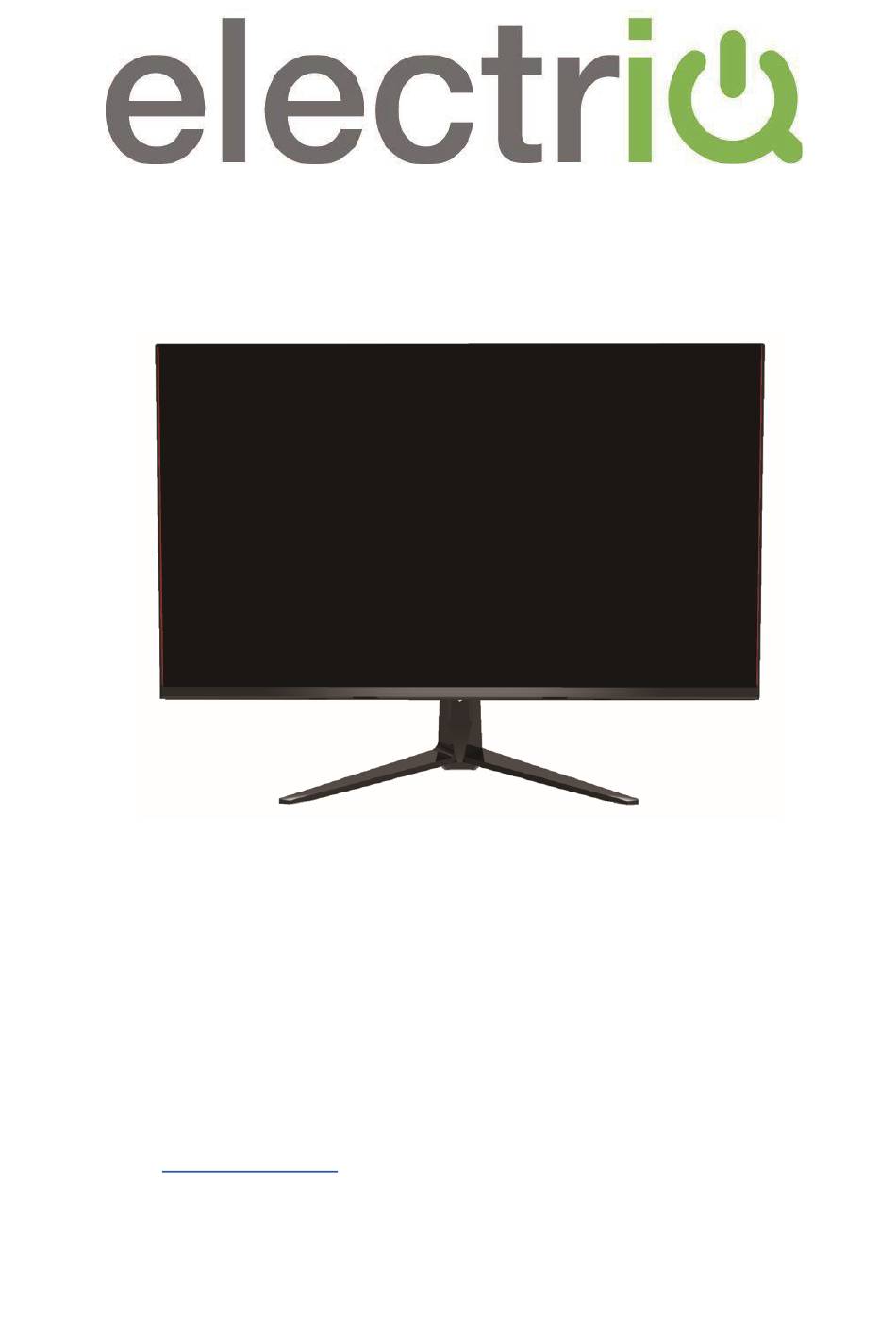

USER MANUAL
25" FHD LED MONITOR
eiQ-25FHD280TFSGH
Thank you for choosing electriQ
Please read the user manual before using this monitor and keep it safe for future reference
Visit
www.electriQ.co.uk
to view our entire range of Intelligent Electricals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eiQ-25FHD280TFSGH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ElectrIQ eiQ-25FHD280TFSGH

Summary of Contents for ElectrIQ eiQ-25FHD280TFSGH

  • Page 1 USER MANUAL 25” FHD LED MONITOR eiQ-25FHD280TFSGH Thank you for choosing electriQ Please read the user manual before using this monitor and keep it safe for future reference Visit www.electriQ.co.uk to view our entire range of Intelligent Electricals...

  • Page 2: Table Of Contents

    CONTENTS SAFETY WHATS INCLUDED CONNECTIONS WALL MOUNTING GETTING STARTED SHORT CUT INITIAL SET UP MENU OPTIONS OSD MENU INPUT COLOUR MANUAL IMAGE ADJUSTMENT AUDIO SET UP OTHER TECHNICAL SPECIFICATION TROUBLESHOOTING SUPPORT...

  • Page 3: Safety

    SAFETY INFORMATION • Read these instructions - All the safety and operating instructions should be read before this product is operated. • Keep these instructions - The safety and operating instructions should be retained for future reference. • Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to.
  • Page 4 inside. Trying to service the unit yourself is dangerous and may invalidate the product's warranty. Only qualified personnel should service this apparatus. • Do not block ventilation slots on the back cover. The monitor can be placed in a cabinet but ensure at least 5cm (2") clearance all around. Do not tap or shake the screen, this may damage internal components.

  • Page 5: Whats Included

    WHAT’S INCLUDED USER MANUAL POWER SUPPLY POWER CABLE DP CABLE...

  • Page 6: Connections

    CONNECTIONS AVAILABLE ON THE MONITOR POWER DP1 (Display Port 1.2, 280Hz, Free Sync) HDMI 1 (HDMI 2.0, 240Hz, Free Sync) HDMI 2 (HDMI 2.0. 240hz, Free Sync) DP2 (Display Port 1.2, 280Hz, Free Sync) AUDIO OUT WALL MOUNTING • The monitor is provided with mounting holes for a VESA approved wall mounting bracket (not supplied). •...

  • Page 7: Short Cut

    SHORTCUT BUTTONS The monitor includes these options accessed by using the rocker switch. Press the joystick switch to access the shortcut buttons and OSD menu. Use the ◄and► buttons to navigate. Press the joystick switch again to enter the Middle OSD menu.

  • Page 8: Input

    OSD MENU INPUT SOURCE Signal Select the source between DP1, DP2, HDMI1 and HDMI 2 COLOUR SETTINGS Contrast / Adjust the contrast /brightness of the display between 0 Brightness and 100. Colour Change the Colour Temperature of the display to standard, Temperature Warm, Cool or User Colour.

  • Page 9: Manual Image Adjustment

    MANUAL IMAGE ADJUST Sharpness Change the clarity from 0 to 100. Blue light filter Change the display blue light from 0 to 100. Change the image aspect ratio to Wide Screen, Aspect Ratio 4:3,5:4,16:9,16:10, Auto. Change the Dynamic Contrast Ratio Feature between 0 and Advanced DCR 100.

  • Page 10: Set Up

    SETUP MENU Change the OSD Menu display language between English, Chinese, Korean, Language Russian, Spanish, Japanese, French and Etc. Resolution Notice Turn the Resolution Notice feature On or Off. Information Resolution:1920x1080 Horizontal frequency: 271.2KHz Vertical frequency:240.1Hz Clock frequency: 564.0MHz. OSD Size Menu shows Native, Large.

  • Page 11: Other

    VIEW MODE Standard Enter standard mode. Game The game mode is divided into FPS1, PFS2, RTS, Night, Vision, Gamer1, Gamer2, Gamer3. Movie Enter movie mode. Enter Web mode. Text Enter text mode.

  • Page 12: Technical Specification

    SPECIFICATION eiQ-25FHD280TFSGH 25” (16:9) LED Backlit Monitor Panel Type Case Type Plastic Best Resolution 1920(H)x1080(V)@280Hz Active Display Area 543.744(H)×302.616(V) mm Pixel Pitch 0.2832(H)x0.2802(V) Contrast Ratio 1000:1 Typical Brightness 400 cd/m² Response Time 5ms (GTG) Viewing Angle 170°/160° CR≥10 Display Colours 16.7M...

  • Page 13: Troubleshooting

    Please contact the local council for details of your local household waste recycling centres electriQ UK SUPPORT www.electriQ.co.uk/support Call: 0330 390 3061 Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk...
