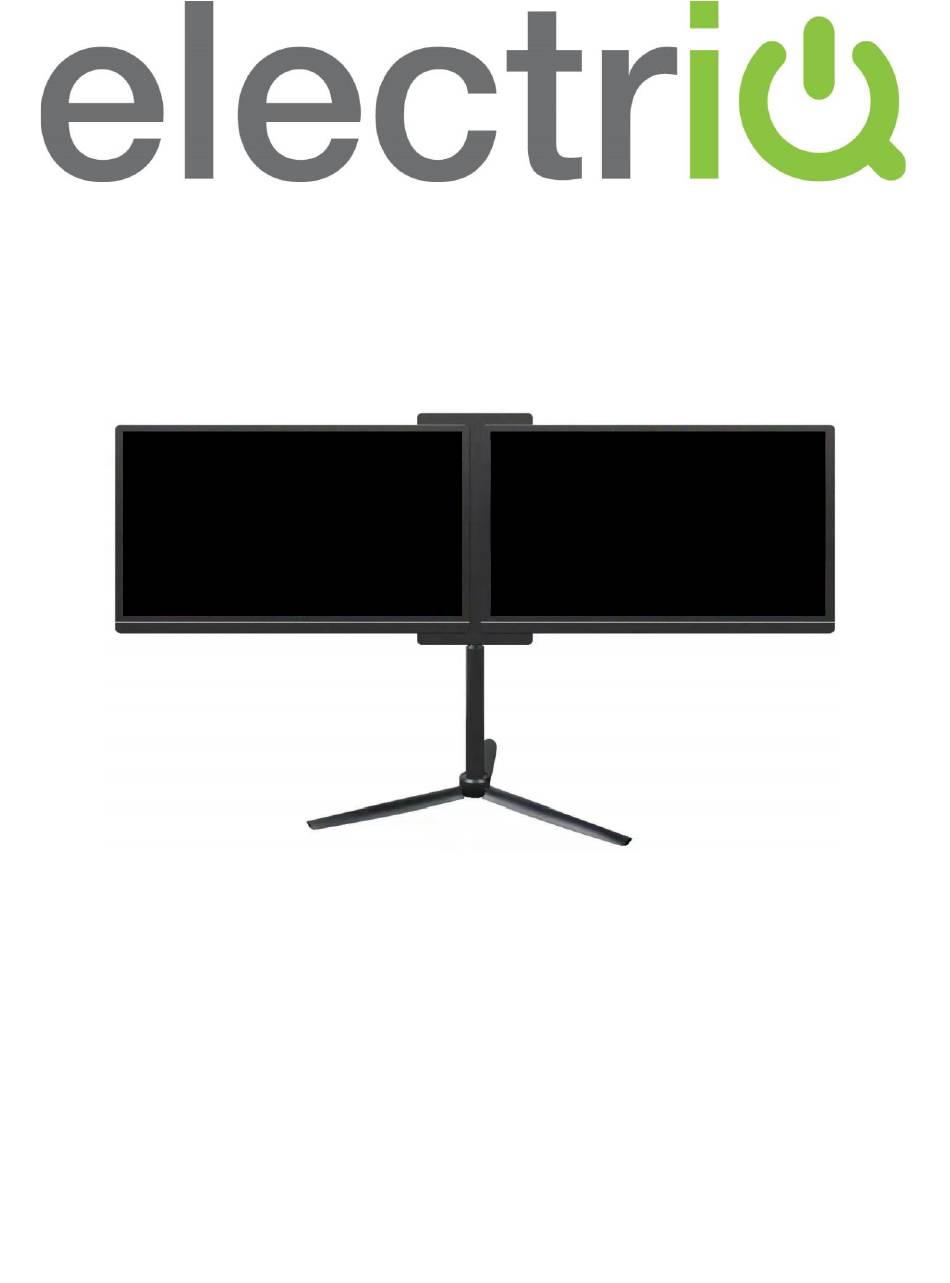

- Page 1 USER MANUAL 15.6 INCH HD DUAL MONITOR eiQ-DUAL15FHDPM Thank you for choosing electriQ Please read this user manual before using this monitor and keep it safe for future reference...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRODUCT OVERVIEW SCREEN SET UP OPERATION MAIN MENU CONNECTING A DEVICE WINDOWS PC CONNECTION APPLE PC CONNECTION TROUBLESHOOTING TECHNICAL INFORMATION CLEANING AND MAINTENANCE SUPPORT... -
Page 3: Safety
SAFETY INSTRUCTIONS • Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The manual should be retained for future reference. • Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered •... - Page 4 • Do not place heavy items on the cable as this may cause damage. • When removing from a socket hold by the plug and not the wires. • Disconnect the power immediately and seek professional help if the plug or cable is damaged, liquid has spilt onto the unit, if accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the unit does not work normally.
-
Page 5: Product Overview
PRODUCT OVERVIEW 15.6 Inch 15.6 Inch Increase Left Display Menu Decrease Increase Right Display Menu Decrease Power Button USB Type C Input (Video) DC12 V Power Input... -
Page 6: Screen Set Up
SCREEN SET UP Ensure when setting up your screens you place the monitor on a soft surface to prevent damage to the screens. First take the extension tube and the stand and screw together. Using the screw at the top of the extension tube, carefully screw into the base of the screen. -
Page 7: Operation
OPERATION Press and hold the power button for 3 seconds to turn the monitor ON and OFF. The screen will enter power saving mode when turned on unless there is a suitable device connected. The INCREASE AND DECREASE BUTTONS are used to increase or decrease the brightness (note the increase button should be pressed first to enter the brightness settings). - Page 8 COLOR TEMP COLOUR TEMP – Change between USER, WARM and COOL. In USER the individual RED, GREEN and BLUE values can be adjusted. OSD SETTING LANGUAGE – Change the language of the Menus. OSD TIMER – Adjust the amount of time the menu is shown before the display returns to normal operation.
-
Page 9: Connecting A Device
CONNECTING A DEVICE COMPUTER – VIA USB TYPE C The portable display can be connected to a compatible computer using the supplied USB C cable. This can be used for extended display or duplicated display use. MOBILE PHONE – VIA USB TYPE C When connected to the external power supply, the display will operate in duplicate mode, and so the contents of the phones display will be shown on both the screens. -
Page 10: Windows Pc Connection
WINDOWS PC CONNECTION Follow the steps to connect your dual monitor to your windows PC. You will need a PC with a fully functional USB-C type interface that supports Display port over USB-C. First, plug in your dual monitor to a power source using the DC12V adaptor. Press the power button to turn the monitor on. -
Page 11: Apple Pc Connection
APPLE PC CONNECTION After powering on your dual monitor and connecting the USB-C to USB-C lead to your computers thunderbolt port, enter the settings menu. In the settings menu, press the display icon. In the display menu, click on the “Arrangement” tab. From here you can access all settings for multiple screens and customize your screens to your preferred preference. -
Page 12: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION • Make sure the video cable between the monitor No video/ picture (led not lit) and computer is connected properly and securely. • Use other electrical equipment to confirm that the power outlet is working properly. • Make sure the power button is pressed correctly. •... -
Page 13: Technical Information
TECHNICAL INFORMATION Type C Dual Screen Product name: Product model: eiQ-DUAL15FHDPM Display Viewable area: 344.16*193.59mm Screen size inch 15.6inch*2 LCD: Product size mm 368mm*225mm*11.5mm Aspect ratio: 16:9 Resolution 1920*1080 Colour: 16.7M Temperature K 6500K Viewing angle: H：85°/85°Min V：85°/85°Min Contrast: 800：1 Brightness (cd/m 220cd/m²... -
Page 14: Cleaning And Maintenance
SUPPORTED MODELS (Computer) Laptop Model brands Macbook2015，Macbook2016，Macbook2017，Macbook Apple Pro2016/2017/2018/2019 series，MacMini，MacAir，iMac， iPadPro2018/2019/2020，Macbook2019 16 inch Yoga C940，ThinkPad New S2/Air 2，Thinkpad X270,X280，ThinkPad X1 Lenovo Carbon，ThinkPad X1 Extreme，Zhaoyang E4 Dell Dell XPS 12/13/15， Latitude 7280，Alienware 13 R2，Inspiron 7370 XiaoMi Air 12.5 inch/13.3inch, Air Pro 15.6 inch MateBook，MateBook X，Magicbook Huawei Google... - Page 15 UK SUPPORT www.electriQ.co.uk/support Call: 0330 390 3061 Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk Unit J6, Lowfields Business Park Lowfields Way, Elland West Yorkshire, HX5 9DA Recycling facilities are now available for all customers at which you can deposit your old electrical products.
