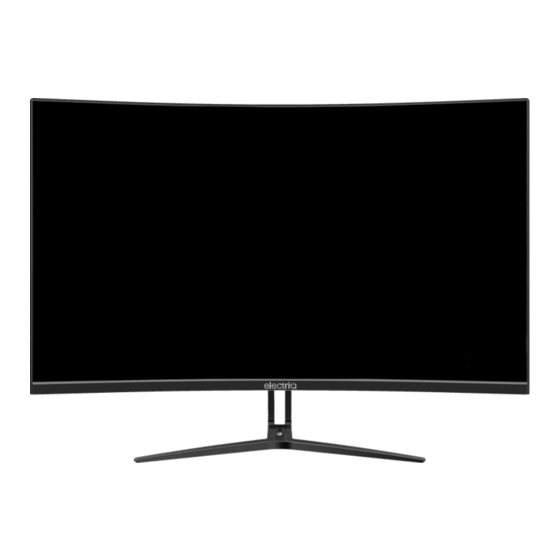

ElectrIQ eiQ-32CVQ165VAFSGH User Manual

32” fhd led monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
32" FHD LED MONITOR
eiQ-32CVQ165VAFSGH
Thank you for choosing electriQ
Please read the user manual before using this monitor and keep it safe for future reference Visit
www.electriQ.co.uk
to view our entire range of Intelligent Electricals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eiQ-32CVQ165VAFSGH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ElectrIQ eiQ-32CVQ165VAFSGH

Summary of Contents for ElectrIQ eiQ-32CVQ165VAFSGH

  • Page 1 USER MANUAL 32” FHD LED MONITOR eiQ-32CVQ165VAFSGH Thank you for choosing electriQ Please read the user manual before using this monitor and keep it safe for future reference Visit www.electriQ.co.uk to view our entire range of Intelligent Electricals...

  • Page 2: Table Of Contents

    CONTENTS SAFETY WHATS INCLUDED CONNECTIONS WALL MOUNTING GETTING STARTED SHORT CUT INITIAL SET UP MENU OPTIONS OSD MENU INPUT COLOUR MANUAL IMAGE AUIDO SET UP OTHER TECHNICAL SPECIFICATION TROUBLESHOOTING SUPPORT...

  • Page 3: Safety

    SAFETY INFORMATION • Read these instructions - All the safety and operating instructions should be read before this product is operated. • Keep these instructions - The safety and operating instructions should be retained for future reference. • Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to.
  • Page 4 inside. Trying to service the unit yourself is dangerous and may invalidate the product's warranty. Only qualified personnel should service this apparatus. • Do not block ventilation slots on the back cover. The monitor can be placed in a cabinet but ensure at least 5cm (2") clearance all around. Do not tap or shake the screen, this may damage internal components.

  • Page 5: Whats Included

    WHAT’S INCLUDED USER MANUAL POWER SUPPLY POWER CABLE HDMI...

  • Page 6: Connections

    CONNECTIONS AVAILABLE ON THE MONITOR POWER DP1 (Display Port 1. 144Hz, Free Sync) HDMI 1 (HDMI 1.4, 144Hz, Free Sync) HDMI 2 (HDMI 2.0, 75Hz, Free Sync) DP2 (Display Port 2. 144Hz, Free Sync) AUDIO OUT WALL MOUNTING • The monitor is provided with mounting holes for a VESA approved wall mounting bracket (not supplied). •...

  • Page 7: Short Cut

    SHORTCUT BUTTONS The monitor includes one touch options to access common settings. Display the signal source menu. Use the ◄and► buttons to navigate and the M button to select the source. Activate the Line of Sight feature. Press again to cycle between the colours or turn off.

  • Page 8: Osd Menu

    OSD MENU INPUT SOURCE Signal Switch the signal input or select the source. DP1, 2, HDMI1, HDMI2 COLOR SETTINGS Brightness Adjust the brightness of the display between 0 and 100. Contrast Adjust the contrast of the display between 0 and 100. The HDR is divided into, Auto (HDMI), HDR Effect Colour Change the Colour Temperature of the display to Normal,...

  • Page 9: Manual Image

    MANUAL IMAGE ADJUST Aspect Ratio Change the image aspect ratio to Wide Screen, 4:3,5:4,16:9,16:10, Auto. Sharpness Change the clarity from 0 to 100. Blue light filter Change the display blue light from 0 to 100. Advanced DCR Turn the Dynamic Contrast Ratio Feature On or Off. Turn the Response Time feature On or Off.

  • Page 10: Set Up

    SETUP MENU Change the OSD Menu display language between English, Chinese, Korean, Language Russian, Spanish, Japanese and French. Resolution Notice Turn the Resolution Notice feature On or Off. Information Resolution:1920x1080 Horizontal frequency: 137.36KHz Vertical frequency:120.0Hz Clock frequency:285.5MHz. OSD Size Menu shows budget, large. OSD Timeout Change the OSD Timeout from 0 to 100.

  • Page 11: Other

    OTHER Standard Enter standard mode. Game The game mode is divided into FPS1, PFS2, RTS, Night, Vision, Gamer1, Gamer2, Gamer3. Movie Enter movie mode. Enter Web mode. Text Enter text mode.

  • Page 12: Technical Specification

    SPECIFICATION eiQ-32CVQ165VAFSGH 32” (16:9) LED Backlit Monitor Panel Type Panel Dimensions 800.1mm Diagonal Plastic Case Type 2560(H)x1440(V)@165Hz Best Resolution Active Display Area 697.344(H)x392.256(V) Pixel Pitch 0.272.4(H)x0.272.4(V) Contrast Ratio 3000:1 Typical Brightness 300 cd/m² 5ms (GTG) Response Time 178°/178° CR≥10 Viewing Angle Display Colours 16.7M...

  • Page 13: Troubleshooting

    Please contact the local council for details of your local household waste recycling centres electriQ UK SUPPORT www.electriQ.co.uk/support Call: 0871 620 1057 Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk...
