CHANGING BLADE-EDGE
ILLUMINATION MODE
On snowplows equipped with
INTENSIFIRE™ LED headlamps, the
EdgeView™ technology feature offers three
modes for blade‑edge illumination. The factory
default setting is ON.
To change the blade‑edge illumination mode,
remove the cover from the fuse holder located
near the "Y" port of the headlamp control module
installed in the vehicle engine compartment.

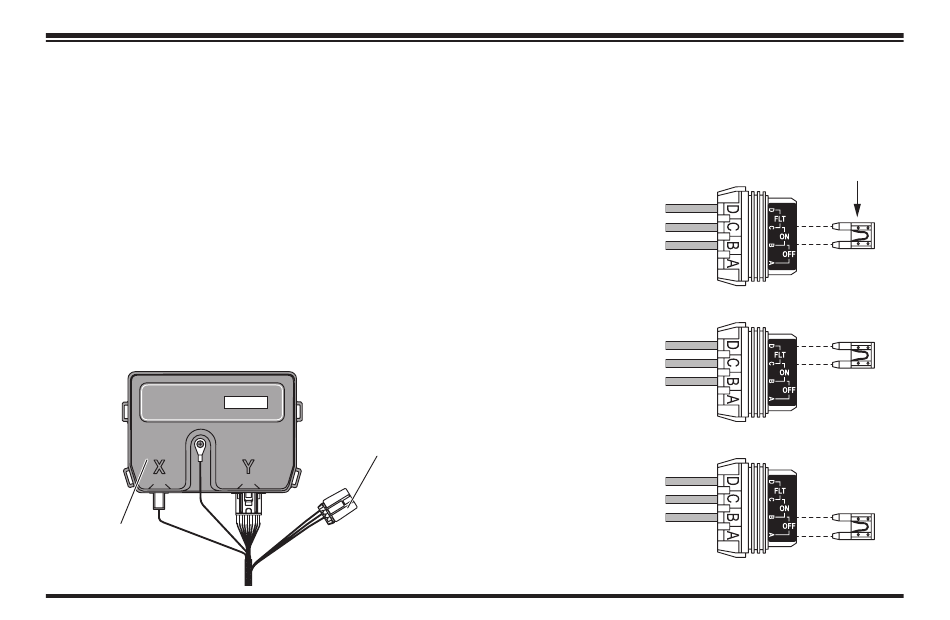

HEADLAMP
CONTROL MODULE
Headlamp
Control Module
Lit. No. 72446, Rev. 05
MAINTENANCE
Remove the jumper fuse from the fuse holder and
re‑insert it in the desired mode position as shown
below. Replace the fuse holder cover.
Default – ON:
Blade edge lights
illuminate when
plow has power.
FLT: Blade edge
lights illuminate
when blade is in
FLOAT mode.
Fuse Holder
and Cover
OFF: Blade edge
lights disabled.
87
Jumper
Fuse
