GETTING TO KNOW YOUR SNOWPLOW
The Insta‑Act hydraulic unit's angling gives you
®
full control of the snowplow from inside the cab.
Hydraulic rams hold the blade at a desired angle. In
XtremeV™, XV2™, and XLS™ blades, the rams
operate each wing independently or together as
a single unit. The XtremeV and XV2 blades are
raised in approximately 3 seconds and angled
side to side in approximately 2 seconds.

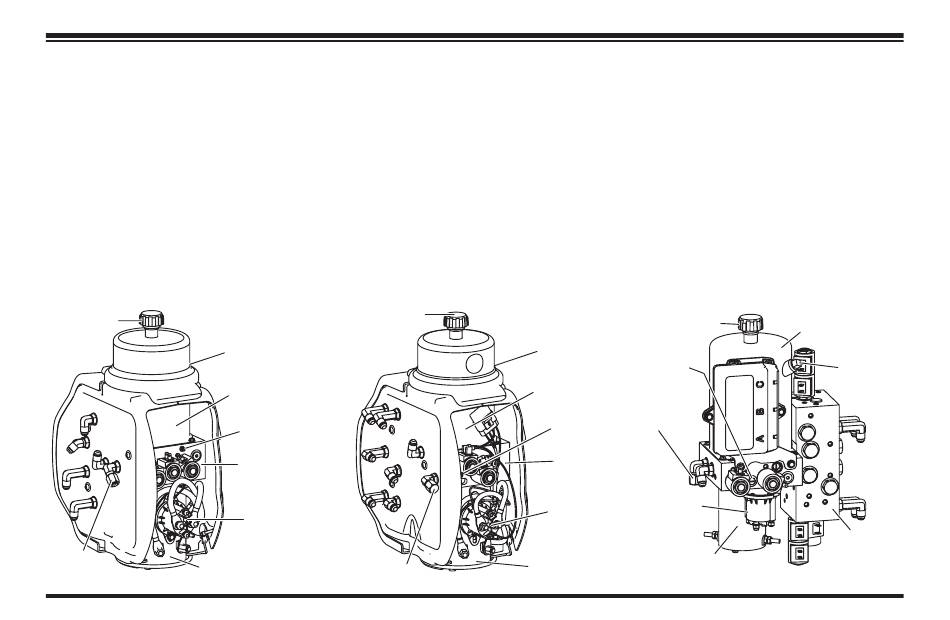

XtremeV Blades
Breather
Drain
Motor
Cap
Lit. No. 72446, Rev. 05
Breather
Fill
Plug
Reservoir
Quill
Valve
Manifold
Motor
Relay
Drain Cap
The XLS blade is raised in approximately 3 seconds
and angled side to side in approximately 2 seconds.
Each wing extends and retracts individually in
approximately 2 seconds. Both wings extend together
in 4 seconds and retract together in 3 seconds.
The EZ-V blade's double‑acting hydraulic rams
®
hold the wings at the desired angles. The wings
are raised in approximately 2 seconds and angled
side to side in approximately 2 seconds.
XLS Blades
Fill
Plug
Reservoir
Quill
Valve
Manifold
Motor
Relay
Motor
26
EZ-V Blades
Breather
Reservoir
Quill
Drain
Cap
Motor
Relay
Motor
