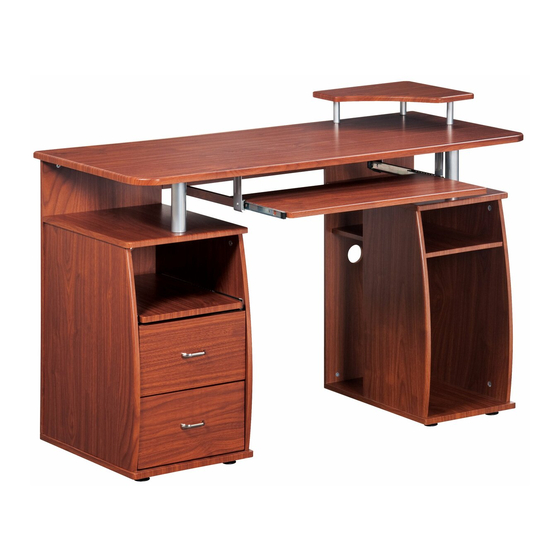

Techni Mobili RTA-8211 Assembly Instructions Manual
Hide thumbs
Also See for RTA-8211:
- Assembly instructions manual (15 pages) ,
- Assembly instructions manual (16 pages) ,
- Assembly instructions manual (17 pages)
Related Manuals for Techni Mobili RTA-8211
Summary of Contents for Techni Mobili RTA-8211

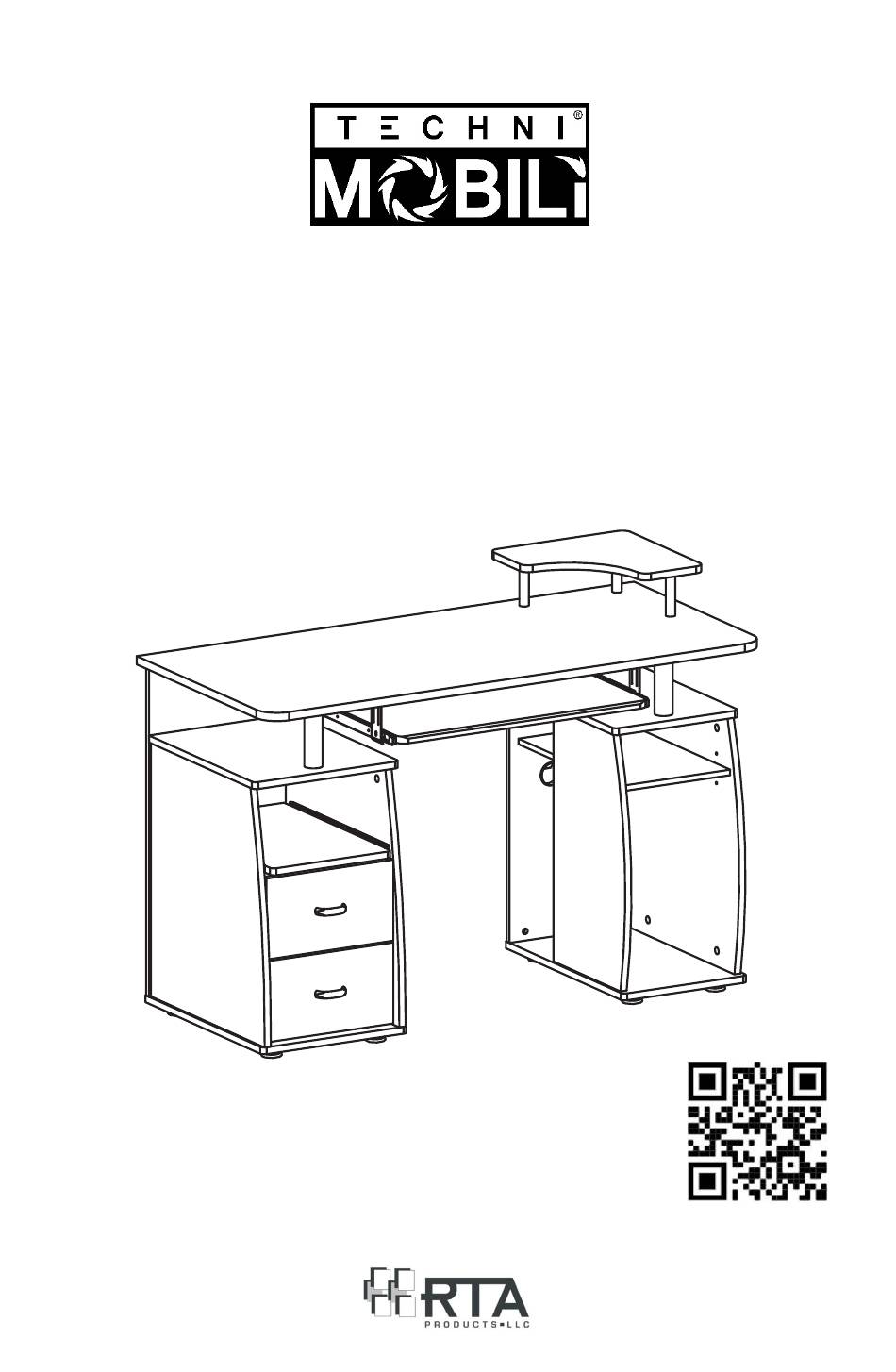

- Page 1 MODEL RTA-8211 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. Scan QR Code to view Full assembly video REV.062021-9...
- Page 2 RTA-8211 • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Scan QR Code to view full assembly and step video.
-
Page 3: Main Parts List
RTA-8211 MAIN PARTS LIST Drawer left panel Drawer right panel Drawer front panel Sliders for scanner (Black, lots of holes, not threaded) Drawer bottom Drawer back panel Handle Sliders for drawer panel Sets Flat: Go inside the unit “L” shape: Go on drawers... - Page 4 RTA-8211 Sliders for keyboard Keyboard panel Tabletop Top panel for panel CPU cabinet (Silver with threaded holes) Central back Thin support Base bracket Thick support Corner shelf panel tubes for for sliders tubes for corner shelf tabletop MAIN PARTS LAYOUT (FOR REFERENCE):...
- Page 5 RTA-8211 ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. This unit uses cam bolts and locks. The following explains how to use them.
- Page 6 RTA-8211 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...
-
Page 7: Assembly Steps
RTA-8211 ASSEMBLY STEPS STEP 1 • Attach the bolts L to the drawer front panel 3. Make sure the cam locks on panels 1 and 2 are aligned to receive • Hardware: the bolts, and attach the panels to panel 3. - Page 8 RTA-8211 STEP 3 • Grab all the 8 pieces of sliders 8 and set aside the 4 “Flat” pieces as they will be used until next step. Hardware: • Flip the drawer and attach the “L” shaped sliders with screws B,...
- Page 9 RTA-8211 STEP 5 Important: Make sure you use in this step the correct sliders 4 which are black, longer, and have more holes than sliders 22. Hardware: • Attach the sliders 4 to the top sets of holes on panels 9 and 10 with...
- Page 10 RTA-8211 STEP 8 • Assemble the back panel 12 to the bottom panel 13 with bolts L as explained in page 4. Hardware: • Then secure the panel 12 to the side panels 9 and 10 with screws K. • Finally attach the grommet N to the back panel 12.
- Page 11 P.10 RTA-8211 P.10 STEP 11 Assemble the left panel 16 and the right panel 18 to the bottom panel 20 with Hardware: bolts A as explained in page 4. M6x40 The back of panel 20 will have 2 free holes for next step...
- Page 12 P.11 RTA-8211 P.11 STEP 14 Assemble the back panel 27 to the left panel 12 and the right panel 19 with bolts L as explained in page 4. Hardware: M6x25 Cam locks alignment Scan QR Code Scan QR Code to view this step...
- Page 13 P.12 RTA-8211 P.12 STEP 17 Assemble the support tubes 26 to the tabletop 24 with screws E. Hardware: ST4x14 Scan QR Code to view this step STEP 18 • Place the plastic washers I over the center of the holes on panels 14 and 21.
- Page 14 P.13 RTA-8211 P.13 STEP 19 Slide out the sliders 22 and place the keyboard panel 23 over the tabs making the pre-drilled holes match, then secure the panel with screws Hardware: E from underneath. ST4x14 Scan QR Code to view...
- Page 15 P.14 RTA-8211 P.14 STEP 22 • Insert the drawers into the left cabinet starting with the bottom one, then the top drawer. The top drawer might need to be inserted at an Hardware: angle with its front facing down. •...
- Page 16 P.15 RTA-8211 P.15 AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING CARE AND MAINTENANCE WARNINGS: WEIGHT LIMITS 30 Lbs. (13.6 Kg) 22 Lbs. 80 Lbs. (10 Kg) (36.3 Kg) 30 Lbs. (13.6 Kg) 30 Lbs. (13.6 Kg) • Do not exceed the indicated weight limits.
- Page 17 P.16 RTA-8211 P.16 TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY TV Stand/Entertainment Center: 2 YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 18 P.17 RTA-8211 P.17 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
